Front Wheel Speed Sensor: Removal

  1. Remove the bolts (2) attaching the flange to the steering knuckle.
  2. Remove the wheel speed sensor (1) from the steering knuckle.
  3. Disconnect the wheel speed/brake wear indicator wire harness connector (2) from the body mount connector (1).

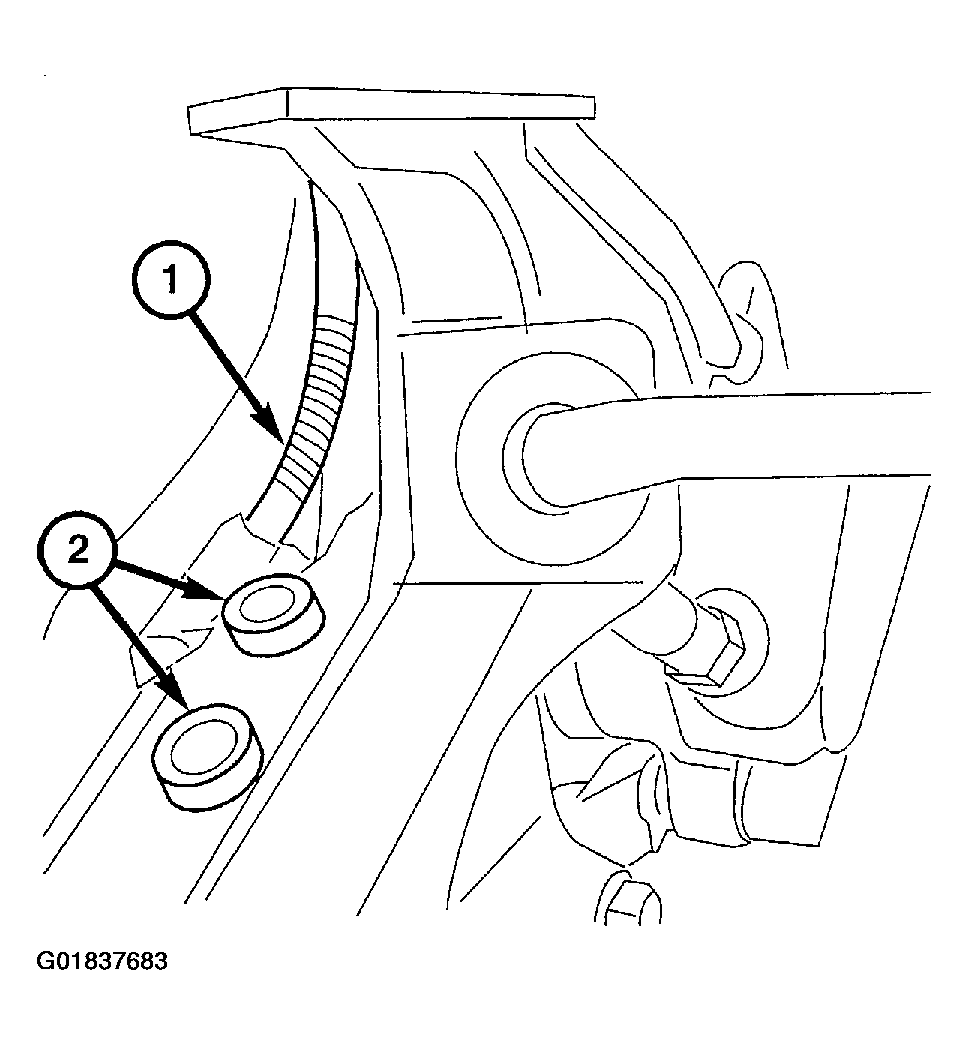

    Fig 1: Removing Wheel Speed Sensor
    G01837683Courtesy of DAIMLERCHRYSLER CORP.

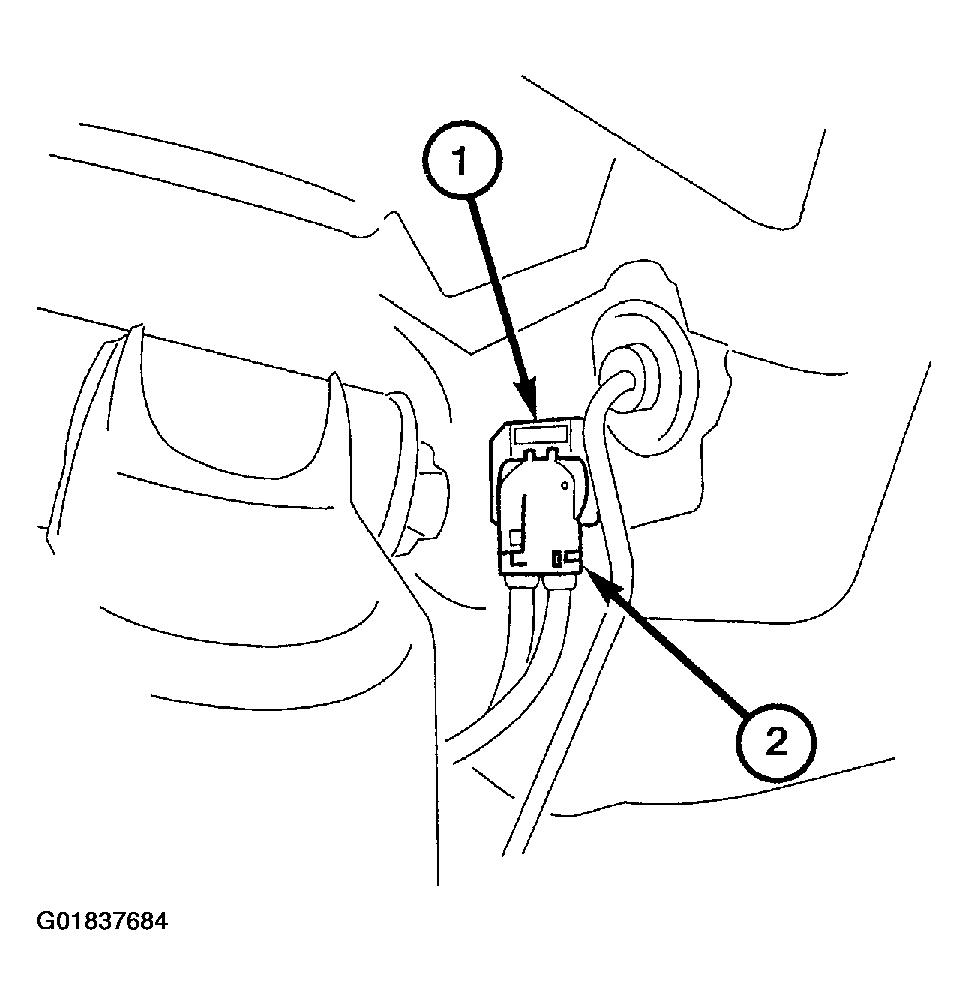

    Fig 2: Disconnecting Wheel Speed/Brake Wear Indicator Wire Harness
    G01837684Courtesy of DAIMLERCHRYSLER CORP.
