Rear Wheel Speed Sensor: Installation

  1. Connect the wheel speed sensor wire harness connector (1).

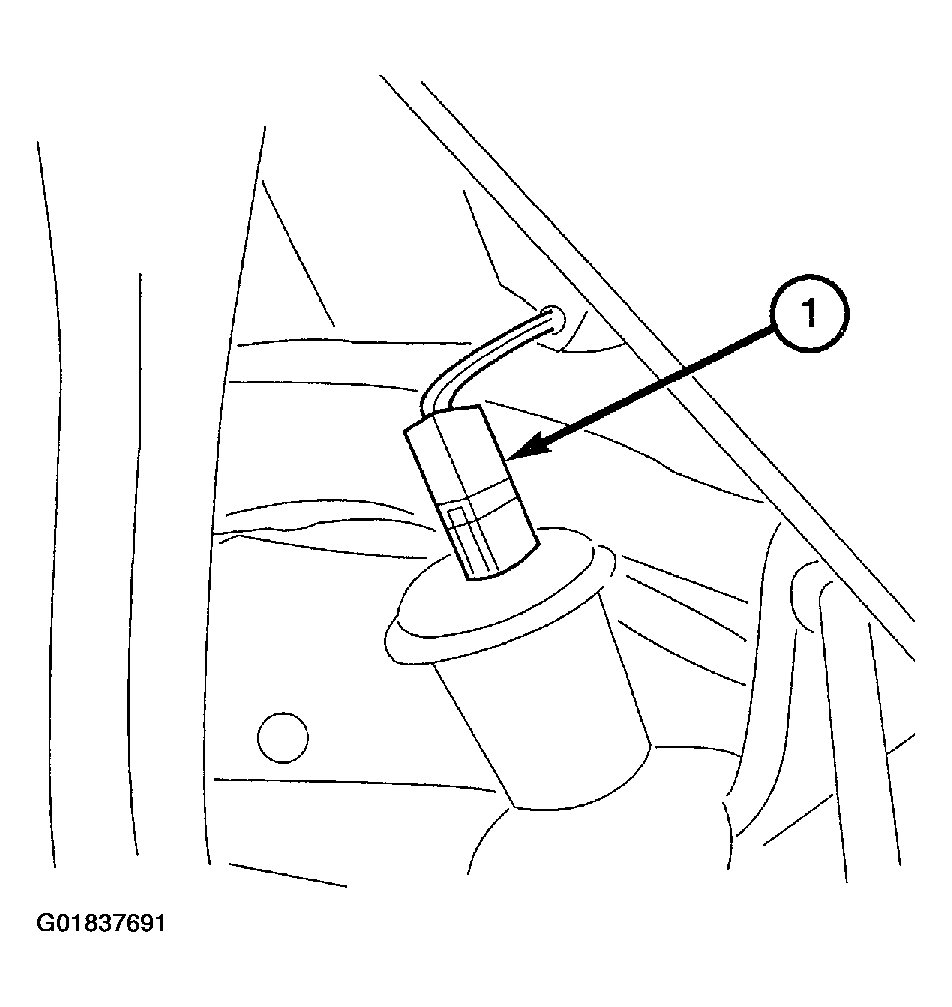

    Fig 1: Connecting Wheel Speed Sensor Wire Harness Connector
    G01837691Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the rubber grommet (1) to the body and then hook the wheel speed sensor wire harness to the mount (2).

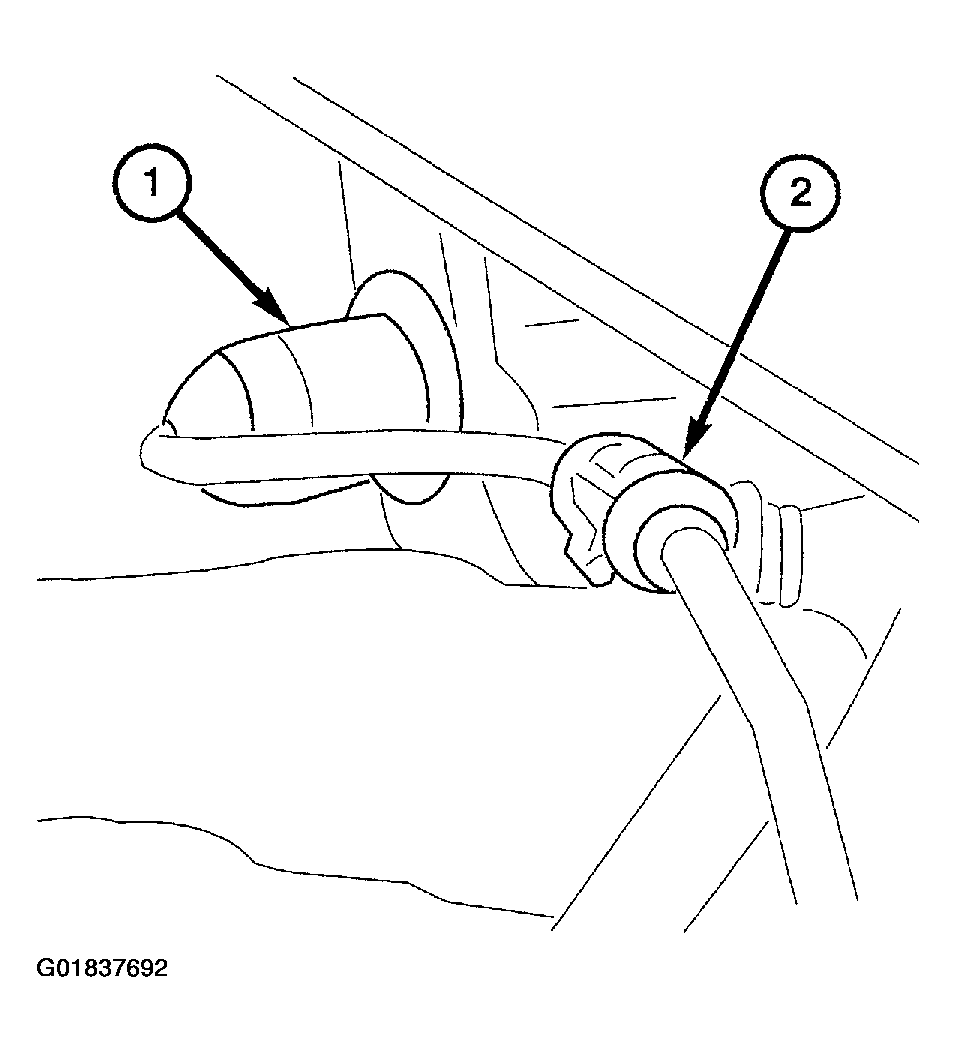

    Fig 2: Hooking Wheel Speed Sensor Wire Harness To Mount
    G01837692Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the wheel sped sensor (2) to the knuckle.
  4. Install the bolt (1) attaching the wheel speed sensor to the knuckle. Tighten to 12 N.m (106 in. lbs.).

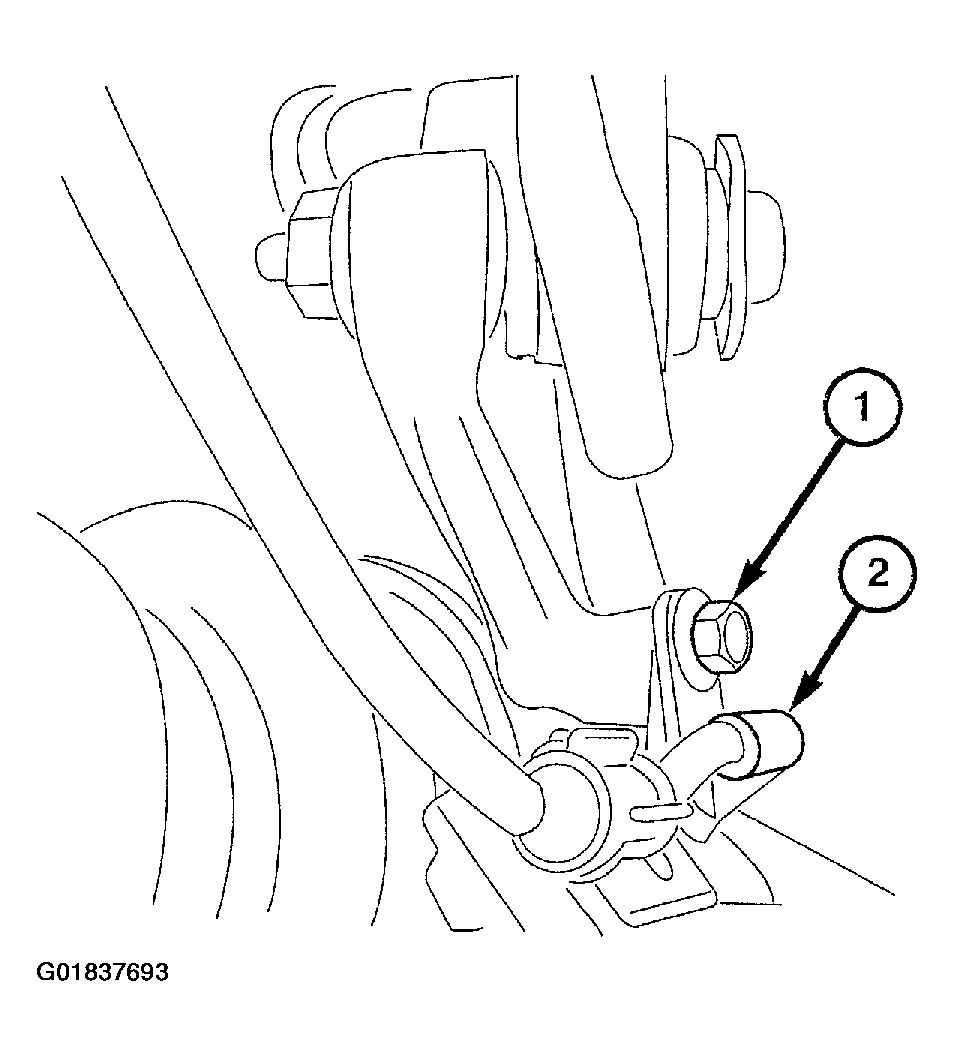

    Fig 3: Installing Wheel Speed Sensor
    G01837693Courtesy of DAIMLERCHRYSLER CORP.
