Steering Angle Sensor: Description

A steering angle sensor is used to sense the steering angle specified by the driver's actions. The steering angle sensor is part of the clock spring assembly within the steering column.

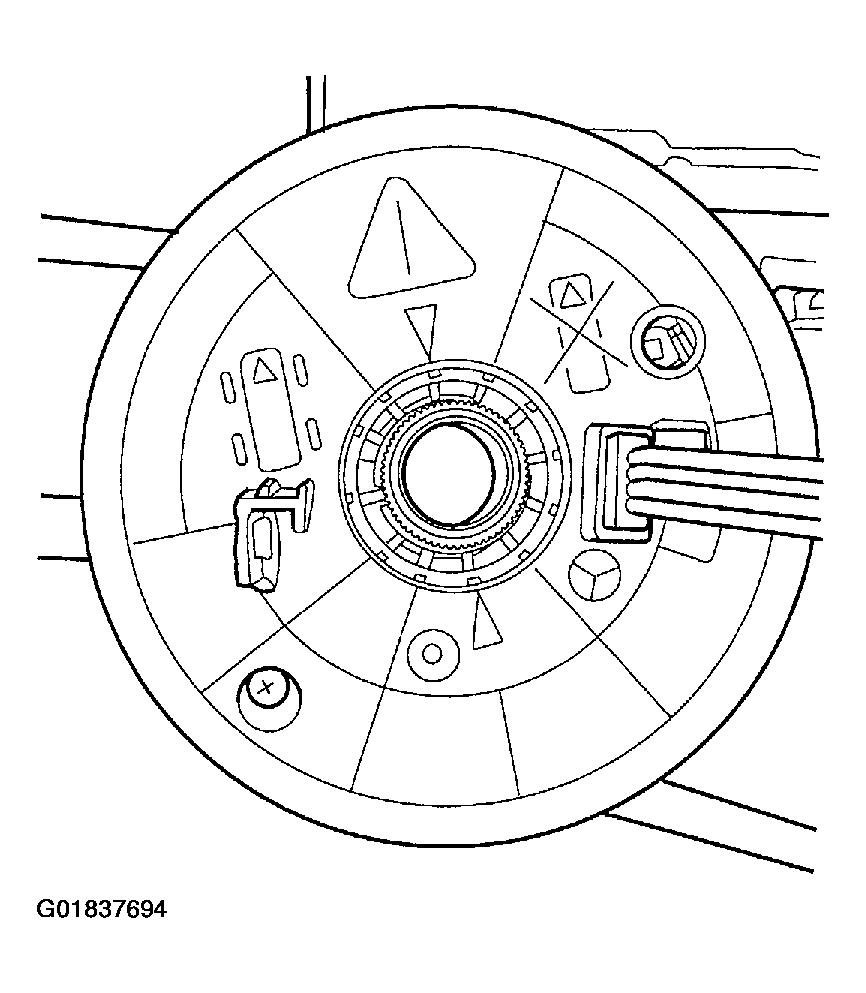

Fig 1: Identifying Steering Angle Sensor

Courtesy of DAIMLERCHRYSLER CORP.
