Clutch Interlock Switch Connector End View

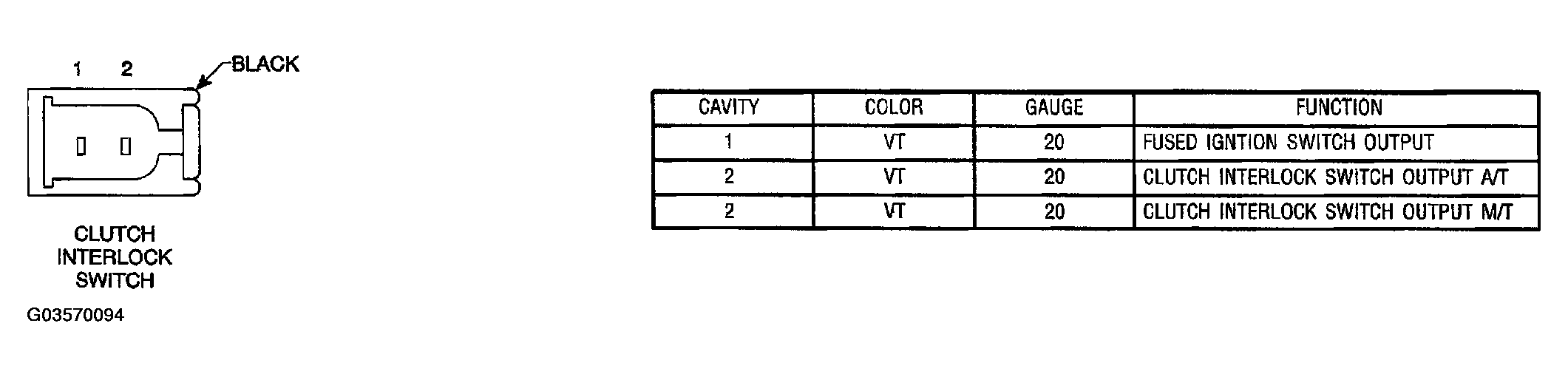

Fig 1: Clutch Interlock Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
