A/C Pressure Sensor Connector End View

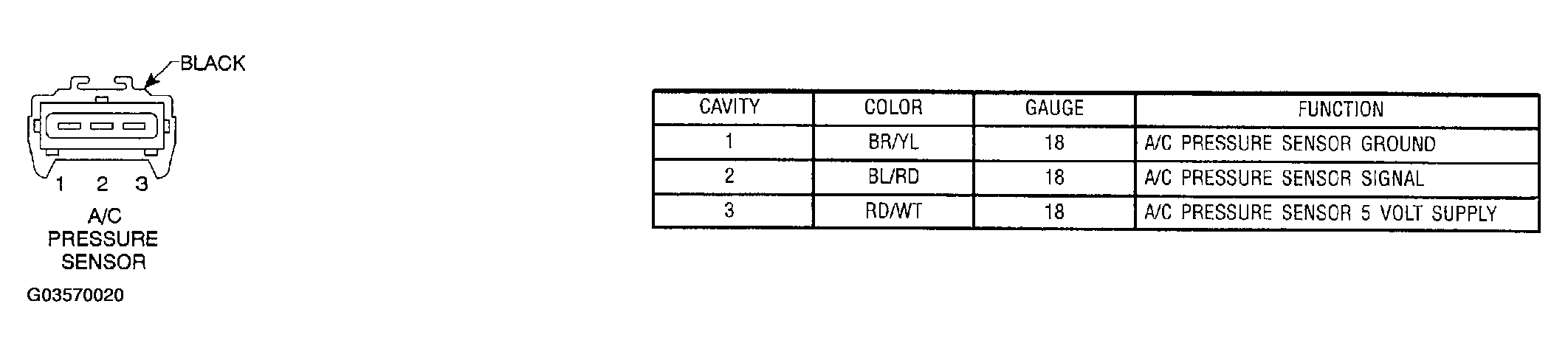

Fig 1: A/C Pressure Sensor Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
