Central Locking Pump Module/ Security System Module Connector End View (C3)

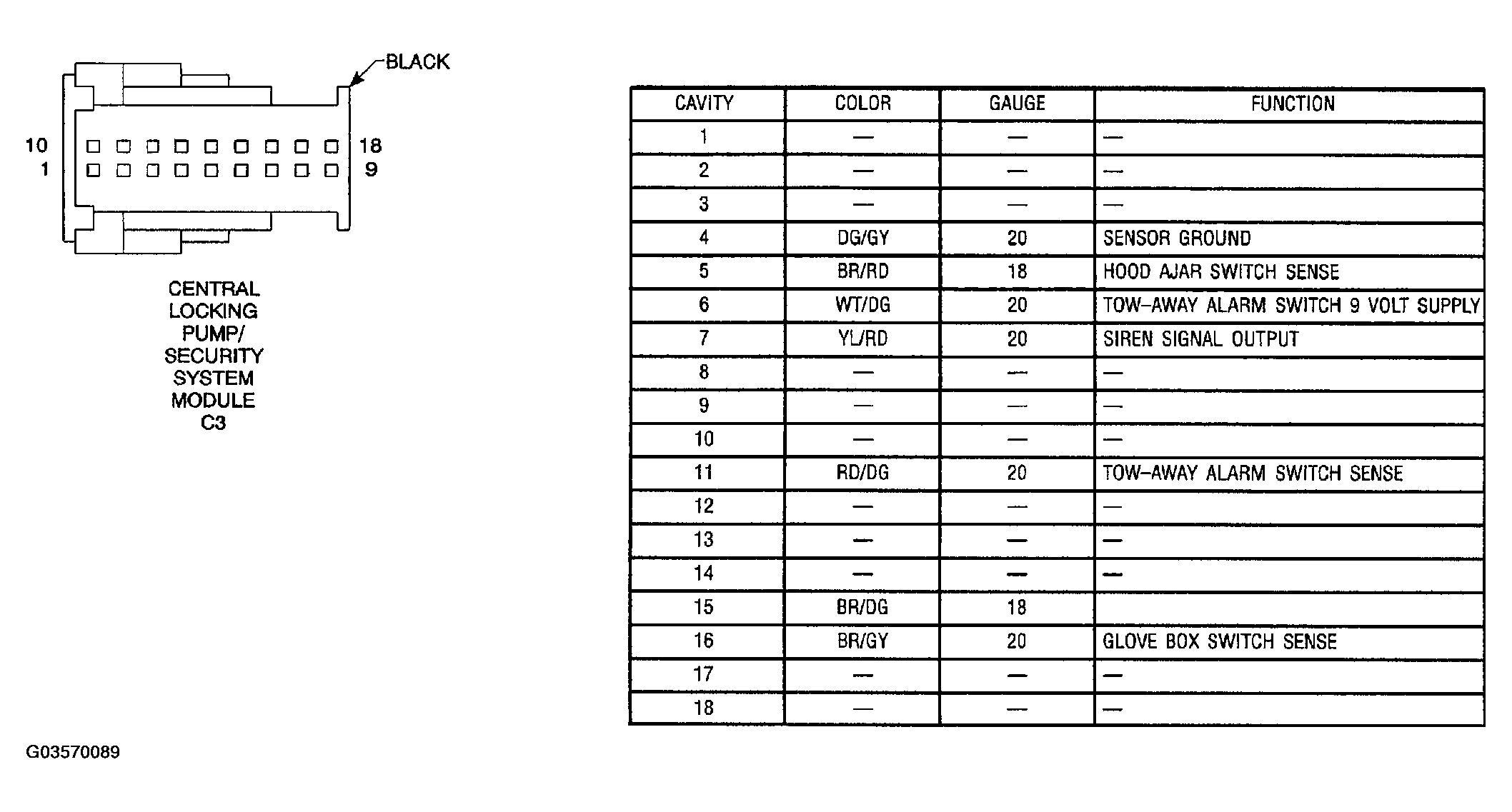

Fig 1: Central Locking Pump Module/ Security System Module Connector End View (C3)
G03570089Courtesy of DAIMLERCHRYSLER CORP.
