Illumination Control Module Connector End View (D)

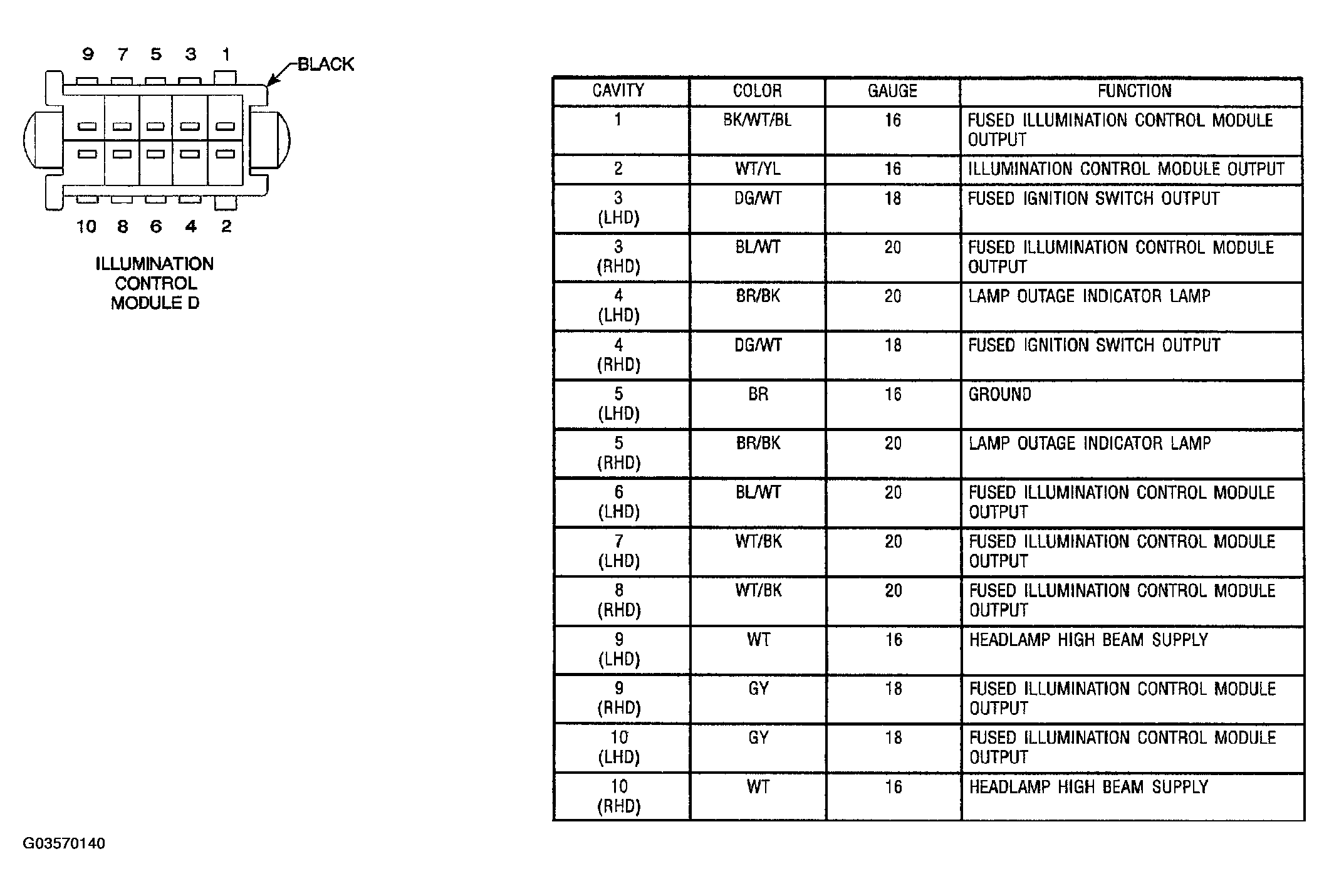

Fig 1: Illumination Control Module Connector End View (D)
Courtesy of DAIMLERCHRYSLER CORP.
