Relay Control Module Connector End View (A)

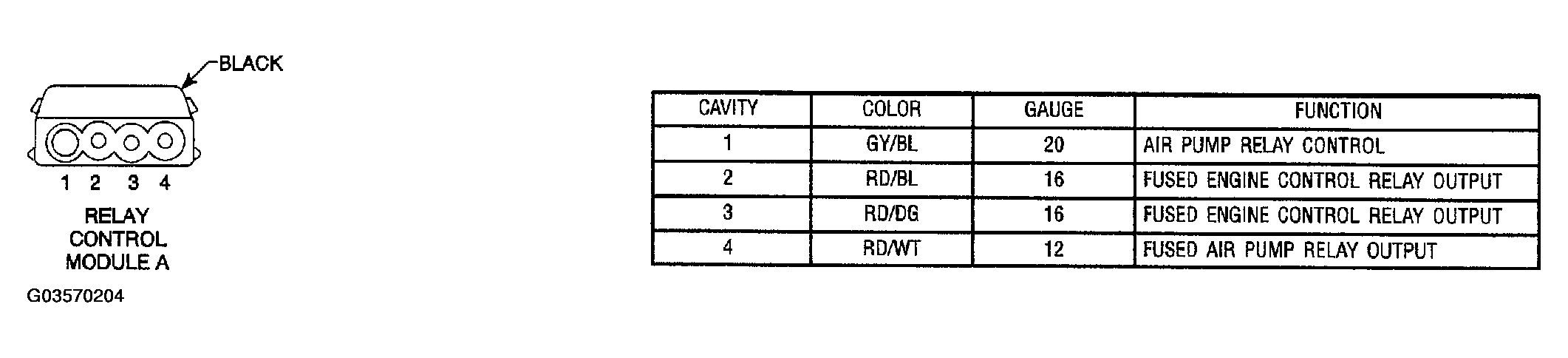

Fig 1: Relay Control Module Connector End View (A)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
