Repair and Diagnosis: Transmission: Clutch: Flywheel: Removal

Remove the clutch. See CLUTCH .
Install Special Tool 9102 (1) Flywheel. Locking Tool.

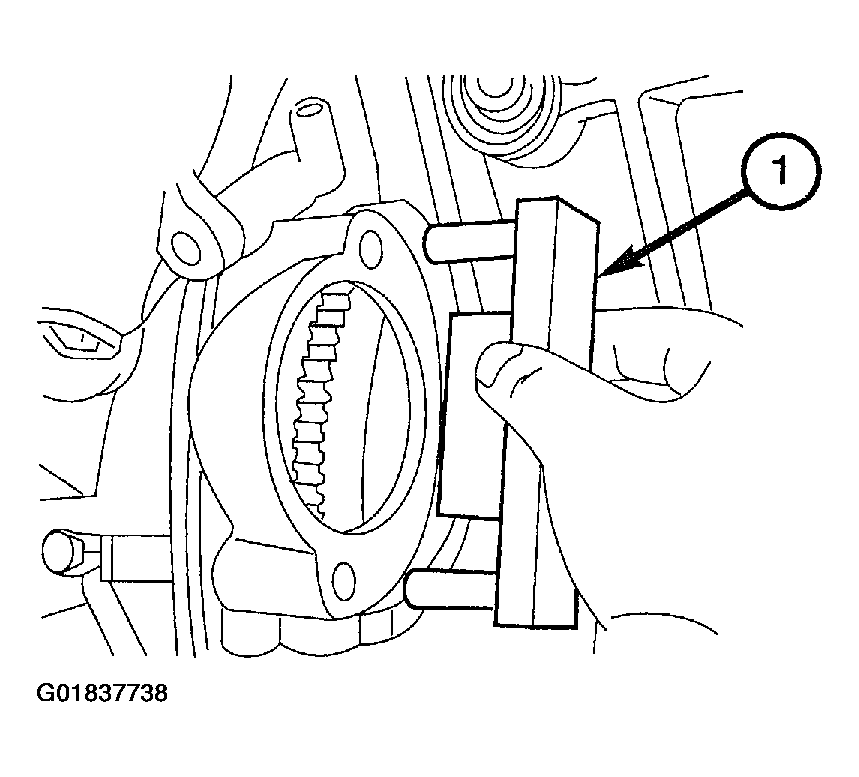

Fig 1: Installing Special Tool 9102 (Flywheel Locking Tool)
Courtesy of DAIMLERCHRYSLER CORP.
Remove and discard the flywheel bolts (1).

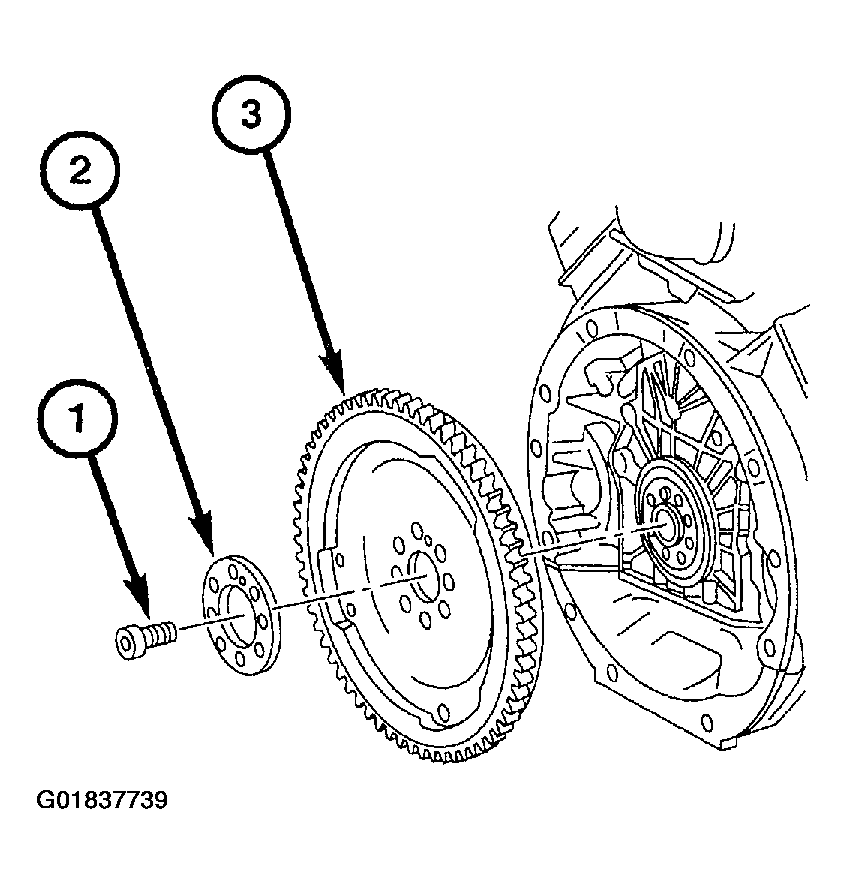

Fig 2: Removing Flywheel Bolts, Spacer & Flywheel
Courtesy of DAIMLERCHRYSLER CORP.
Remove the flywheel spacer (2) and the flywheel (3).
Inspect the flywheel for wear or cracking.
Inspect the starter ring gear for wear and missing teeth.
