Drive/Propeller Shaft

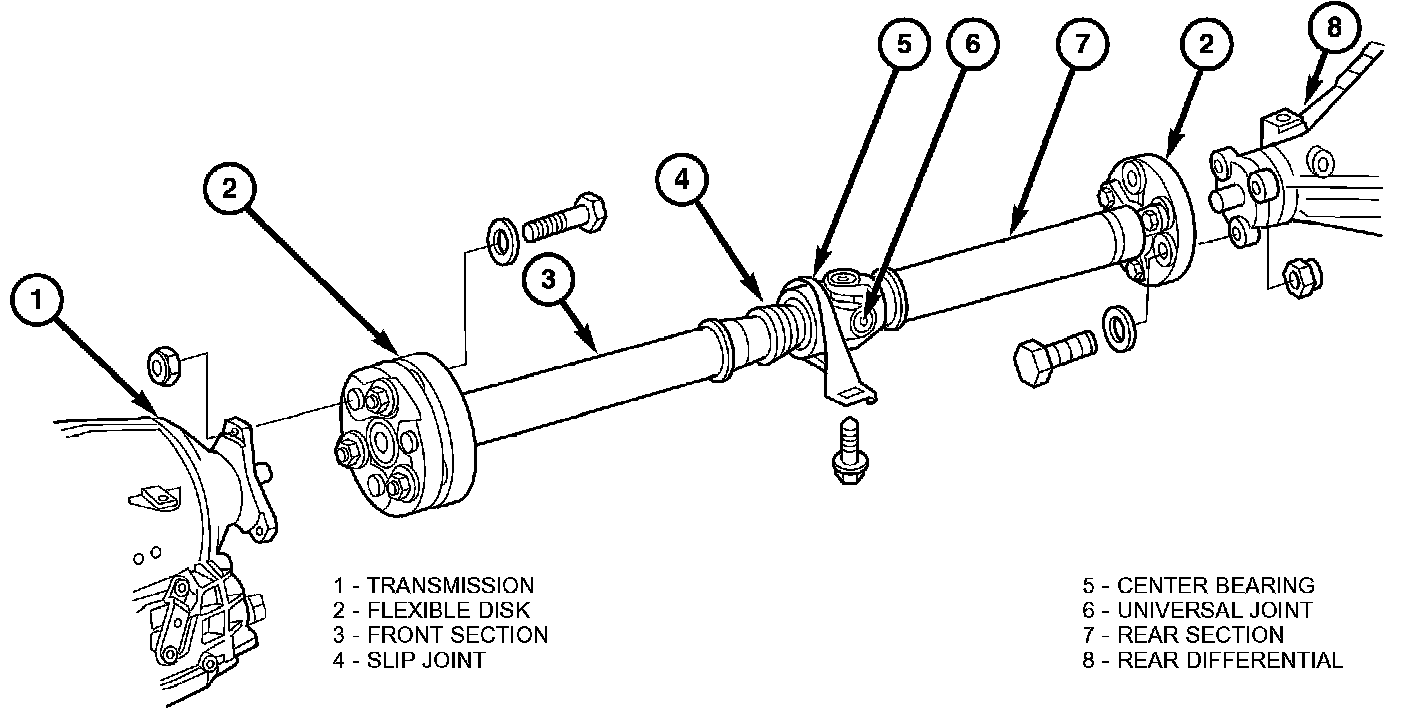

PROPELLER SHAFT

DESCRIPTION





A two-piece driveshaft links the transmission and rear axle through two flexible disks and one universal joint to minimize driveline vibrations.
