Switchover Valve

REMOVAL

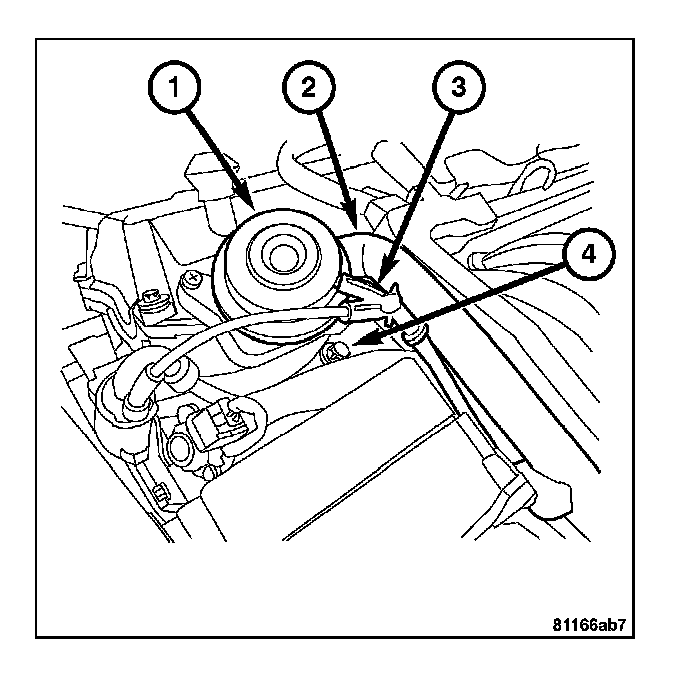

1. Disconnect the negative battery cable.
2. Remove the air cleaner housing.





3. Disconnect the vacuum line (3).
4. Disconnect the air pump switchover tube (2).
5. Remove the air pump switchover valve retaining bolt (4).
6. Remove the air pump switchover valve (1) discard the old gasket.

INSTALLATION

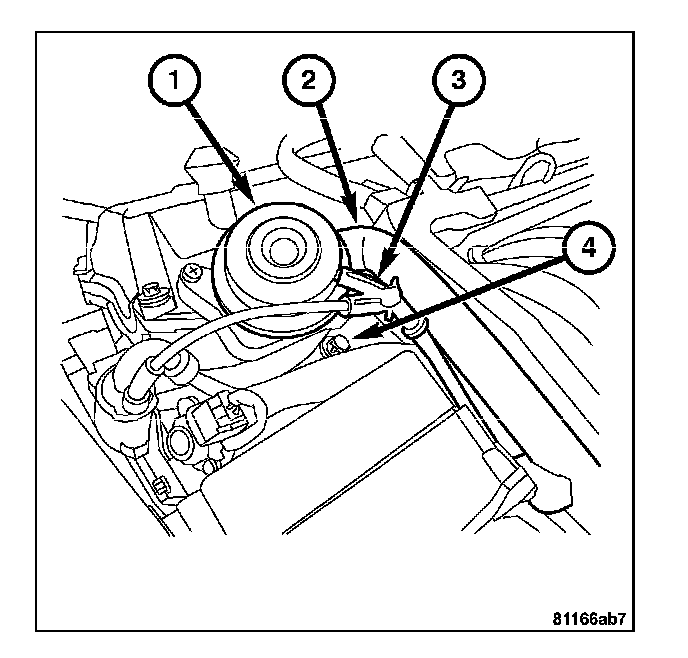

1. Position the new gasket between intake manifold and air pump switchover valve (1).
2. Install the retaining bolt (4) and tighten to 20 N.m (177 in. lbs.).
3. Connect the vacuum line (3).
4. Connect the air pump switchover tube (2).
5. Install the air cleaner housing.
6. Connect the negative battery cable.
