Air Temperature Sensor ( Ambient / Intake ): Service and Repair

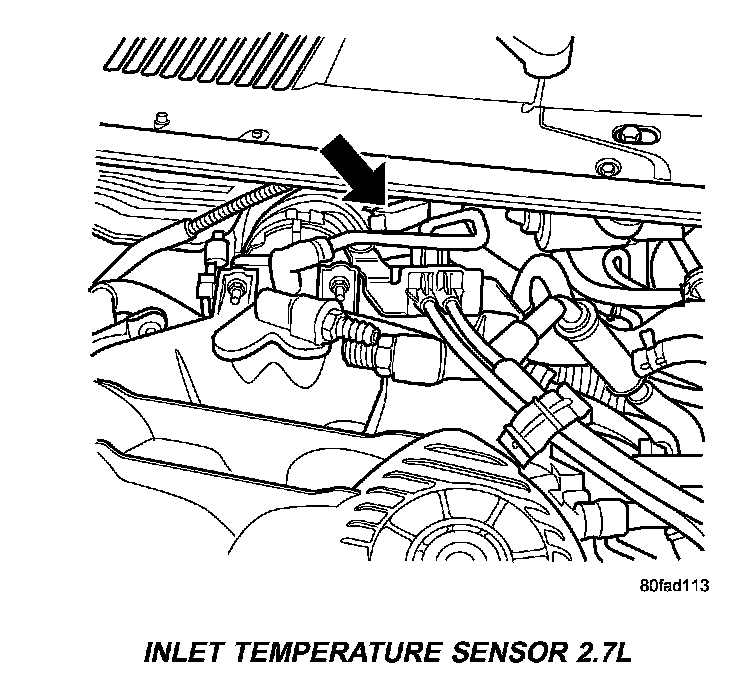

Inlet Temperature Sensor 2.7L:

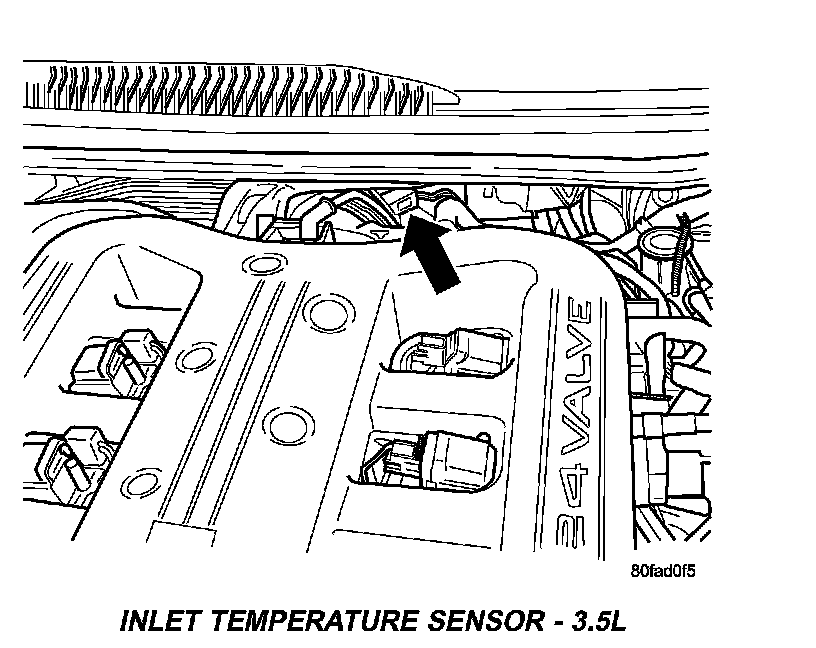

Inlet Temperature Sensor 3.5L:

REMOVAL
1. Remove the negative battery cable.
2. Disconnect electrical connector from sensor.
3. Remove sensor from clean air hose to throttle body.

INSTALLATION
1. Install sensor into clean air hose to throttle body.
2. Attach electrical connector to sensor.
3. Install the negative battery cable.
