Instrument Panel End Cap: Installation
- Pull body mounted weatherstrip form fence { along the side of the instrument panel.

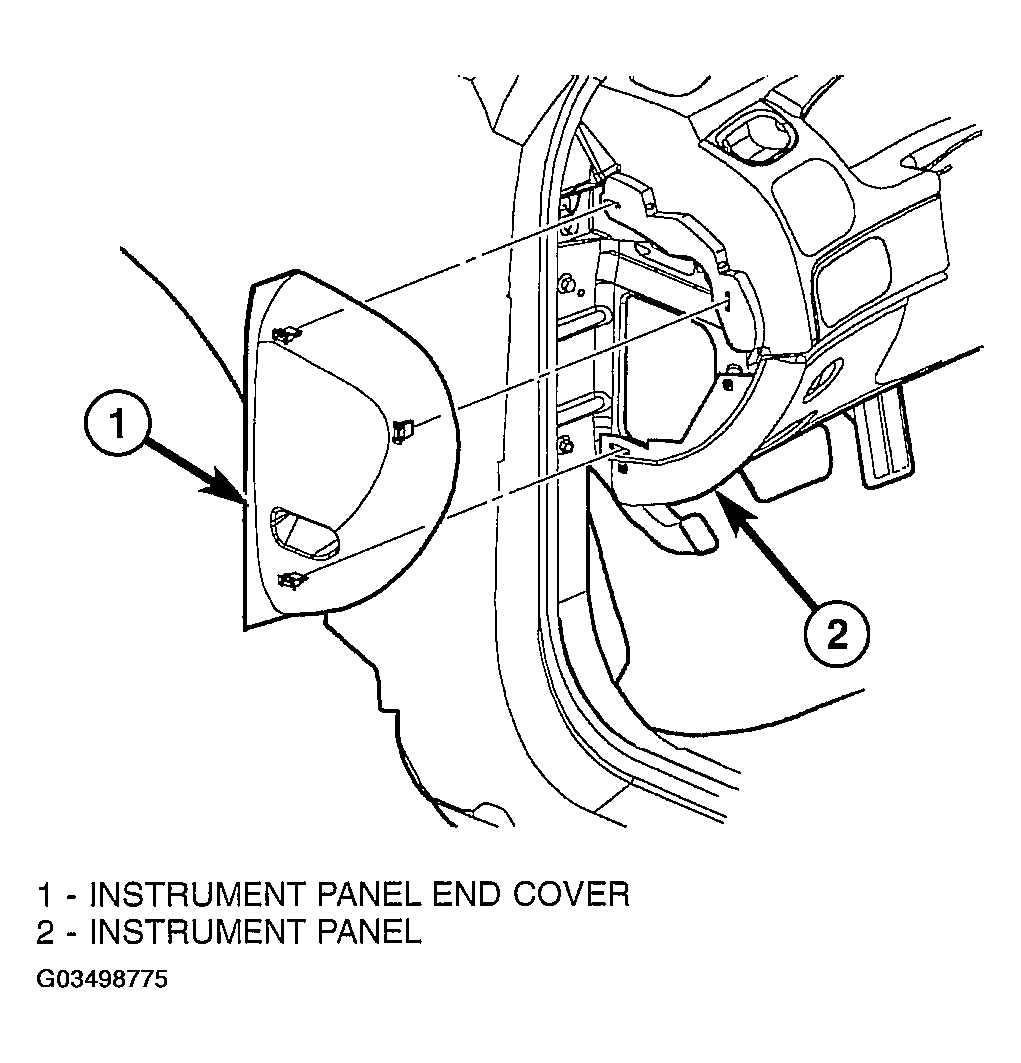

- Align the end cap with the retaining slots in instrument panel and firmly' snap into place (Figure ).
- Engage weatherstrip along the header and down the A-pillar.
- Verify weatherstrip sealing.
- Close door.
