Valve Body: Notes

Disconnect the TRS wiring connector. The solenoid wiring connector can remain attached to the case.
Disconnect the shift cable from the shift lever (at the transaxle).
Move the shift lever clockwise as far as it will go. This should be one position past the "L" position. Then remove the shift lever.
Remove transaxle pan bolts. See Fig 1 .
Remove transaxle oil pan. See Fig 2 .

CAUTION: The 42LE transaxle oil filter is not interchangeable with the 41TE transaxle filter. Installation of a 41TE oil filter in a 42LE may cause transaxle damage.

Remove oil filter from valve body. It is held in place by two clips. See Fig 3 .
Remove valve body-to-case bolts. See Fig 4 .

CAUTION: The overdrive and underdrive accumulators and springs may fall out when removing the valve body. See Fig 5 and Fig 6 .

Carefully remove valve body assembly from transaxle. See Fig 7 .

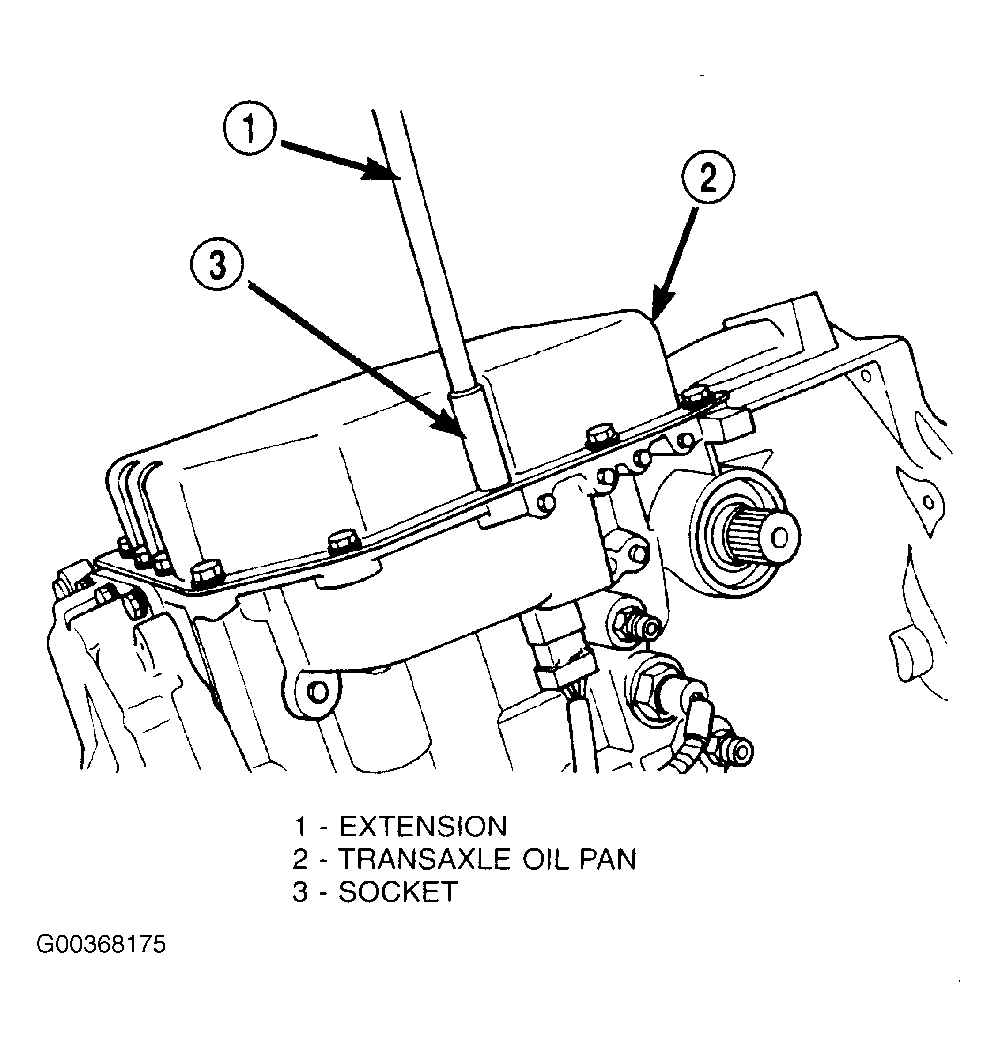

Fig 1: Removing Transaxle Oil Pan Bolts

G00368175

Courtesy of CHRYSLER CORP.

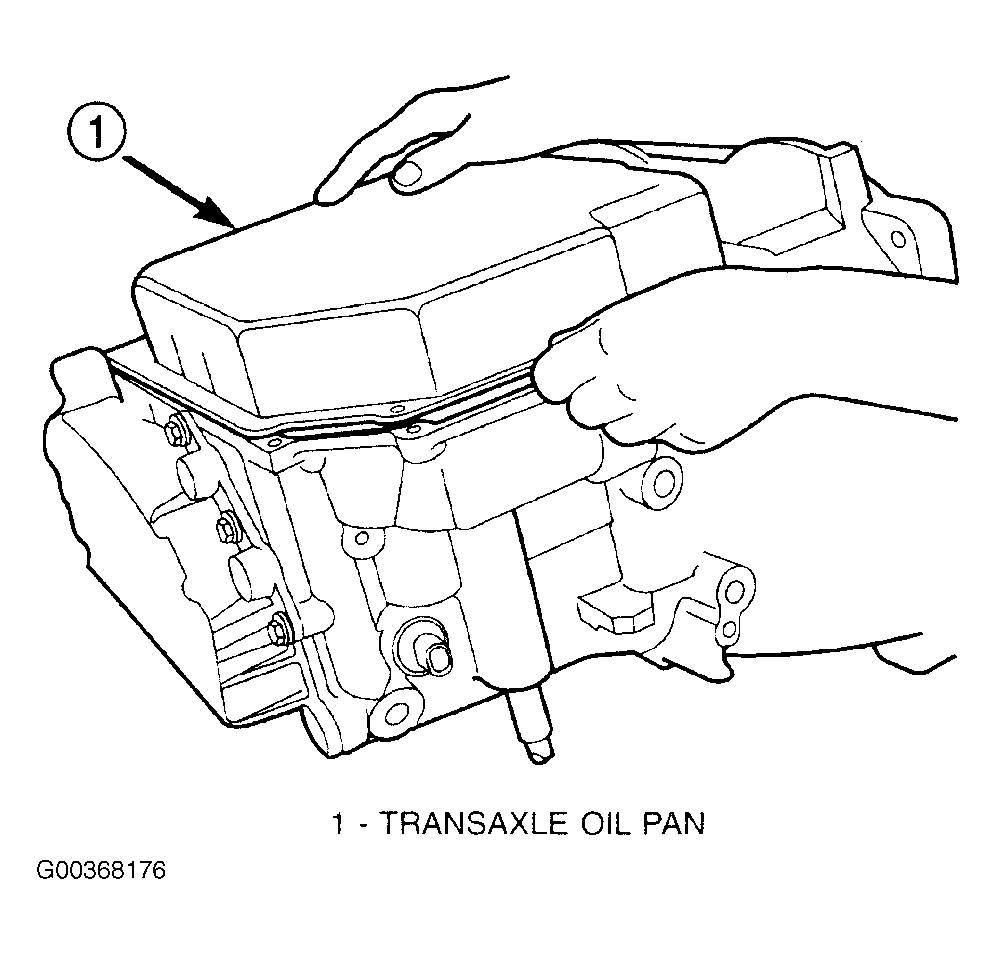

Fig 2: Removing Transaxle Oil Pan

G00368176

Courtesy of CHRYSLER CORP.

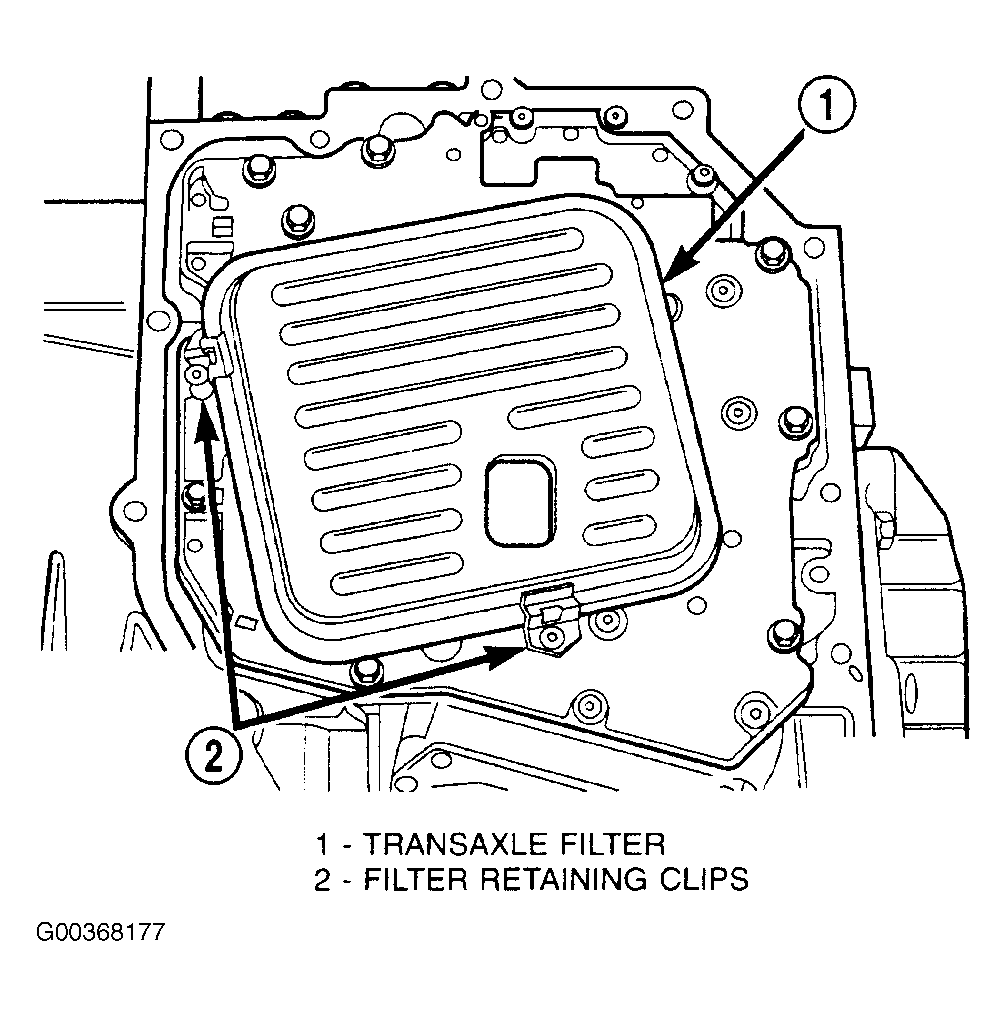

Fig 3: Removing Transaxle Oil Filter

G00368177

Courtesy of CHRYSLER CORP.

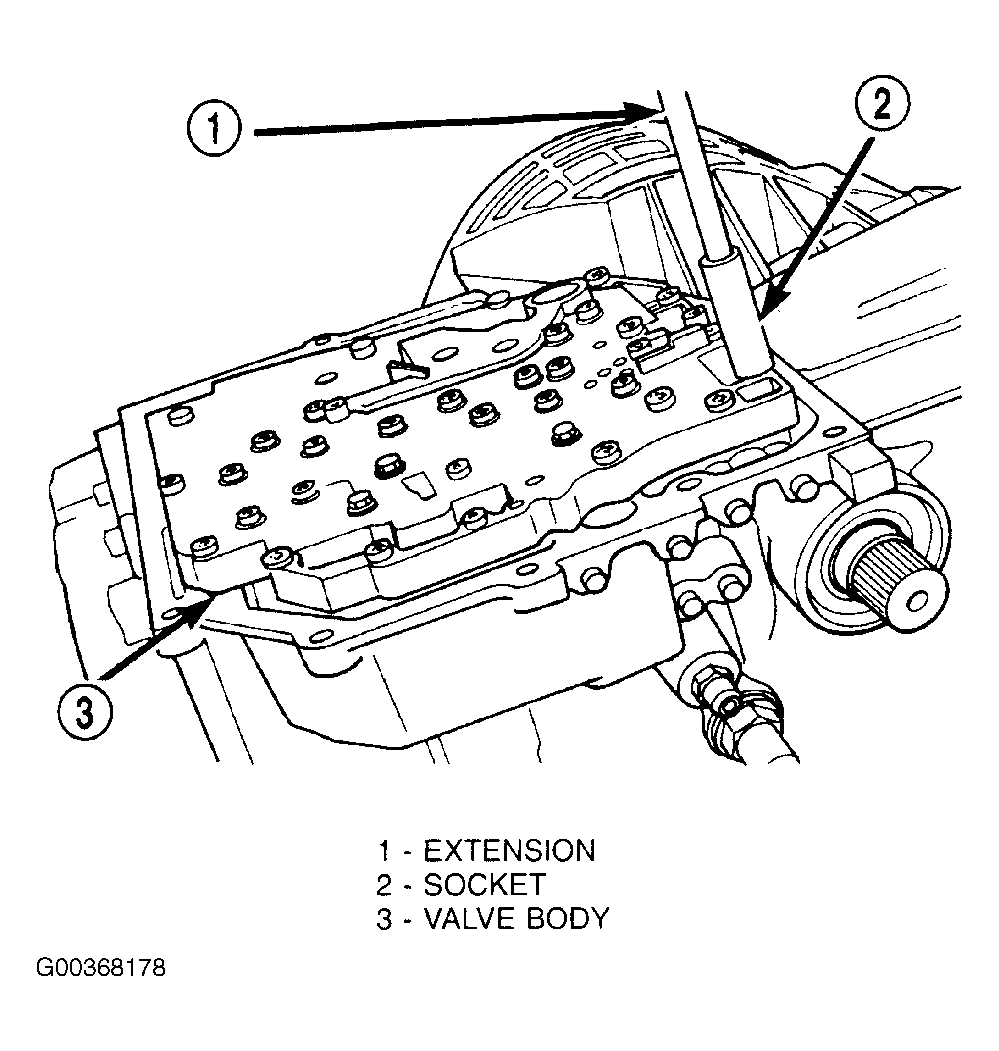

Fig 4: Removing Valve Body Bolts

G00368178

Courtesy of CHRYSLER CORP.

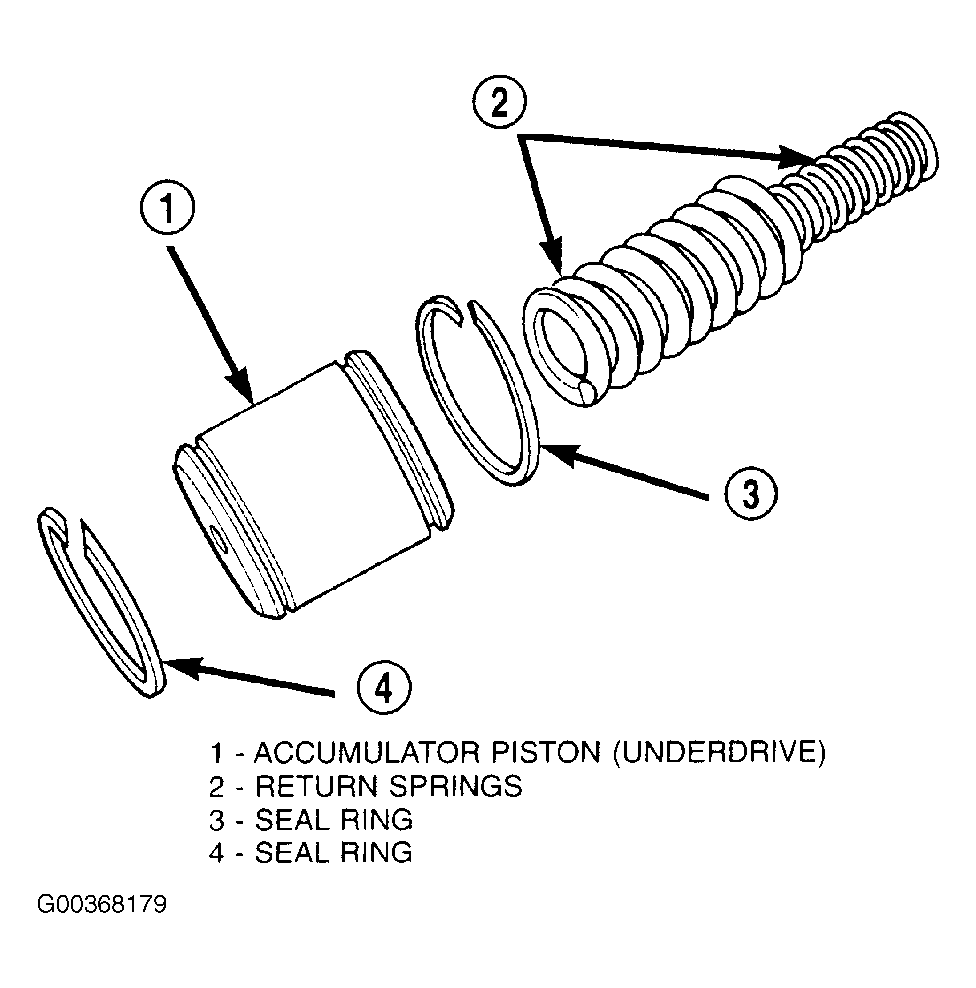

Fig 5: Identifying Accumulator Assembly

G00368179

Courtesy of CHRYSLER CORP.

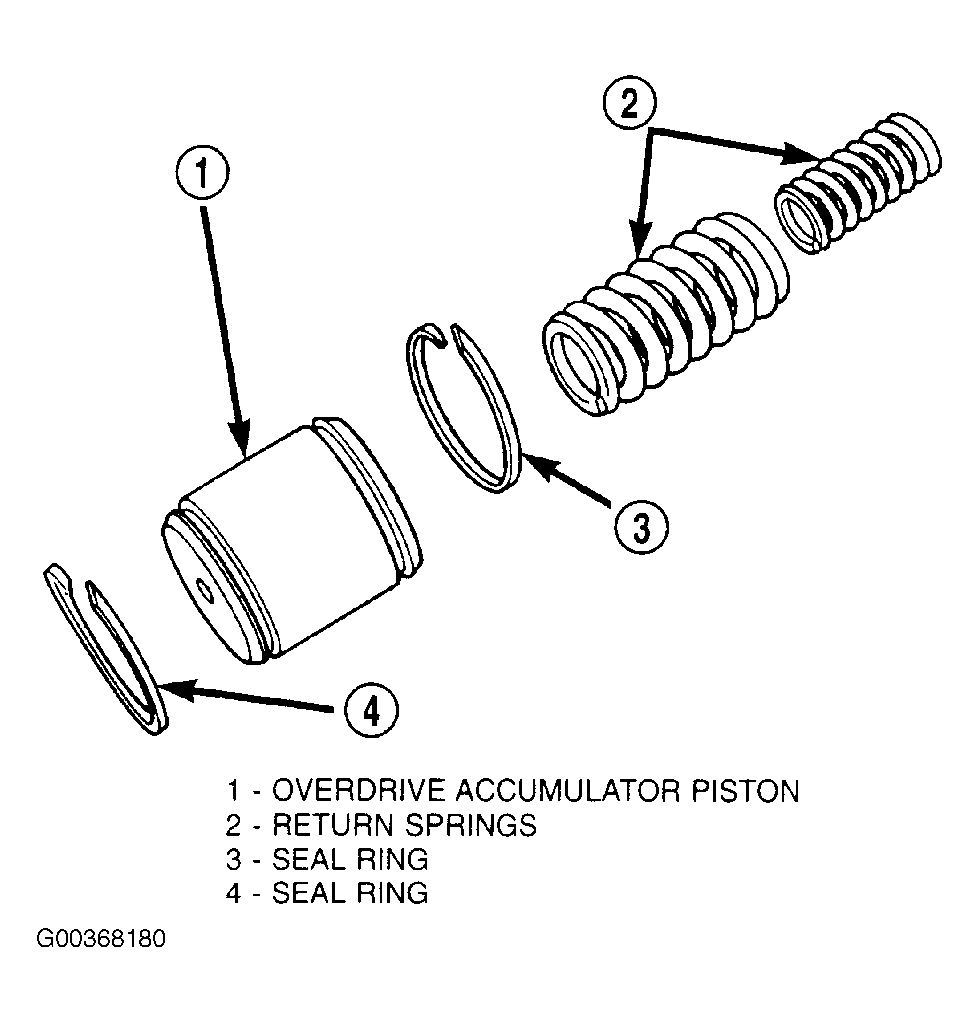

Fig 6: Identifying Override Accumulator & Springs

G00368180

Courtesy of CHRYSLER CORP.

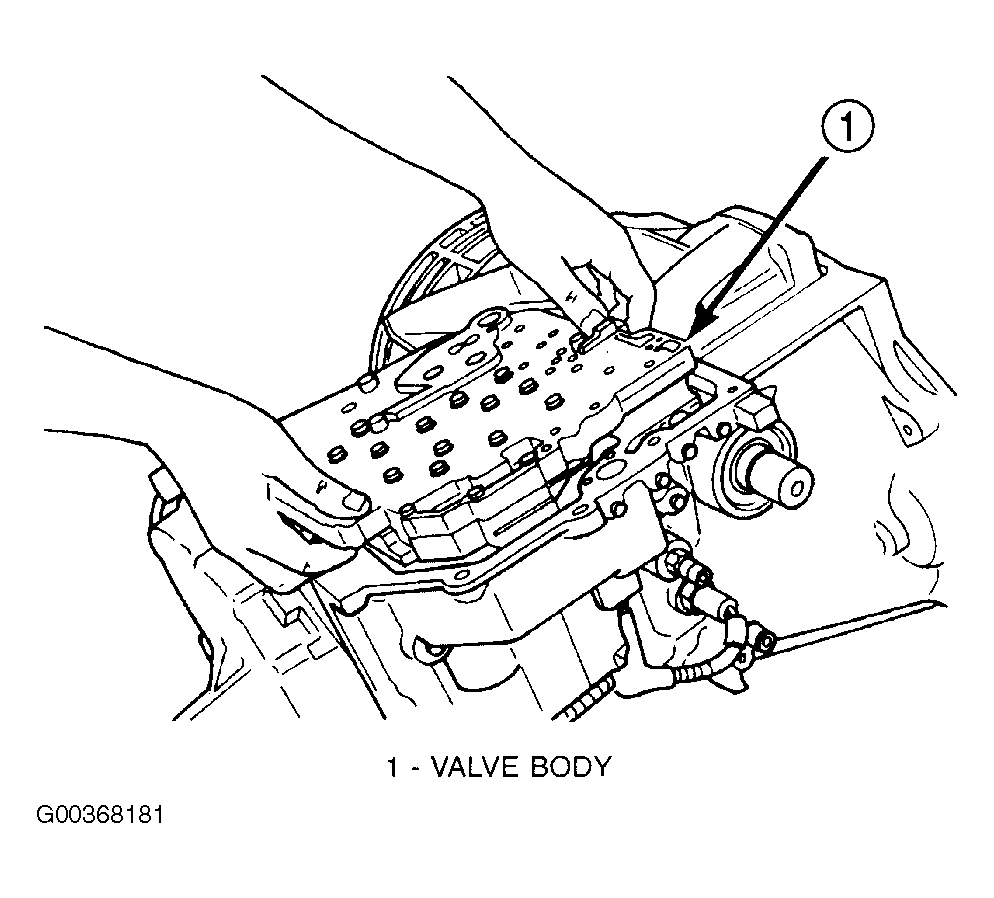

Fig 7: Removing Valve Body From Transaxle

G00368181

Courtesy of CHRYSLER CORP.
