Connector PINOUTS

Fig 1: Identifying A/C Compressor Clutch - Black 2 Way Connector Pinouts

G03548693

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Identifying A/C Pressure Transducer - Gray 4 Way Connector Pinouts

G03548694

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Identifying Airbag Control Module (Orc) - Yellow/Red 23 Way Connector Pinouts

G03548695

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Identifying Ambient Temperature Sensor - Black 2 Way Connector Pinouts

G03548696

Courtesy of DAIMLERCHRYSLER CORP.

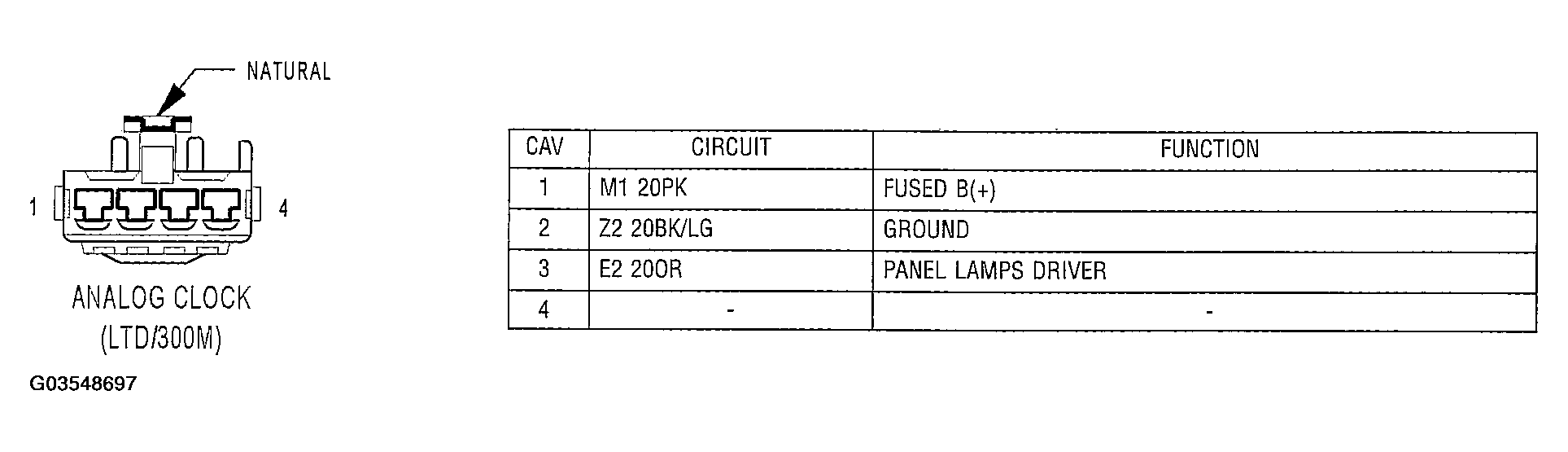

Fig 5: Identifying Analog Clock (LTD/300M) - Natural 4 Way Connector Pinouts

G03548697

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Identifying Automatic Temperature Control Head - Black 12 Way Connector Pinouts

G03548698

Courtesy of DAIMLERCHRYSLER CORP.

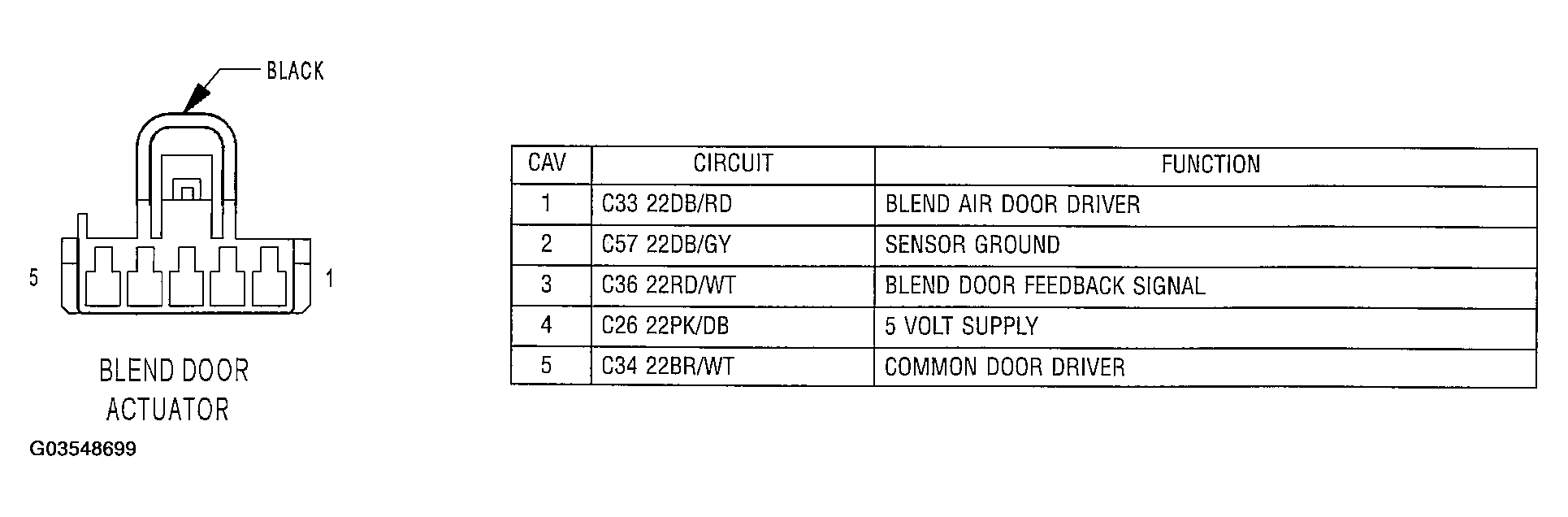

Fig 7: Identifying Blend Door Actuator - Black 5 Way Connector Pinouts

G03548699

Courtesy of DAIMLERCHRYSLER CORP.

Fig 8: Identifying Blower Motor Power Module (ATC) - Black 4 Way Connector Pinouts

G03548700

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Identifying Blower Motor Resistor Block - Black 6 Way Connector Pinouts

G03548701

Courtesy of DAIMLERCHRYSLER CORP.

Fig 10: Identifying Body Control Module C1 - Gray 14 Way Connector Pinouts

G03548702

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Identifying Body Control Module C2 - Black 24 Way Connector Pinouts

G03548703

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: Identifying Body Control Module C3 - Natural 12 Way Connector Pinouts

G03548704

Courtesy of DAIMLERCHRYSLER CORP.

Fig 13: Identifying Body Control Module C4 - Blue 16 Way Connector Pinouts

G03548705

Courtesy of DAIMLERCHRYSLER CORP.

Fig 14: Identifying Brake Fluid Level Switch - Black 2 Way Connector Pinouts

G03548706

Courtesy of DAIMLERCHRYSLER CORP.

Fig 15: Identifying C202 (MTC) - Natural (HVAC Side) Connector Pinouts

G03548707

Courtesy of DAIMLERCHRYSLER CORP.

Fig 16: Identifying C202 (MTC) - Natural (Instrument Panel Side) Connector Pinouts

G03548708

Courtesy of DAIMLERCHRYSLER CORP.

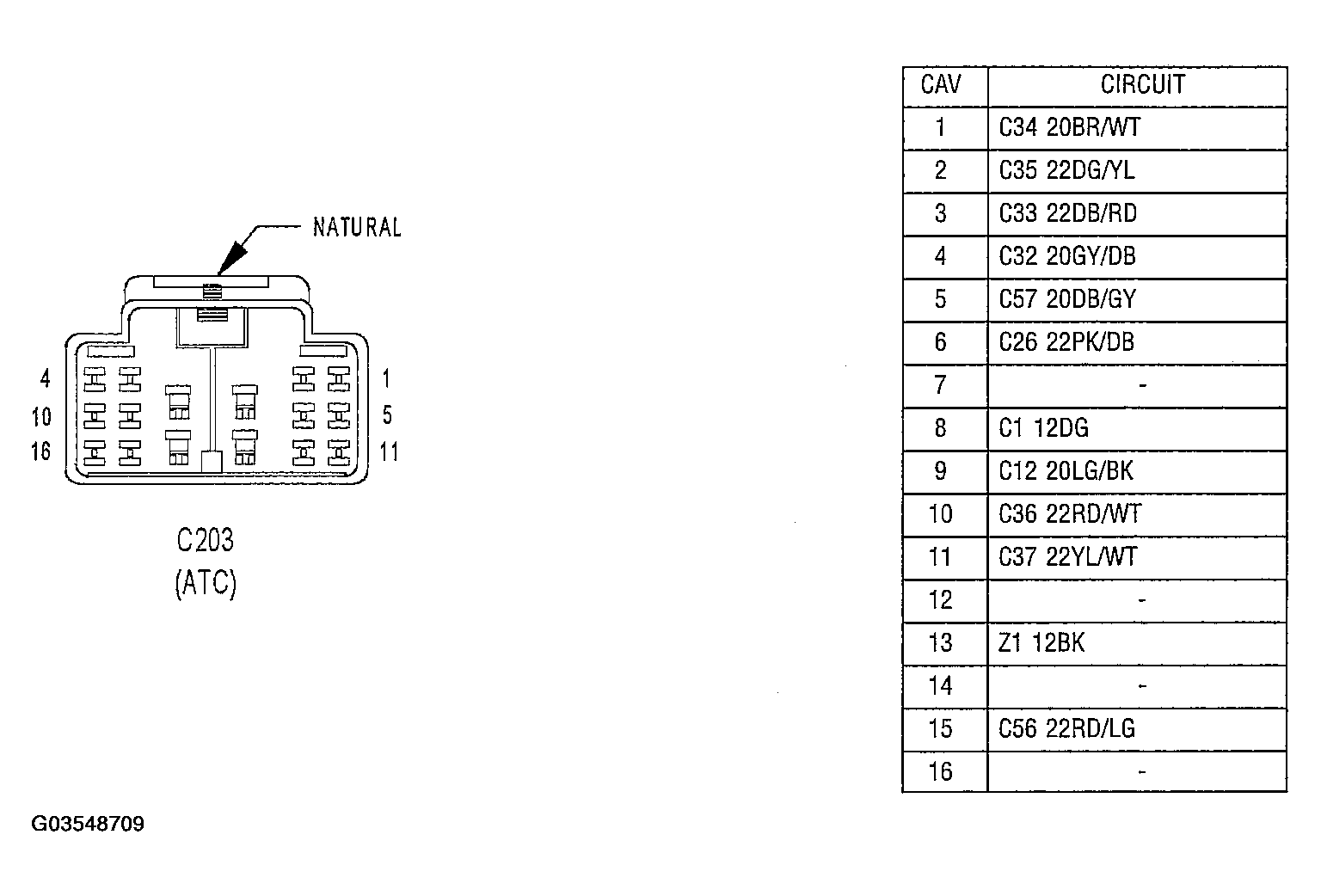

Fig 17: Identifying C203 (ATC) - Natural (HVAC Side) Connector Pinouts

G03548709

Courtesy of DAIMLERCHRYSLER CORP.

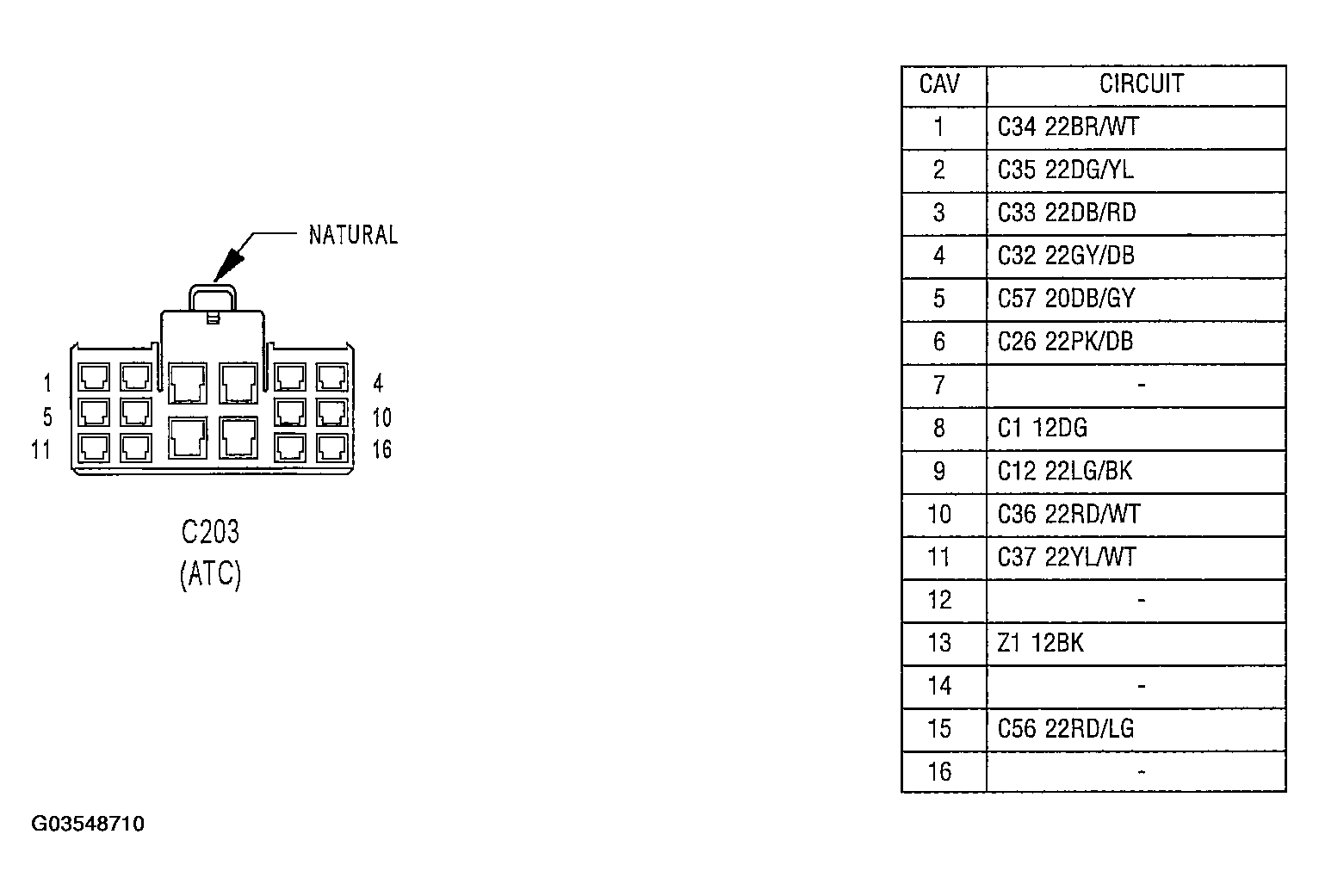

Fig 18: Identifying C203 (ATC) - Natural (Instrument Panel Side) Connector Pinouts

G03548710

Courtesy of DAIMLERCHRYSLER CORP.

Fig 19: Identifying C309 - Yellow (SAB Jumper Side) Connector Pinouts

G03548711

Courtesy of DAIMLERCHRYSLER CORP.

Fig 20: Identifying C309 - Yellow (SAB Overlay Side) Connector Pinouts

G03548712

Courtesy of DAIMLERCHRYSLER CORP.

Fig 21: Identifying C310 - Yellow (SAB Jumper Side) Connector Pinouts

G03548713

Courtesy of DAIMLERCHRYSLER CORP.

Fig 22: Identifying C310 - Yellow (SAB Overlay Side) Connector Pinouts

G03548714

Courtesy of DAIMLERCHRYSLER CORP.

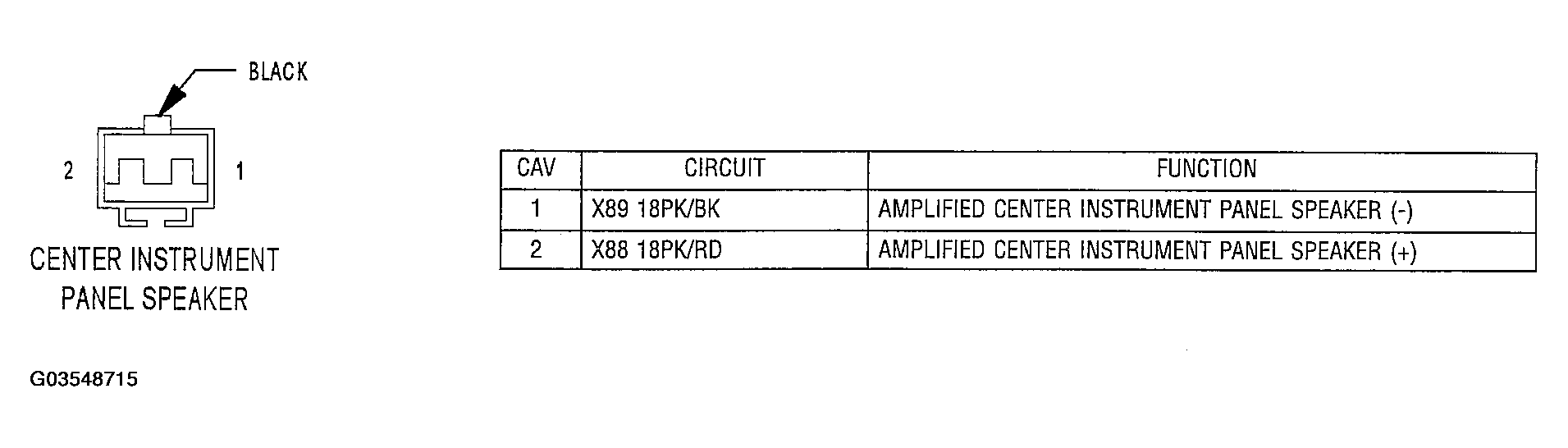

Fig 23: Identifying Center Instrument Panel Speaker - Black 2 Way Connector Pinouts

G03548715

Courtesy of DAIMLERCHRYSLER CORP.

Fig 24: Identifying Clockspring C1 - Natural 5 Way Connector Pinouts

G03548716

Courtesy of DAIMLERCHRYSLER CORP.

Fig 25: Identifying Clockspring C2 - Yellow 2 Way Connector Pinouts

G03548717

Courtesy of DAIMLERCHRYSLER CORP.

Fig 26: Identifying Clockspring C3 - 4 Way Connector Pinouts

G03548718

Courtesy of DAIMLERCHRYSLER CORP.

Fig 27: Identifying Compact Disc Changer (Midline/Premium) - Black 8 Way Connector Pinouts

G03548719

Courtesy of DAIMLERCHRYSLER CORP.

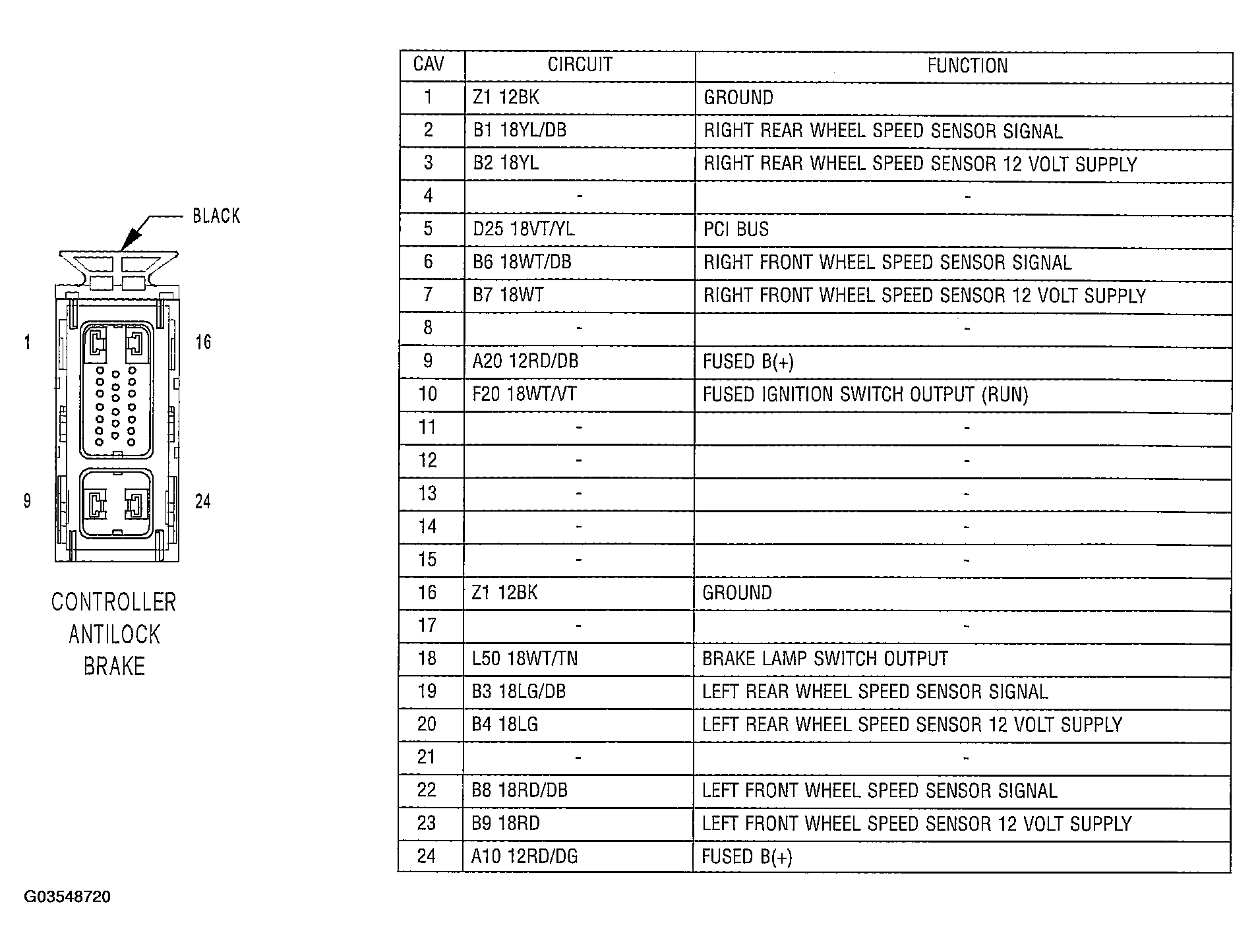

Fig 28: Identifying Controller Antilock Brake - Black 24 Way Connector Pinouts

G03548720

Courtesy of DAIMLERCHRYSLER CORP.

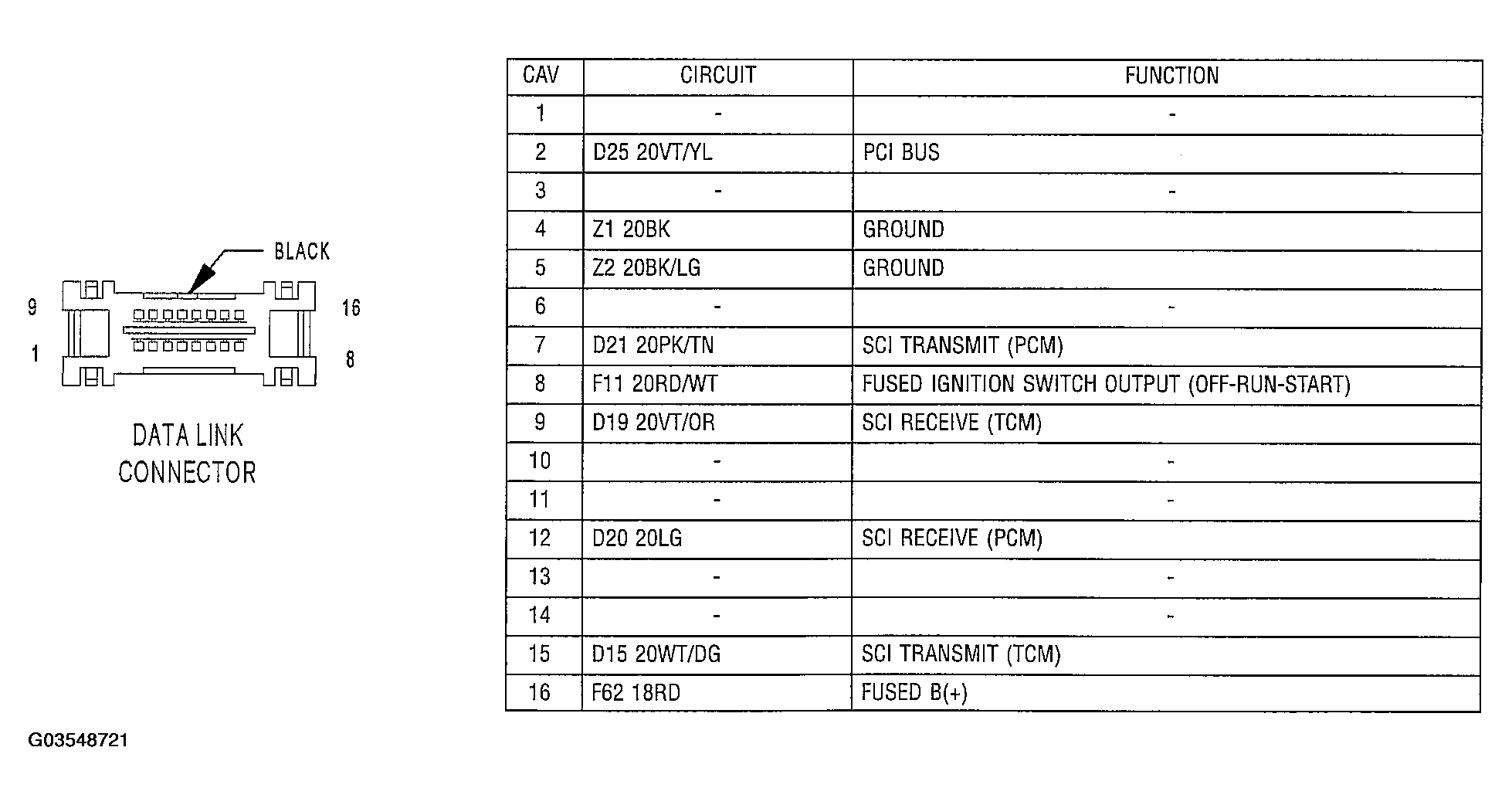

Fig 29: Identifying Data Link Connector - Black 16 Way Connector Pinouts

G03548721

Courtesy of DAIMLERCHRYSLER CORP.

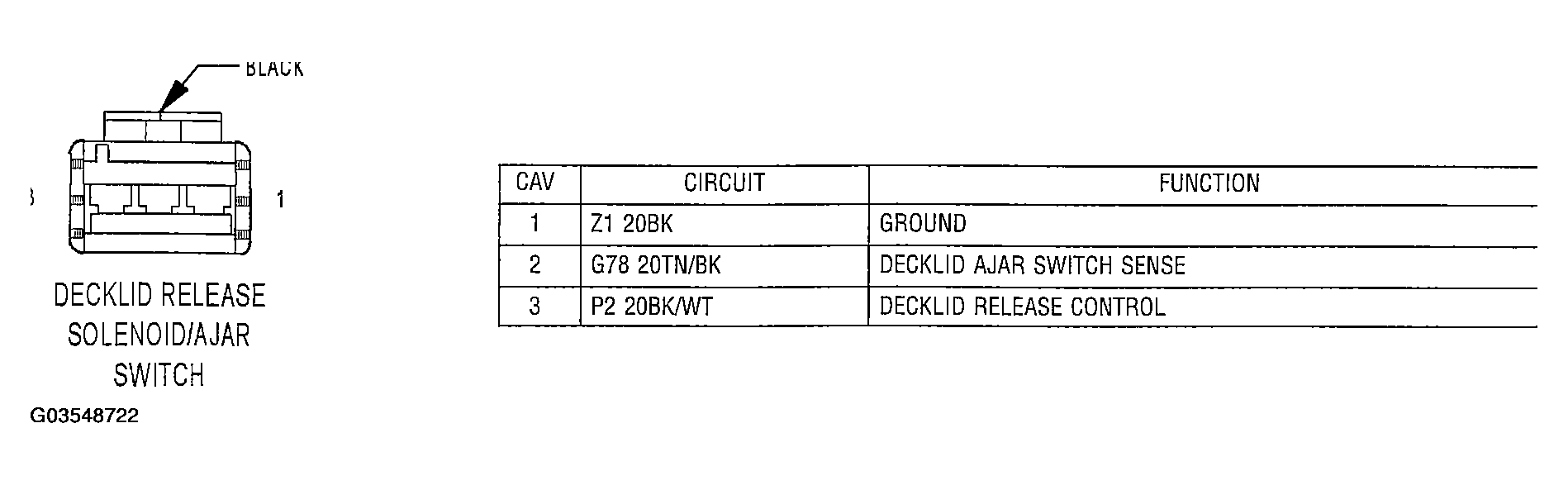

Fig 30: Identifying Decklid Release Solenoid/Ajar Switch - Black 3 Way Connector Pinouts

G03548722

Courtesy of DAIMLERCHRYSLER CORP.

Fig 31: Identifying Decklid Release Switch - Black 2 Way Connector Pinouts

G03548723

Courtesy of DAIMLERCHRYSLER CORP.

Fig 32: Identifying Driver Airbag Squib - Yellow 2 Way Connector Pinouts

G03548724

Courtesy of DAIMLERCHRYSLER CORP.

Fig 33: Identifying Driver Cylinder Lock Switch - Gray 2 Way Connector Pinouts

G03548725

Courtesy of DAIMLERCHRYSLER CORP.

Fig 34: Identifying Driver Door Lock Motor/Ajar Switch - Black 4 Way Connector Pinouts

G03548726

Courtesy of DAIMLERCHRYSLER CORP.

Fig 35: Identifying Driver Heated Seat Back - Green 2 Way Connector Pinouts

G03548727

Courtesy of DAIMLERCHRYSLER CORP.

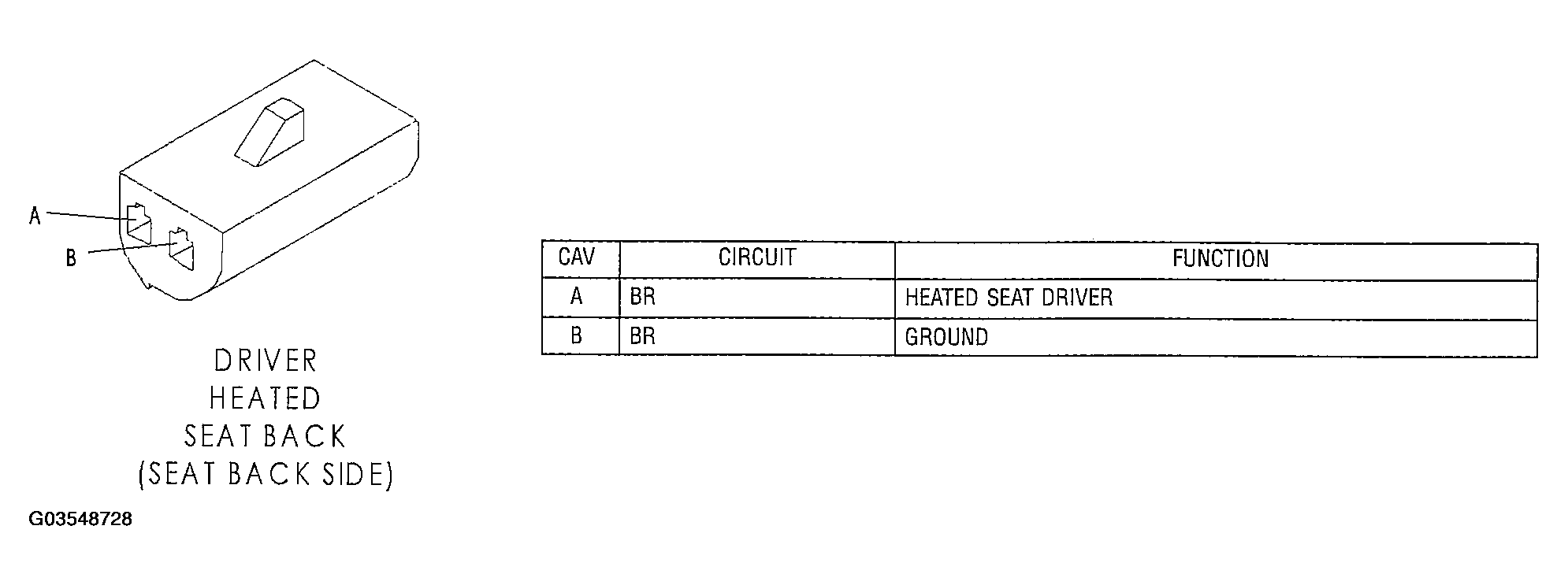

Fig 36: Identifying Driver Heated Seat Back (Seat Back Side) Connector Pinouts

G03548728

Courtesy of DAIMLERCHRYSLER CORP.

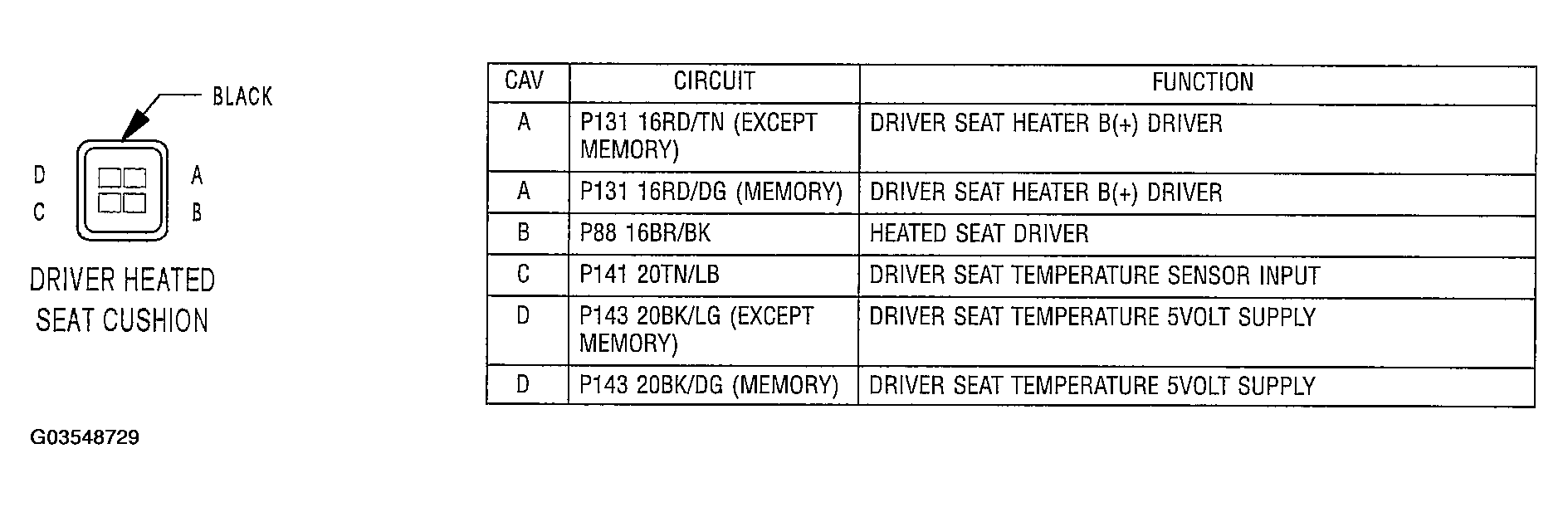

Fig 37: Identifying Driver Heated Seat Cushion - Black 4 Way Connector Pinouts

G03548729

Courtesy of DAIMLERCHRYSLER CORP.

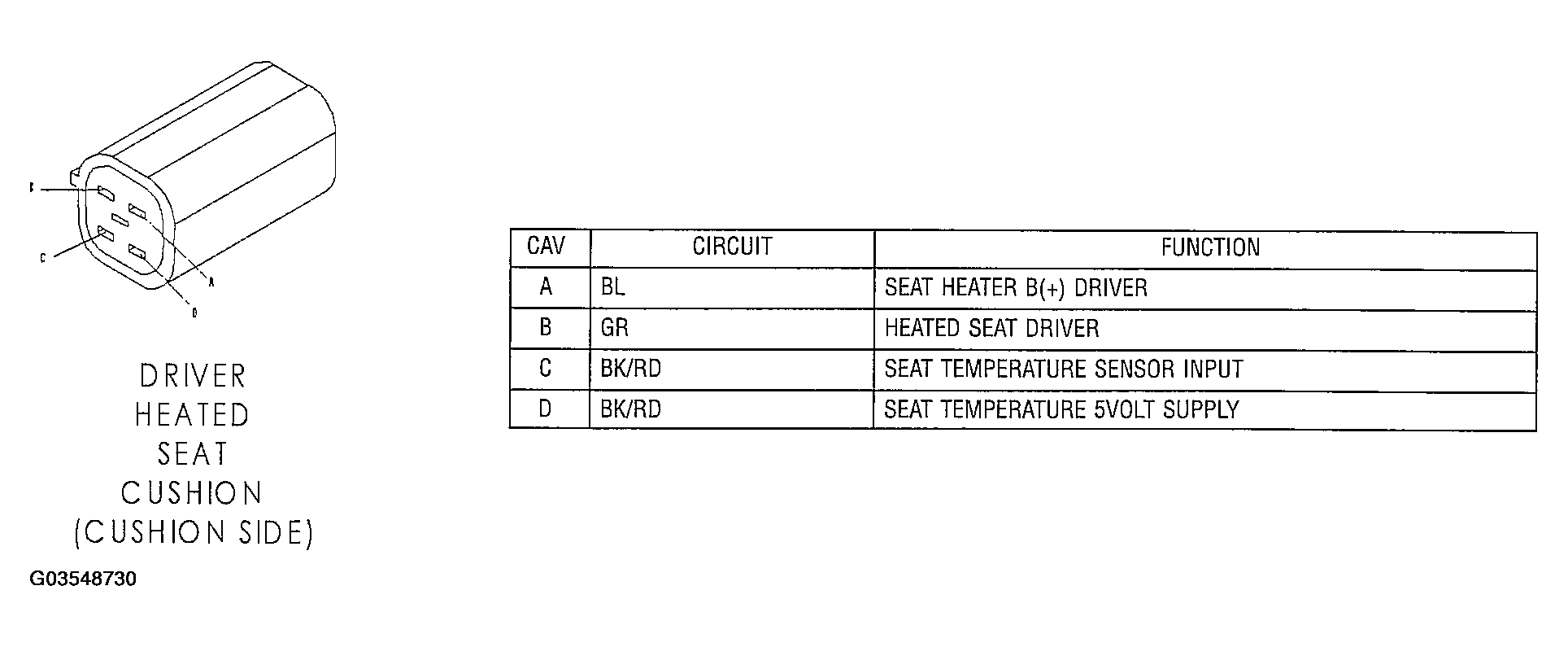

Fig 38: Identifying Driver Heated Seat Cushion (Cushion Side) Connector Pinouts

G03548730

Courtesy of DAIMLERCHRYSLER CORP.

Fig 39: Identifying Driver Heated Seat Switch - 6 Way Connector Pinouts

G03548731

Courtesy of DAIMLERCHRYSLER CORP.

Fig 40: Identifying Driver Power Door Lock Switch - Natural 4 Way Connector Pinouts

G03548732

Courtesy of DAIMLERCHRYSLER CORP.

Fig 41: Identifying Driver Power Mirror (Memory) - White 12 Way Connector Pinouts

G03548733

Courtesy of DAIMLERCHRYSLER CORP.

Fig 42: Identifying Driver Power Seat Front Riser Motor - Red 2 Way Connector Pinouts

G03548734

Courtesy of DAIMLERCHRYSLER CORP.

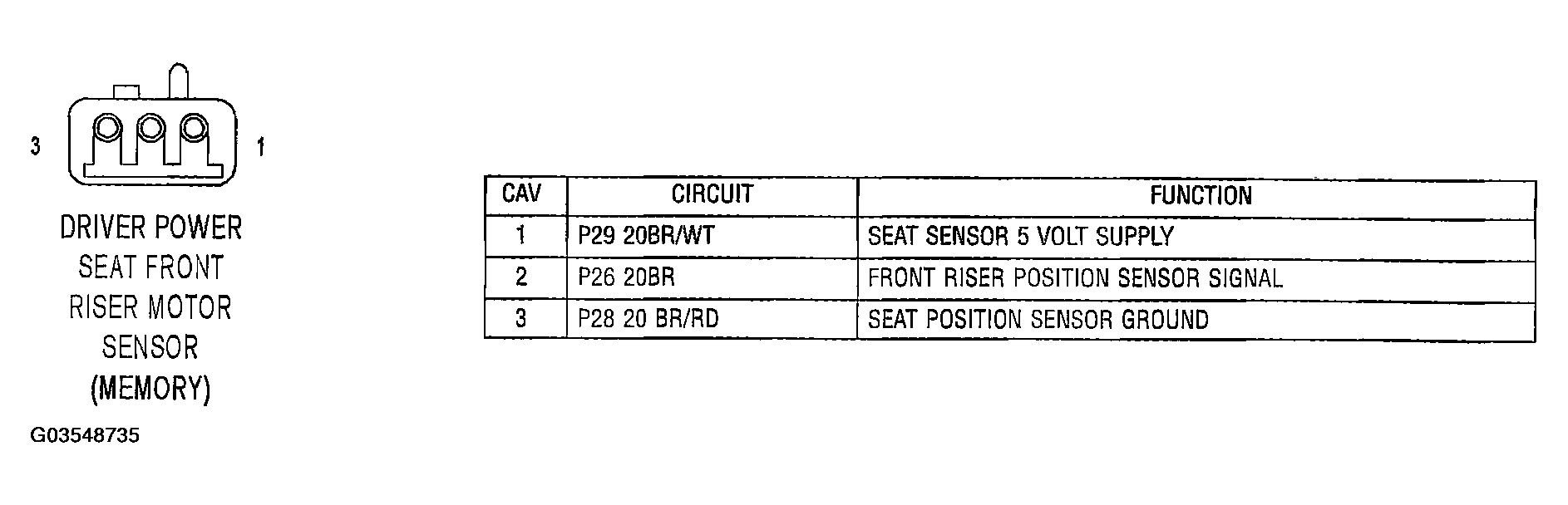

Fig 43: Identifying Driver Power Seat Front Riser Motor Sensor (Memory) - 3 Way Connector Pinouts

G03548735

Courtesy of DAIMLERCHRYSLER CORP.

Fig 44: Identifying Driver Power Seat Horizontal Motor - Black 2 Way Connector Pinouts

G03548736

Courtesy of DAIMLERCHRYSLER CORP.

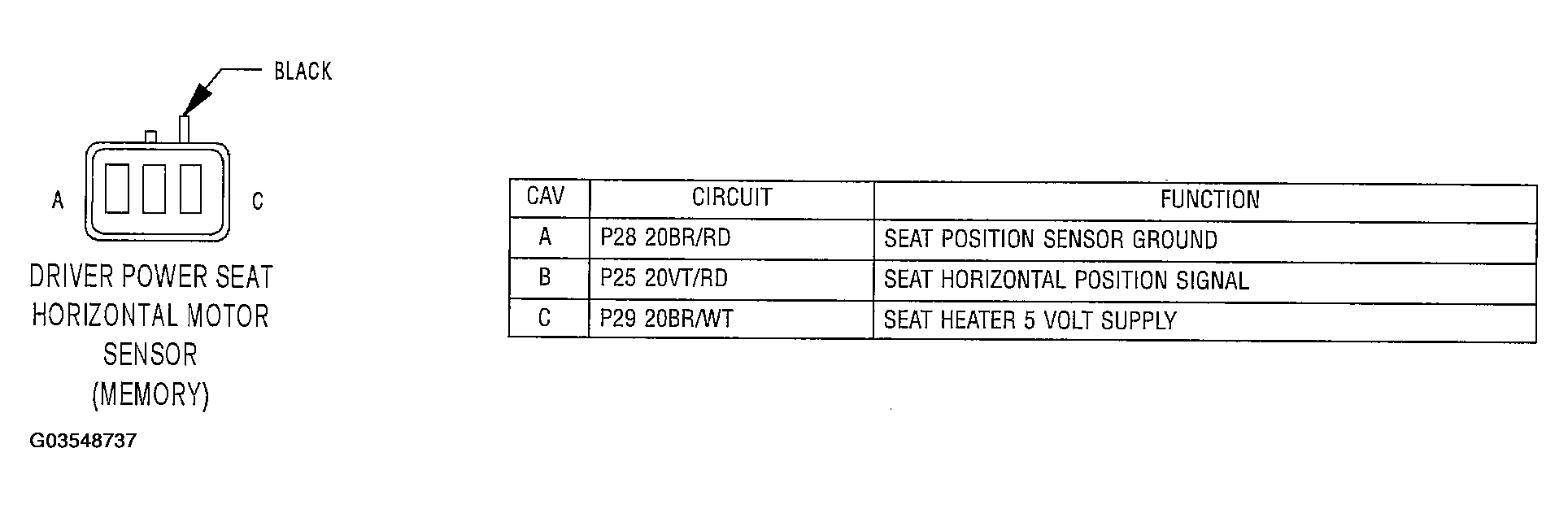

Fig 45: Identifying Driver Power Seat Horizontal Motor Sensor (Memory) - Black 3 Way Connector Pinouts

G03548737

Courtesy of DAIMLERCHRYSLER CORP.

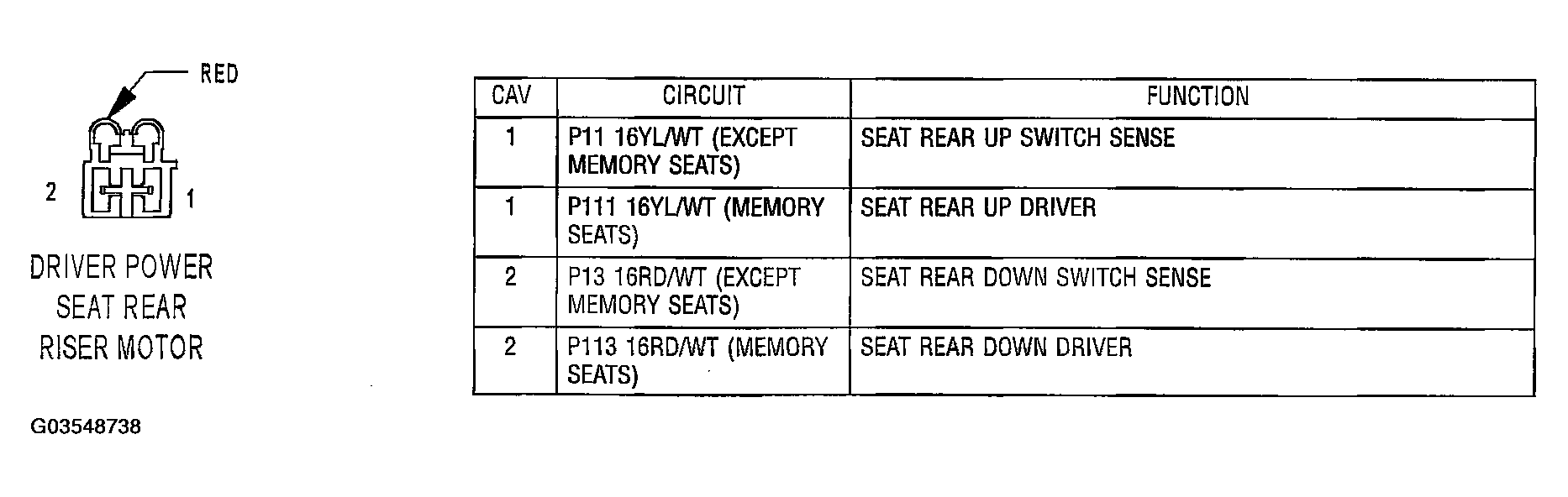

Fig 46: Identifying Driver Power Seat Rear Riser Motor - Red 2 Way Connector Pinouts

G03548738

Courtesy of DAIMLERCHRYSLER CORP.

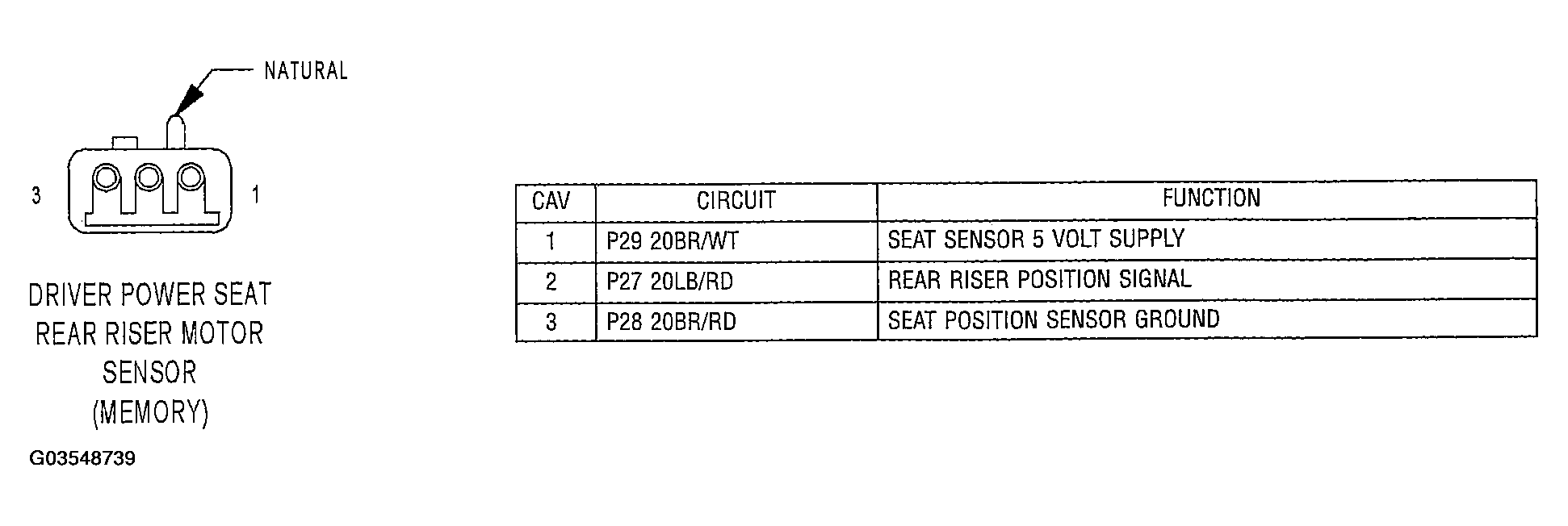

Fig 47: Identifying Driver Power Seat Rear Riser Motor Sensor (Memory) - Natural 3 Way Connector Pinouts

G03548739

Courtesy of DAIMLERCHRYSLER CORP.

Fig 48: Identifying Driver Power Seat Recliner Motor - Green 2 Way Connector Pinouts

G03548740

Courtesy of DAIMLERCHRYSLER CORP.

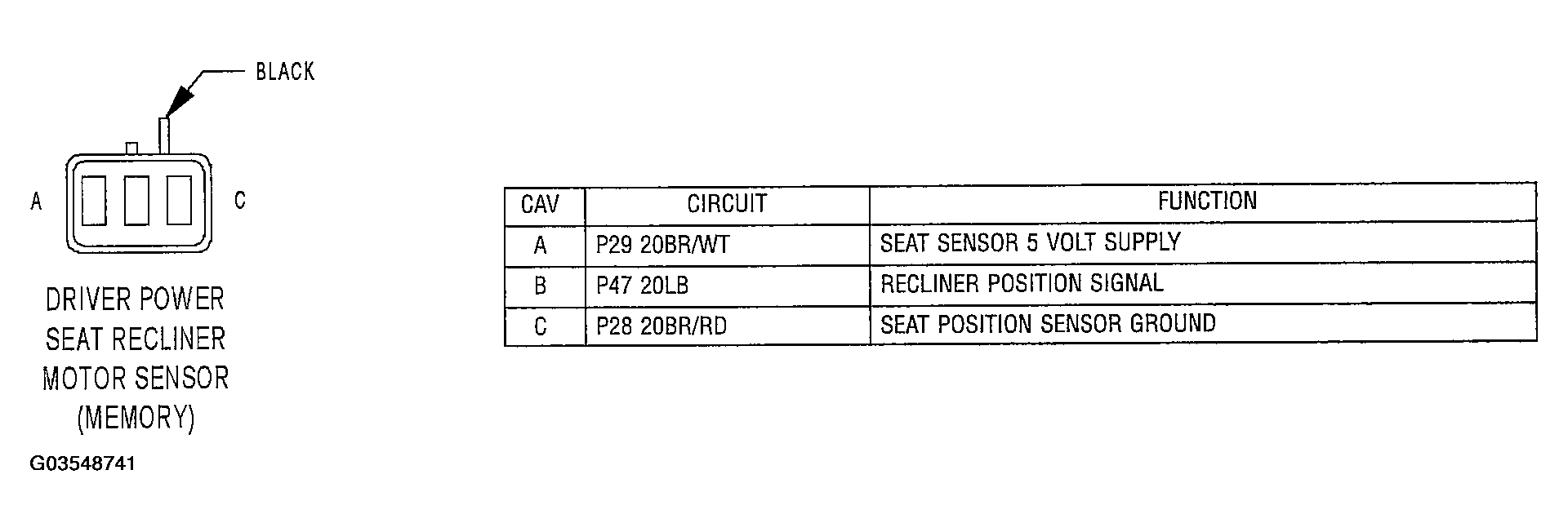

Fig 49: Identifying Driver Power Seat Recliner Motor Sensor (Memory) - Black 3 Way Connector Pinouts

G03548741

Courtesy of DAIMLERCHRYSLER CORP.

Fig 50: Identifying Driver Power Seat Switch - Blue 10 Way Connector Pinouts

G03548742

Courtesy of DAIMLERCHRYSLER CORP.

Fig 51: Identifying Engine Oil Pressure Switch - Lt. Green 2 Way Connector Pinouts

G03548743

Courtesy of DAIMLERCHRYSLER CORP.

Fig 52: Identifying Evaporator Temperature Sensor - Black 2 Way Connector Pinouts

G03548744

Courtesy of DAIMLERCHRYSLER CORP.

Fig 53: Identifying Heated Mirror Fuse - Black 2 Way Connector Pinouts

G03548745

Courtesy of DAIMLERCHRYSLER CORP.

Fig 54: Identifying Ignition Switch - Black 10 Way Connector Pinouts

G03548746

Courtesy of DAIMLERCHRYSLER CORP.

Fig 55: Identifying Instrument Cluster C1 - Green 10 Way Connector Pinouts

G03548747

Courtesy of DAIMLERCHRYSLER CORP.

Fig 56: Identifying Instrument Cluster C2 - Blue 10 Way Connector Pinouts

G03548748

Courtesy of DAIMLERCHRYSLER CORP.

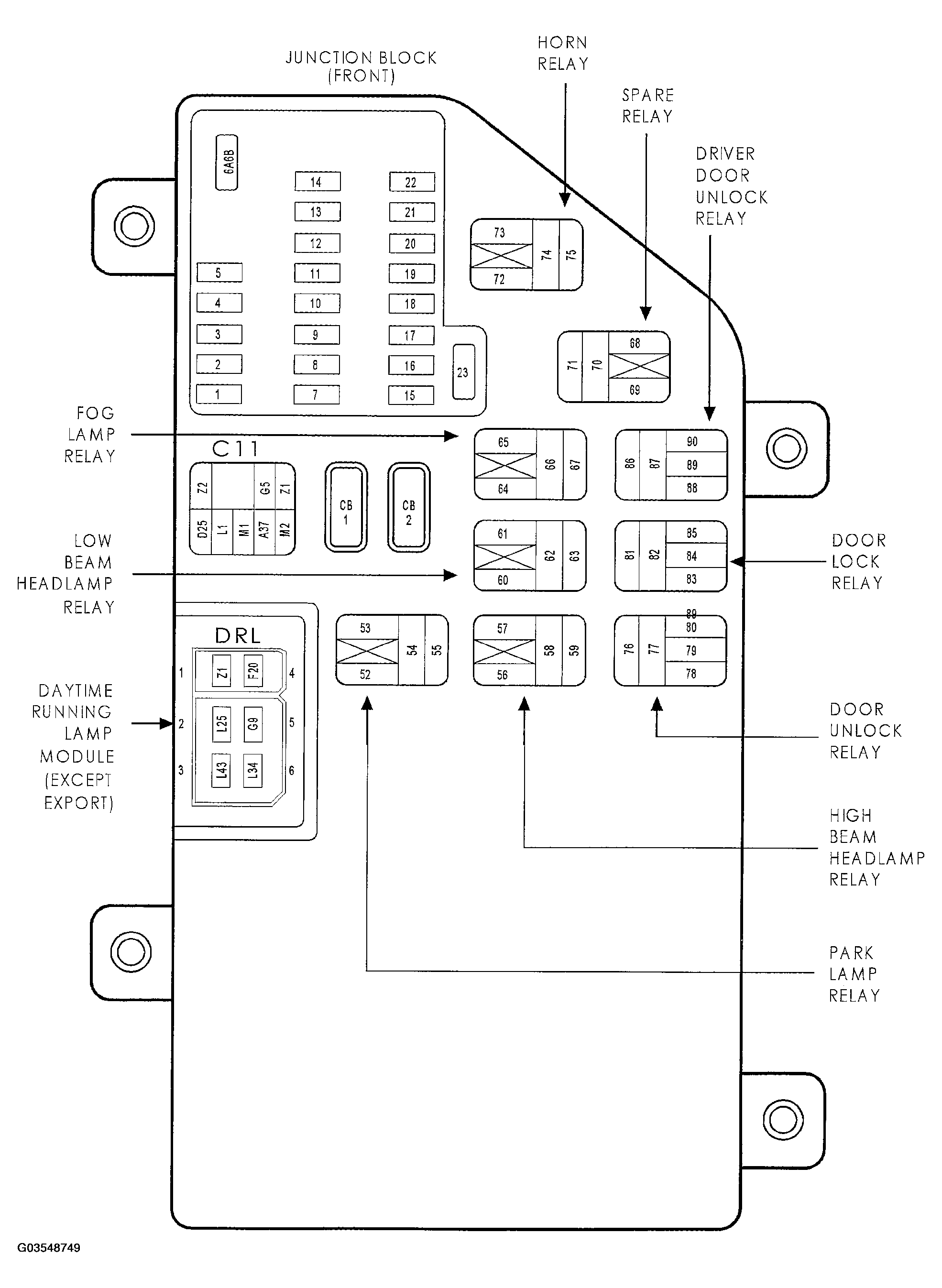

Fig 57: Identifying Relay Compartment

G03548749

Courtesy of DAIMLERCHRYSLER CORP.

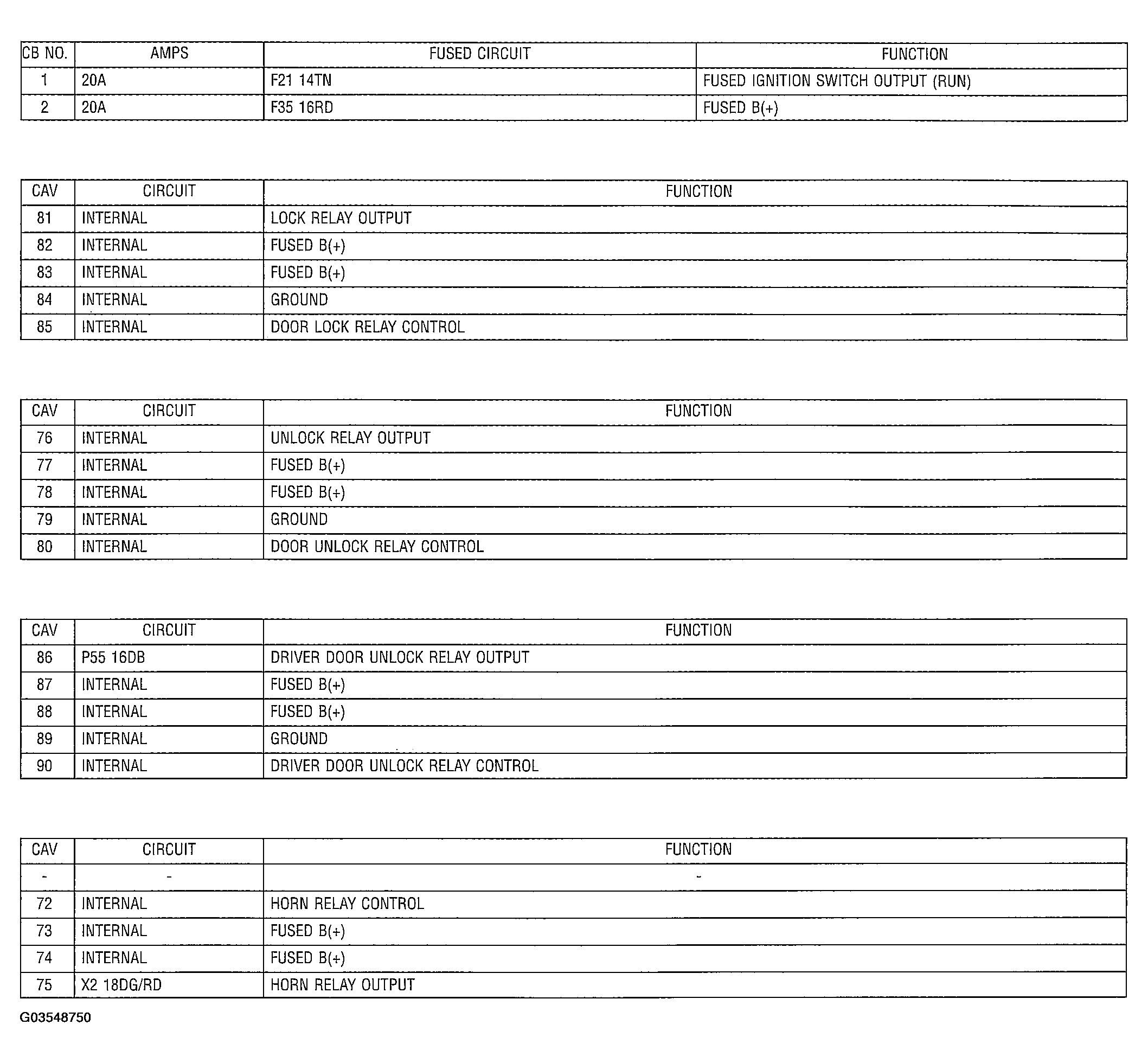

Fig 58: Identifying Circuit Breakers Door Lock Relay Door Unlock Relay Driver Door Unlock Relay Horn Relay Connector Pinouts

G03548750

Courtesy of DAIMLERCHRYSLER CORP.

Fig 59: Identifying Junction Block Body Control Module-Jb - 20 Way Connector Pinouts

G03548751

Courtesy of DAIMLERCHRYSLER CORP.

Fig 60: Identifying Junction Block C2 - Gray 16 Way Connector Pinouts

G03548752

Courtesy of DAIMLERCHRYSLER CORP.

Fig 61: Identifying Junction Block C3 - Blue 15 Way Connector Pinouts

G03548753

Courtesy of DAIMLERCHRYSLER CORP.

Fig 62: Identifying Junction Block C4 - Green 12 Way Connector Pinouts

G03548754

Courtesy of DAIMLERCHRYSLER CORP.

Fig 63: Identifying Junction Block C6 - Brown 12 Way Connector Pinouts

G03548755

Courtesy of DAIMLERCHRYSLER CORP.

Fig 64: Identifying Junction Block C7 - Natural 12 Way Connector Pinouts

G03548756

Courtesy of DAIMLERCHRYSLER CORP.

Fig 65: Identifying Junction Block C9 - Orange 8 Way Connector Pinouts

G03548757

Courtesy of DAIMLERCHRYSLER CORP.

Fig 66: Identifying Junction Block C11 - Natural 8 Way Connector Pinouts

G03548758

Courtesy of DAIMLERCHRYSLER CORP.

Fig 67: Identifying Left Front Door Sail Speaker - Black 2 Way Connector Pinouts

G03548759

Courtesy of DAIMLERCHRYSLER CORP.

Fig 68: Identifying Left Front Door Speaker - 3 Way Connector Pinouts

G03548760

Courtesy of DAIMLERCHRYSLER CORP.

Fig 69: Identifying Left Horn - Black 2 Way Connector Pinouts

G03548761

Courtesy of DAIMLERCHRYSLER CORP.

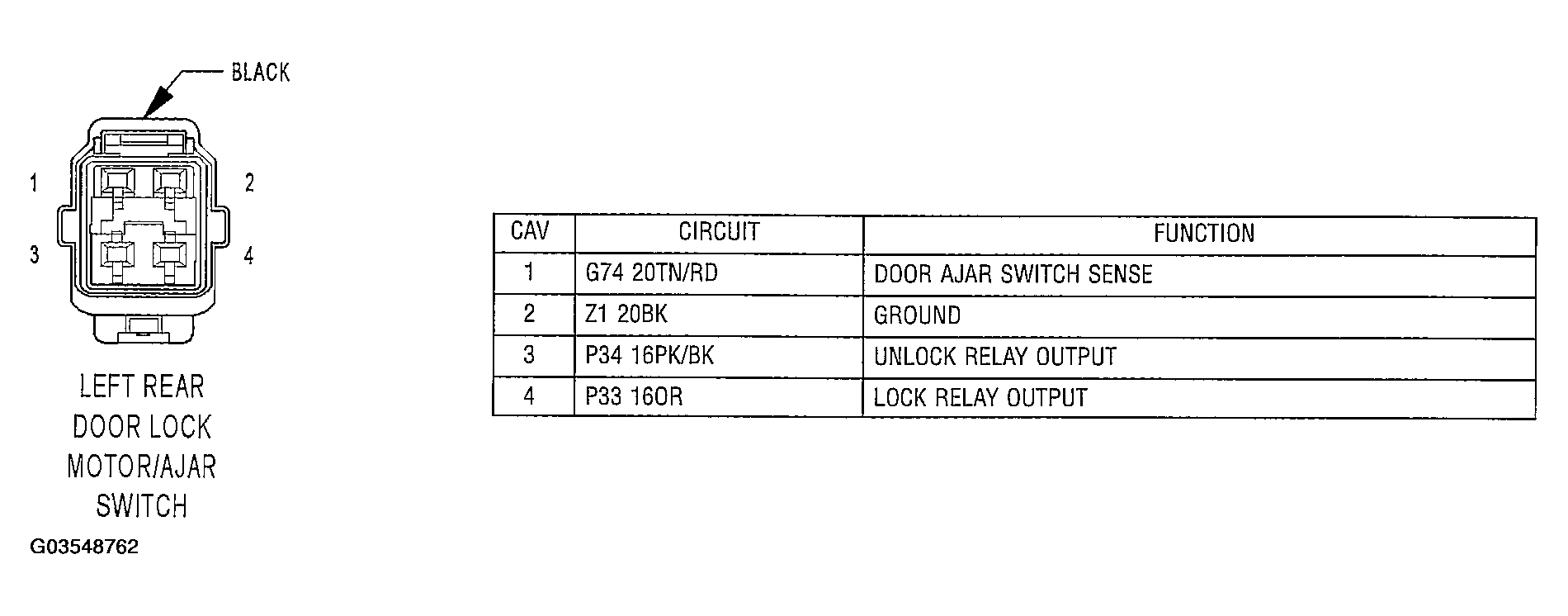

Fig 70: Identifying Left Rear Door Lock Motor/Ajar Switch - Black 4 Way Connector Pinouts

G03548762

Courtesy of DAIMLERCHRYSLER CORP.

Fig 71: Identifying Left Rear Door Speaker (Premium) - Black 2 Way Connector Pinouts

G03548763

Courtesy of DAIMLERCHRYSLER CORP.

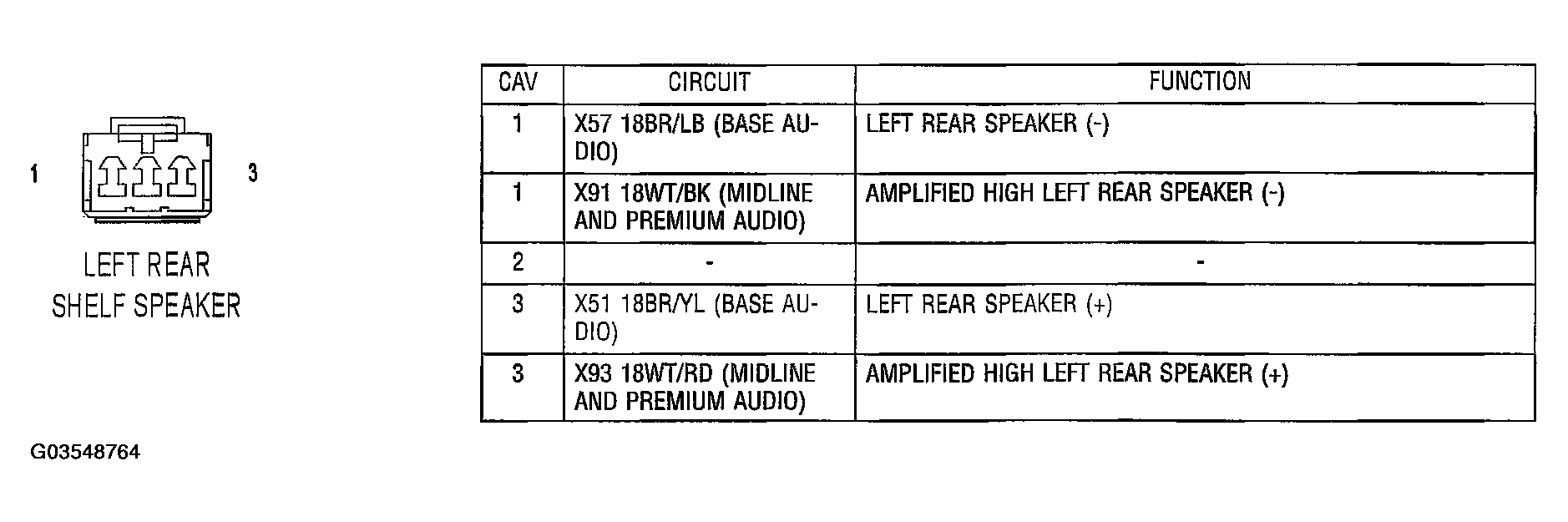

Fig 72: Identifying Left Rear Shelf Speaker - 3 Way Connector Pinouts

G03548764

Courtesy of DAIMLERCHRYSLER CORP.

Fig 73: Identifying Left Remote Radio Switch - Black 2 Way Connector Pinouts

G03548765

Courtesy of DAIMLERCHRYSLER CORP.

Fig 74: Identifying Left Seat Airbag Squib - Yellow 2 Way Connector Pinouts

G03548766

Courtesy of DAIMLERCHRYSLER CORP.

Fig 75: Identifying Left Side Impact Airbag Control Module - Yellow 6 Way Connector Pinouts

G03548767

Courtesy of DAIMLERCHRYSLER CORP.

Fig 76: Identifying Manual Temperature Control Head C1 - Natural 12 Way Connector Pinouts

G03548768

Courtesy of DAIMLERCHRYSLER CORP.

Fig 77: Identifying Manual Temperature Control Head C2 - Black 10 Way Connector Pinouts

G03548769

Courtesy of DAIMLERCHRYSLER CORP.

Fig 78: Identifying Memory Heated Seat/Mirror Module C1 - 26 Way Connector Pinouts

G03548770

Courtesy of DAIMLERCHRYSLER CORP.

Fig 79: Identifying Memory Heated Seat/Mirror Module C2 - Gray 16 Way Connector Pinouts

G03548771

Courtesy of DAIMLERCHRYSLER CORP.

Fig 80: Identifying Memory Heated Seat/Mirror Module C3 - White 12 Way Connector Pinouts

G03548772

Courtesy of DAIMLERCHRYSLER CORP.

Fig 81: Identifying Memory Heated Seat/Mirror Module C4 - Gray 2 Way Connector Pinouts

G03548773

Courtesy of DAIMLERCHRYSLER CORP.

Fig 82: Identifying Memory Set Switch - 6 Way Connector Pinouts

G03548774

Courtesy of DAIMLERCHRYSLER CORP.

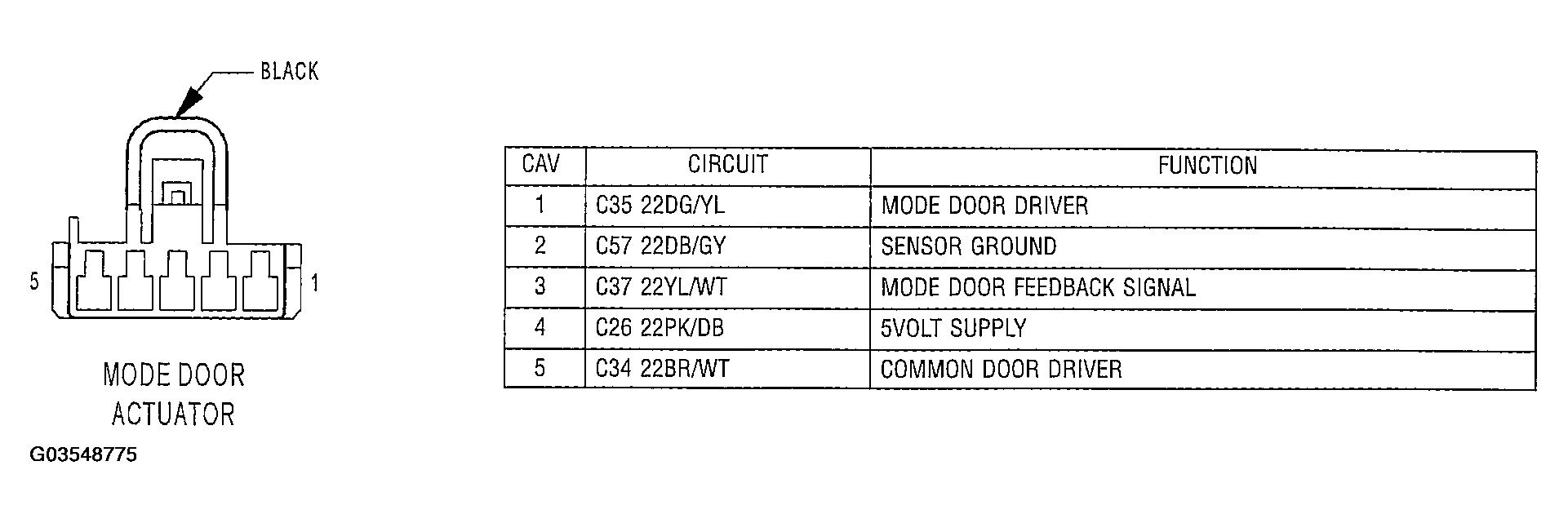

Fig 83: Identifying Mode Door Actuator - Black 5 Way Connector Pinouts

G03548775

Courtesy of DAIMLERCHRYSLER CORP.

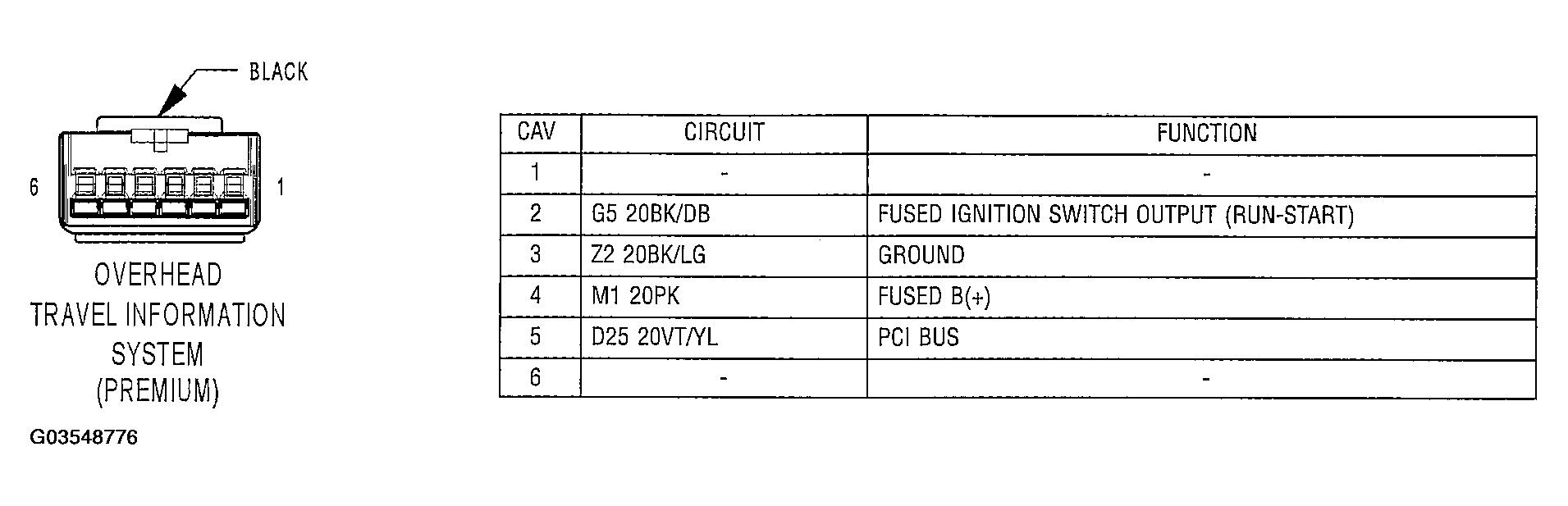

Fig 84: Identifying Overhead Travel Information System (Premium) - Black 6 Way Connector Pinouts

G03548776

Courtesy of DAIMLERCHRYSLER CORP.

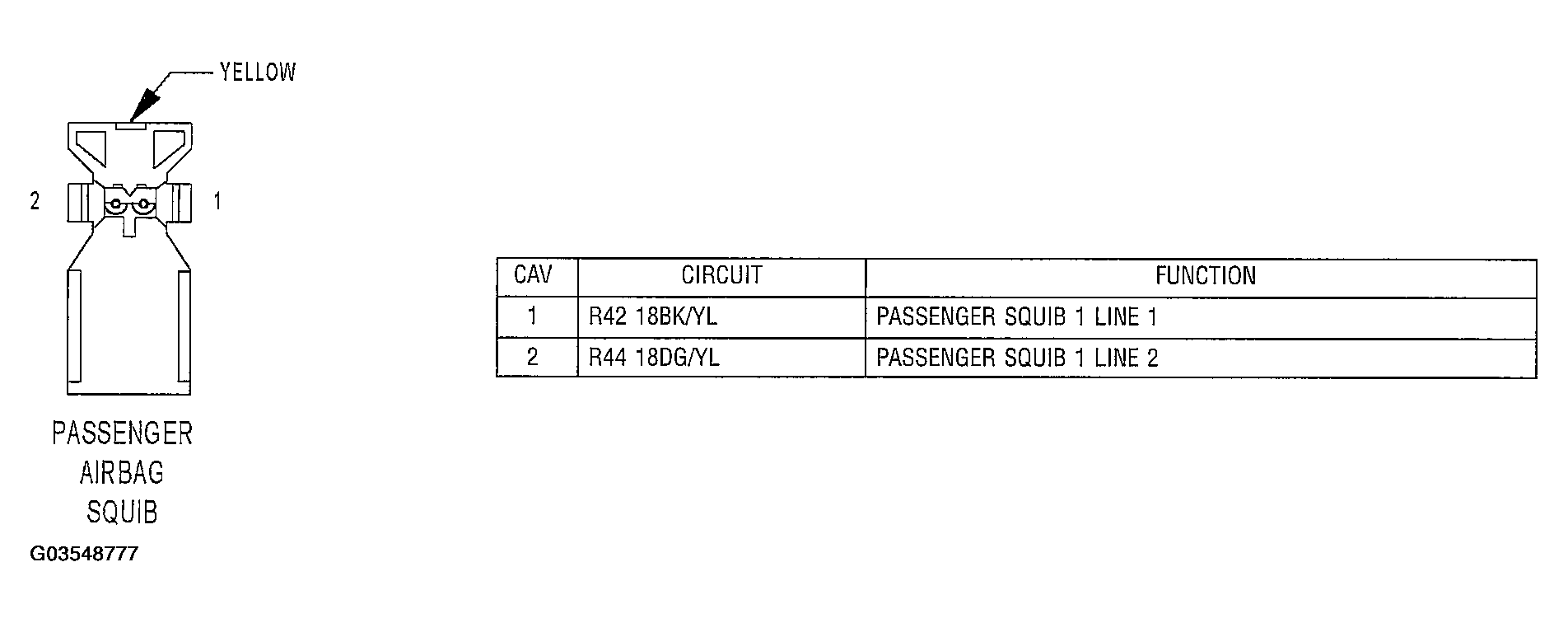

Fig 85: Identifying Passenger Airbag Squib - Yellow 2 Way Connector Pinouts

G03548777

Courtesy of DAIMLERCHRYSLER CORP.

Fig 86: Identifying Passenger Door Lock Motor/Ajar Switch - Black 4 Way Connector Pinouts

G03548778

Courtesy of DAIMLERCHRYSLER CORP.

Fig 87: Identifying Passenger Heated Seat Back - Green 2 Way Connector Pinouts

G03548779

Courtesy of DAIMLERCHRYSLER CORP.

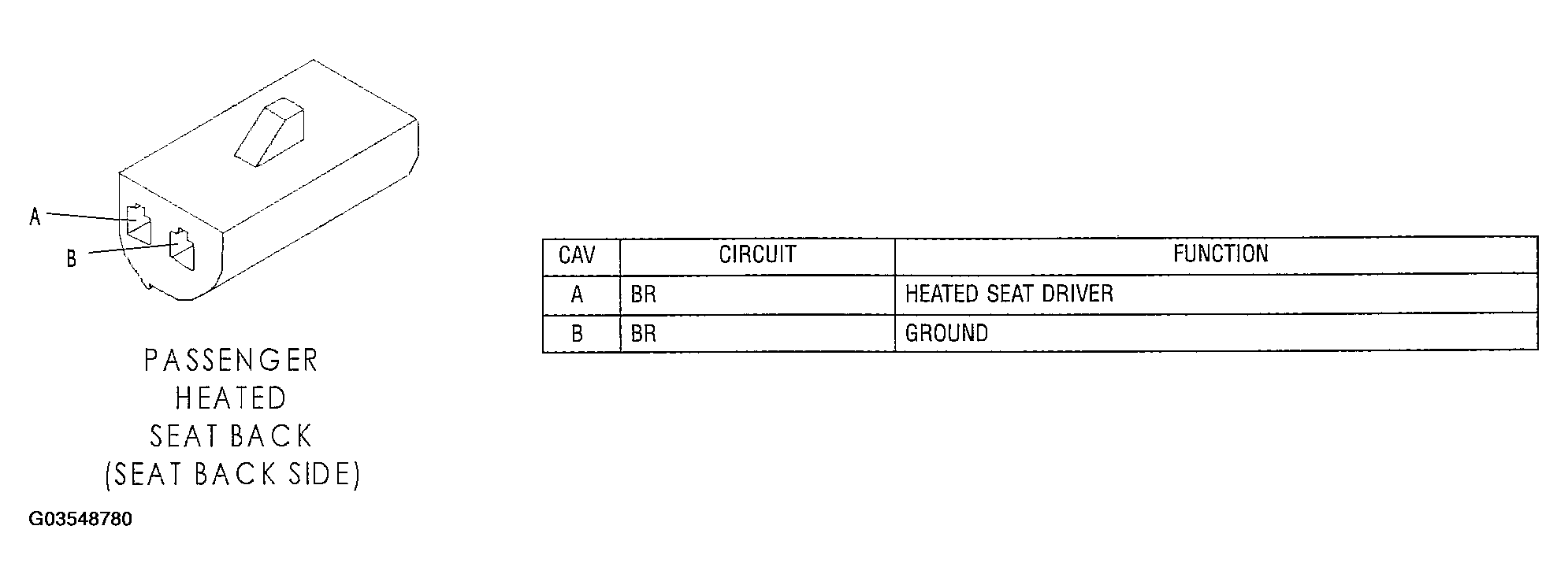

Fig 88: Identifying Passenger Heated Seat Back (Seat Back Side) Connector Pinouts

G03548780

Courtesy of DAIMLERCHRYSLER CORP.

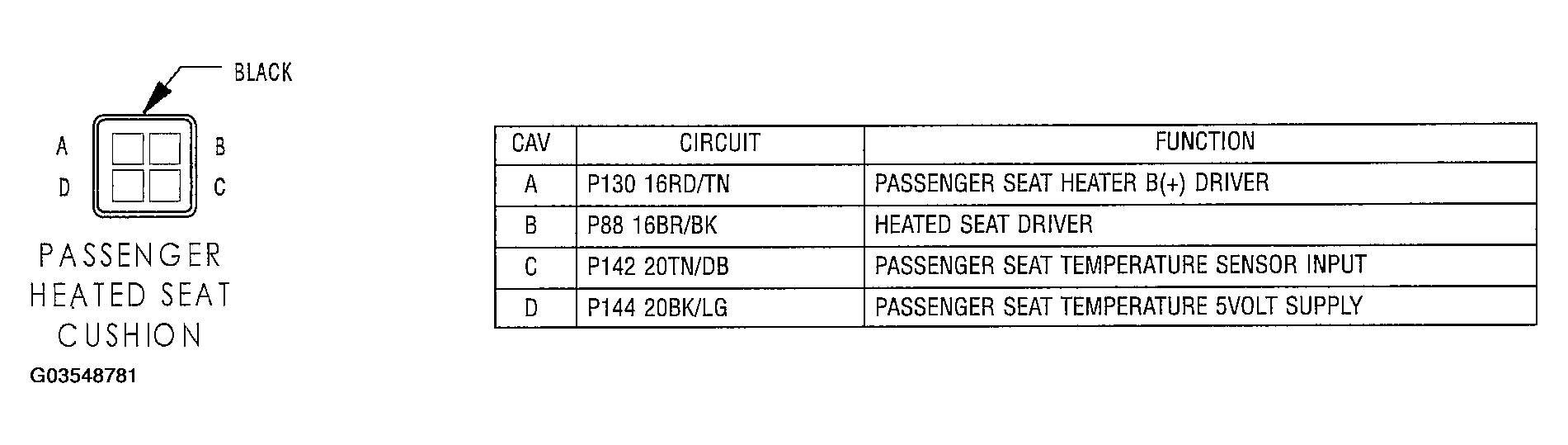

Fig 89: Identifying Passenger Heated Seat Cushion - Black 4 Way Connector Pinouts

G03548781

Courtesy of DAIMLERCHRYSLER CORP.

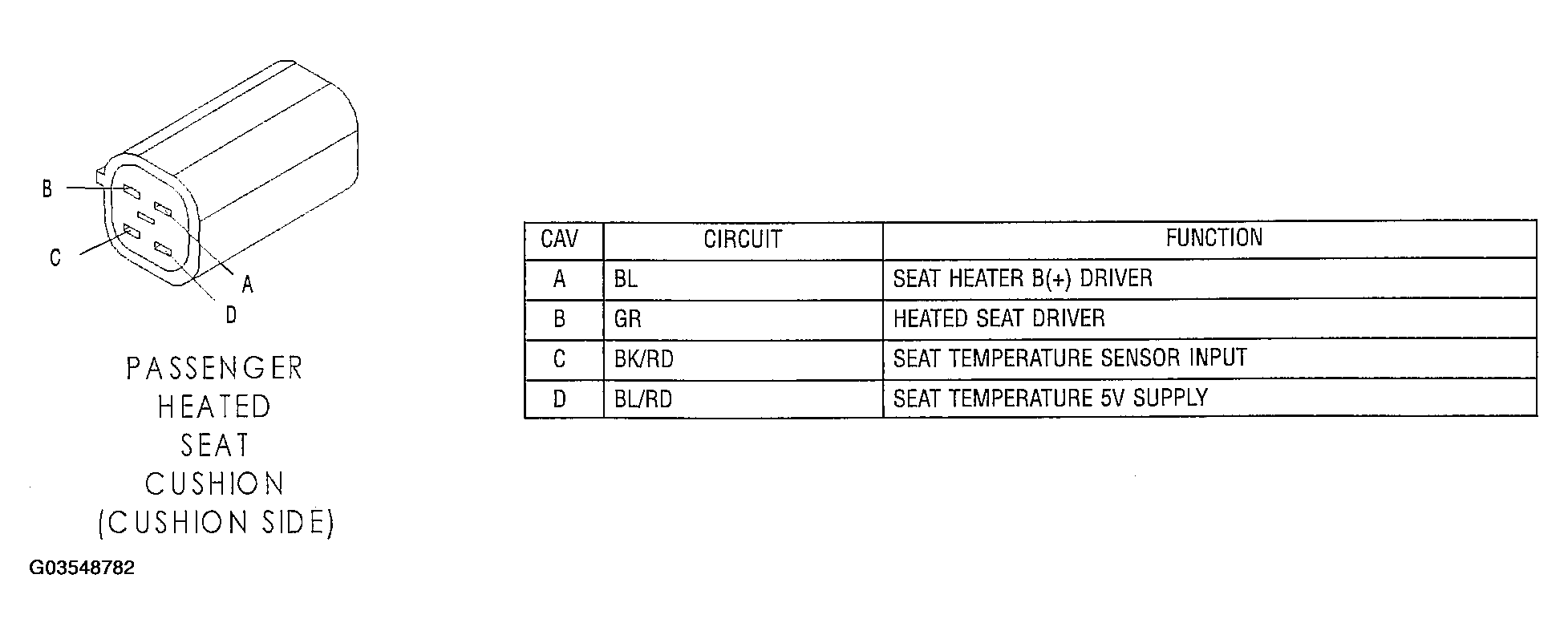

Fig 90: Identifying Passenger Heated Seat Cushion (Cushion Side) Connector Pinouts

G03548782

Courtesy of DAIMLERCHRYSLER CORP.

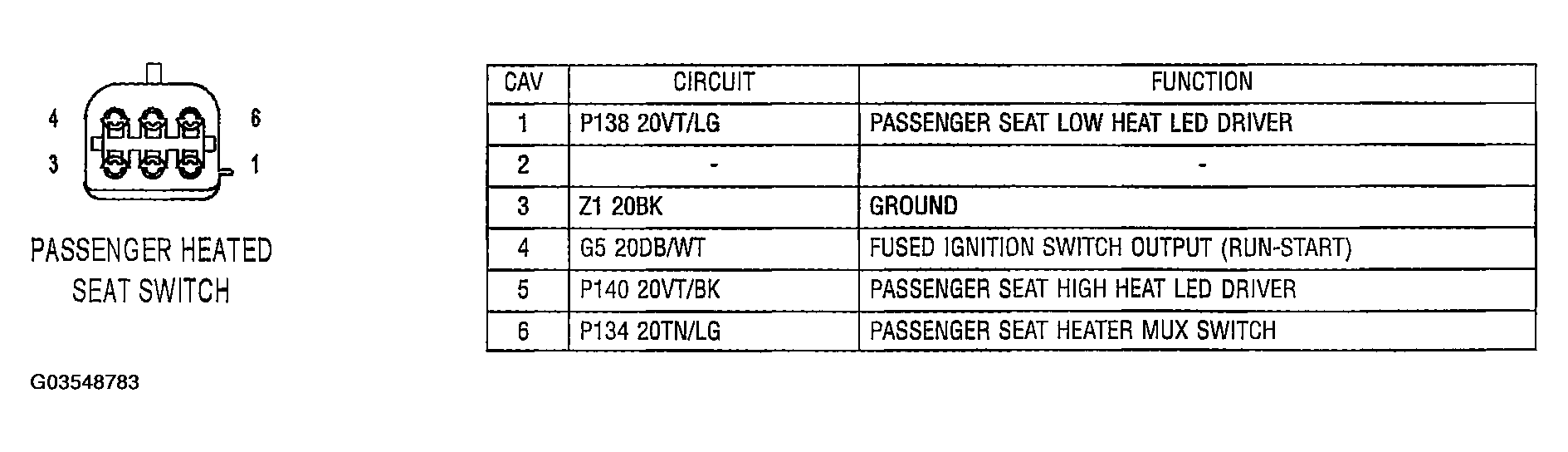

Fig 91: Identifying Passenger Heated Seat Switch - 6 Way Connector Pinouts

G03548783

Courtesy of DAIMLERCHRYSLER CORP.

Fig 92: Identifying Passenger Power Door Lock Switch - Natural 4 Way Connector Pinouts

G03548784

Courtesy of DAIMLERCHRYSLER CORP.

Fig 93: Identifying Passenger Power Mirror (Memory) - Natural 10 Way Connector Pinouts

G03548785

Courtesy of DAIMLERCHRYSLER CORP.

Fig 94: Identifying Power Amplifier C1 - White 12 Way Connector Pinouts

G03548786

Courtesy of DAIMLERCHRYSLER CORP.

Fig 95: Identifying Power Amplifier C2 - White 22 Way Connector Pinouts

G03548787

Courtesy of DAIMLERCHRYSLER CORP.

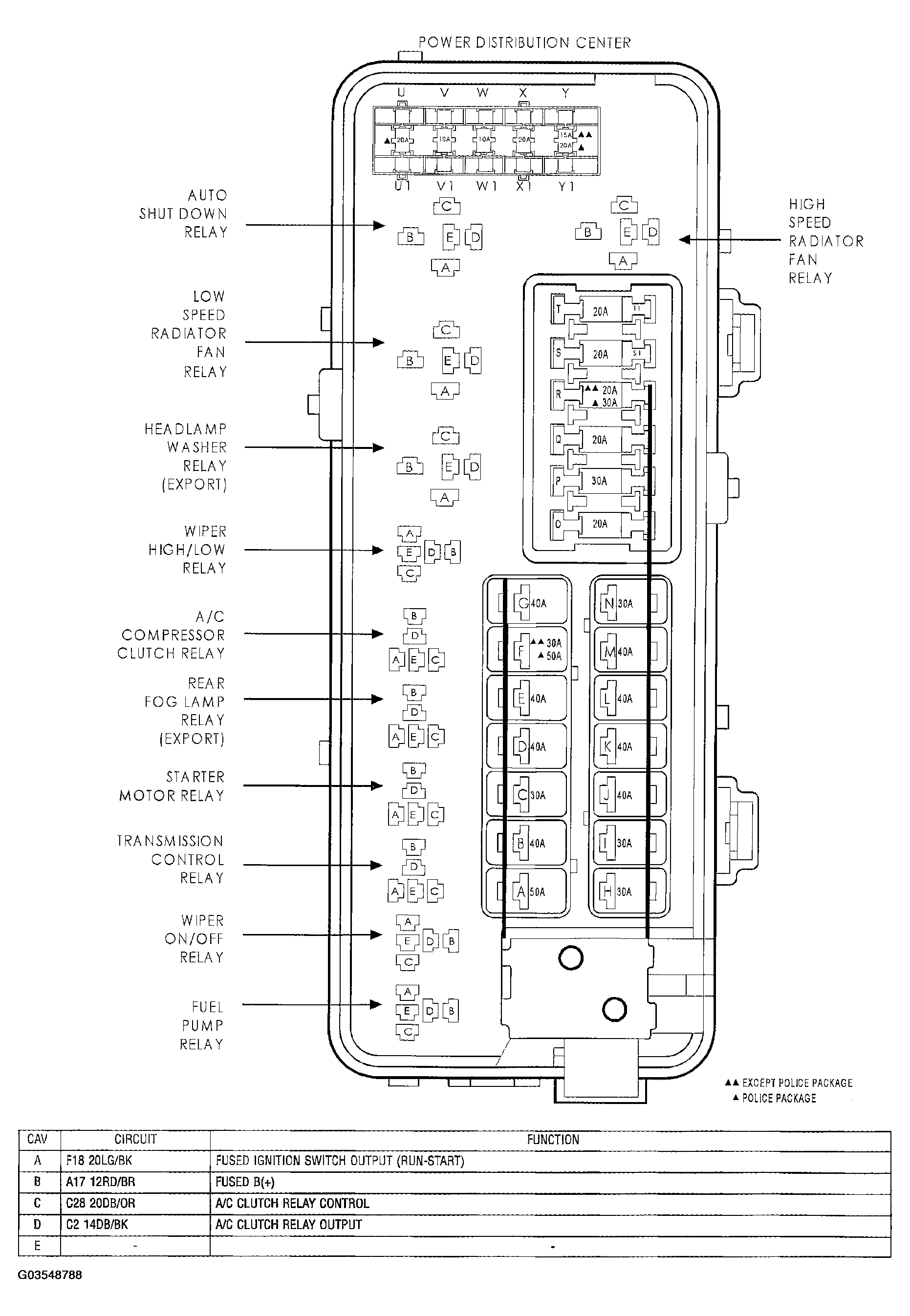

Fig 96: Identifying A/C Compressor Clutch Relay Connector Pinouts

G03548788

Courtesy of DAIMLERCHRYSLER CORP.

Fig 97: Identifying Powertrain Control Module C1 - Black 38 Way Connector Pinouts

G03548789

Courtesy of DAIMLERCHRYSLER CORP.

Fig 98: Identifying Powertrain Control Module C2 - 38 Way Connector Pinouts

G03548790

Courtesy of DAIMLERCHRYSLER CORP.

Fig 99: Identifying Powertrain Control Module C3 - White 38 Way Connector Pinouts

G03548791

Courtesy of DAIMLERCHRYSLER CORP.

Fig 100: Identifying Powertrain Control Module C4 - Green 38 Way Connector Pinouts

G03548792

Courtesy of DAIMLERCHRYSLER CORP.

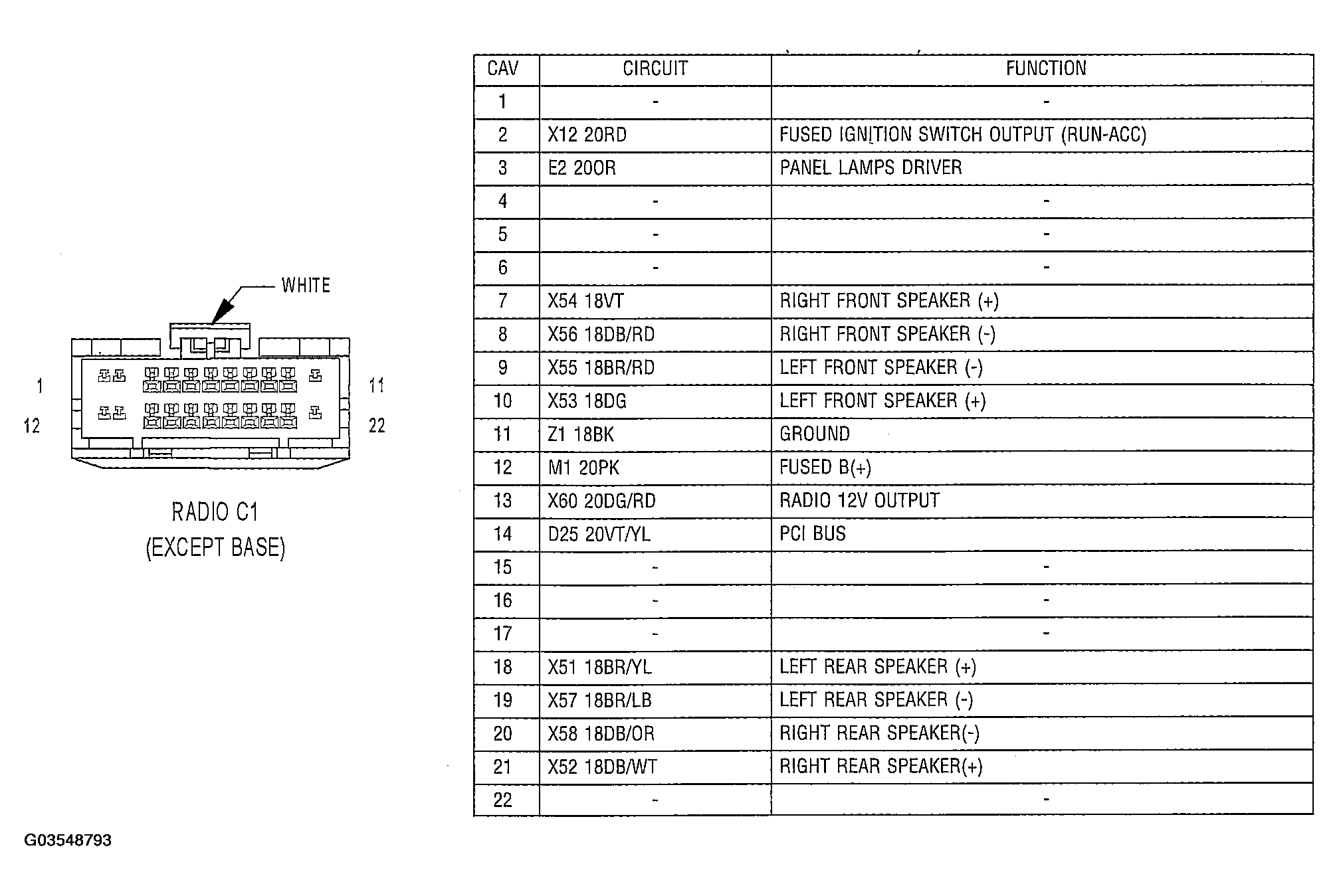

Fig 101: Identifying Radio C1 (Except Base) - White 22 Way Connector Pinouts

G03548793

Courtesy of DAIMLERCHRYSLER CORP.

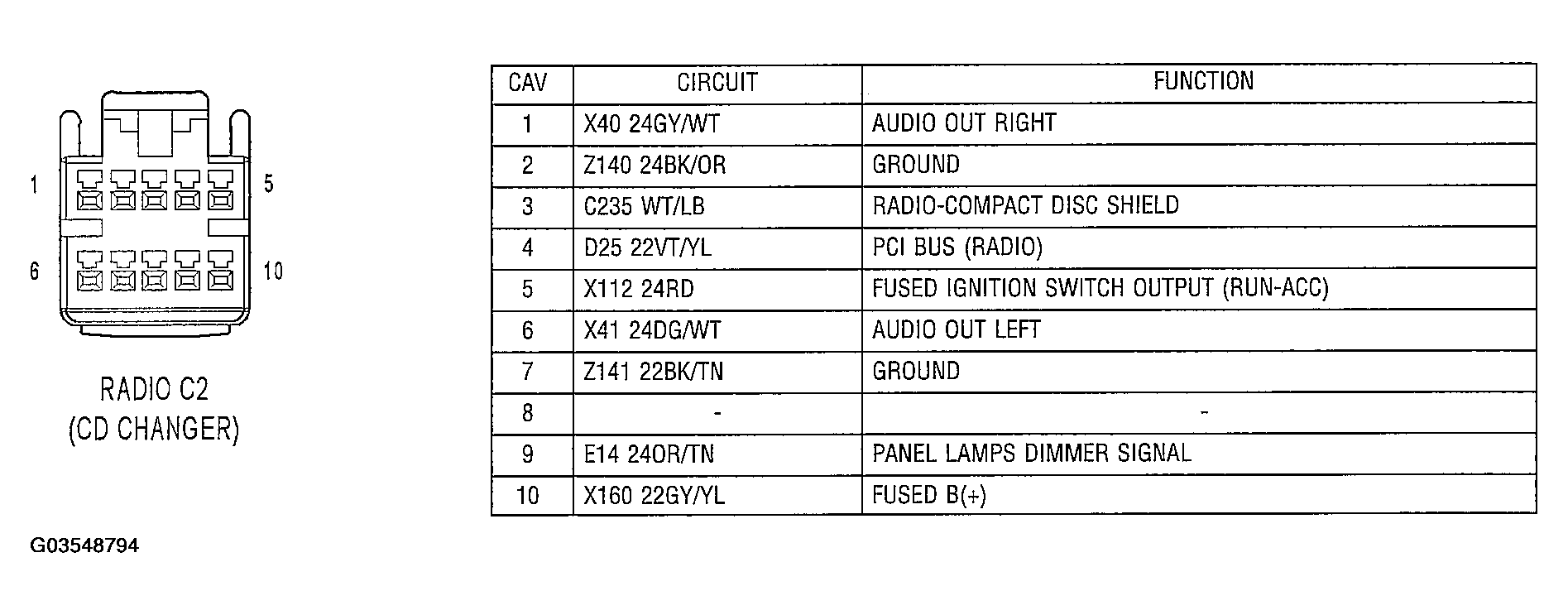

Fig 102: Identifying Radio C2 (Cd Changer) - 10 Way Connector Pinouts

G03548794

Courtesy of DAIMLERCHRYSLER CORP.

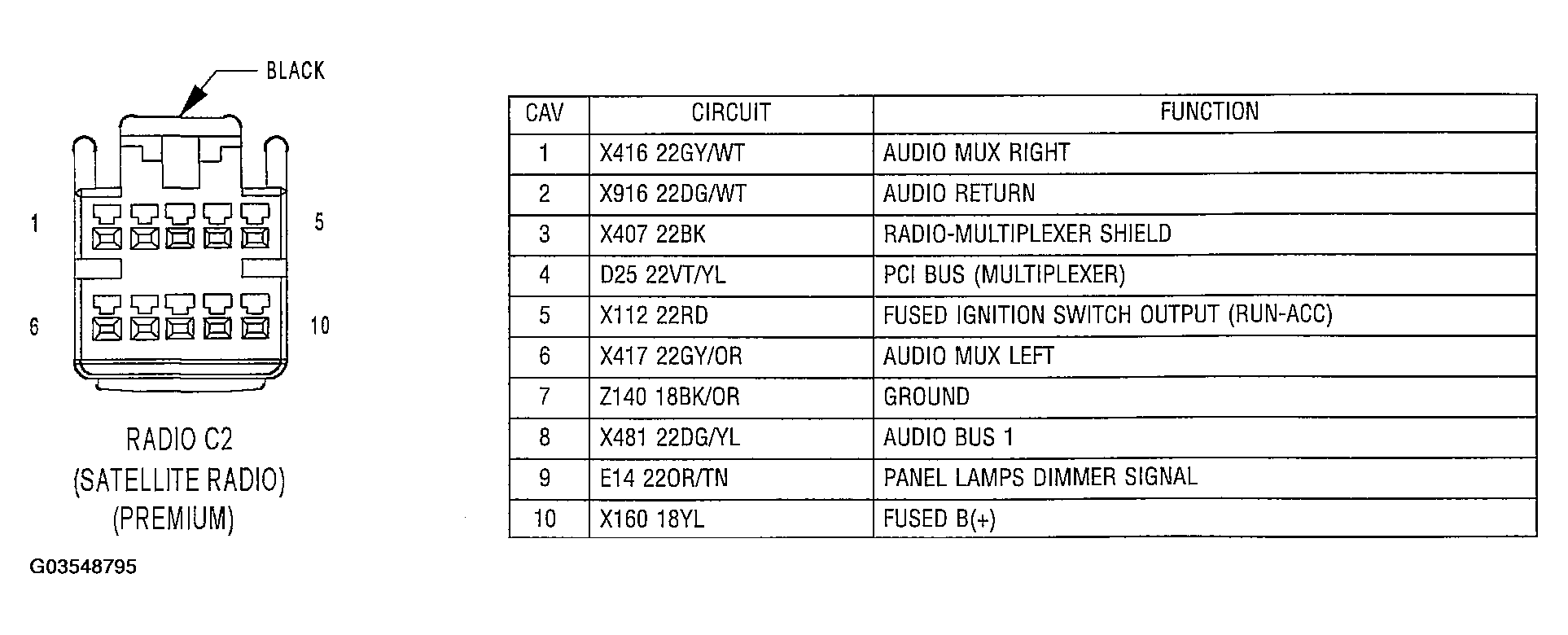

Fig 103: Identifying Radio C2 (Satellite Radio) (Premium) - Black 10 Way Connector Pinouts

G03548795

Courtesy of DAIMLERCHRYSLER CORP.

Fig 104: Identifying Rear Window Defogger Relay - Natural 9 Way Connector Pinouts

G03548796

Courtesy of DAIMLERCHRYSLER CORP.

Fig 105: Identifying Rear Window Defogger/Antenna Module - Black 3 Way Connector Pinouts

G03548797

Courtesy of DAIMLERCHRYSLER CORP.

Fig 106: Identifying Recirculation Door Actuator - Natural 5 Way Connector Pinouts

G03548798

Courtesy of DAIMLERCHRYSLER CORP.

Fig 107: Identifying Right Front Door Sail Speaker - Black 2 Way Connector Pinouts

G03548799

Courtesy of DAIMLERCHRYSLER CORP.

Fig 108: Identifying Right Front Door Speaker - 3 Way Connector Pinouts

G03548800

Courtesy of DAIMLERCHRYSLER CORP.

Fig 109: Identifying Right Horn - Black 2 Way Connector Pinouts

G03548801

Courtesy of DAIMLERCHRYSLER CORP.

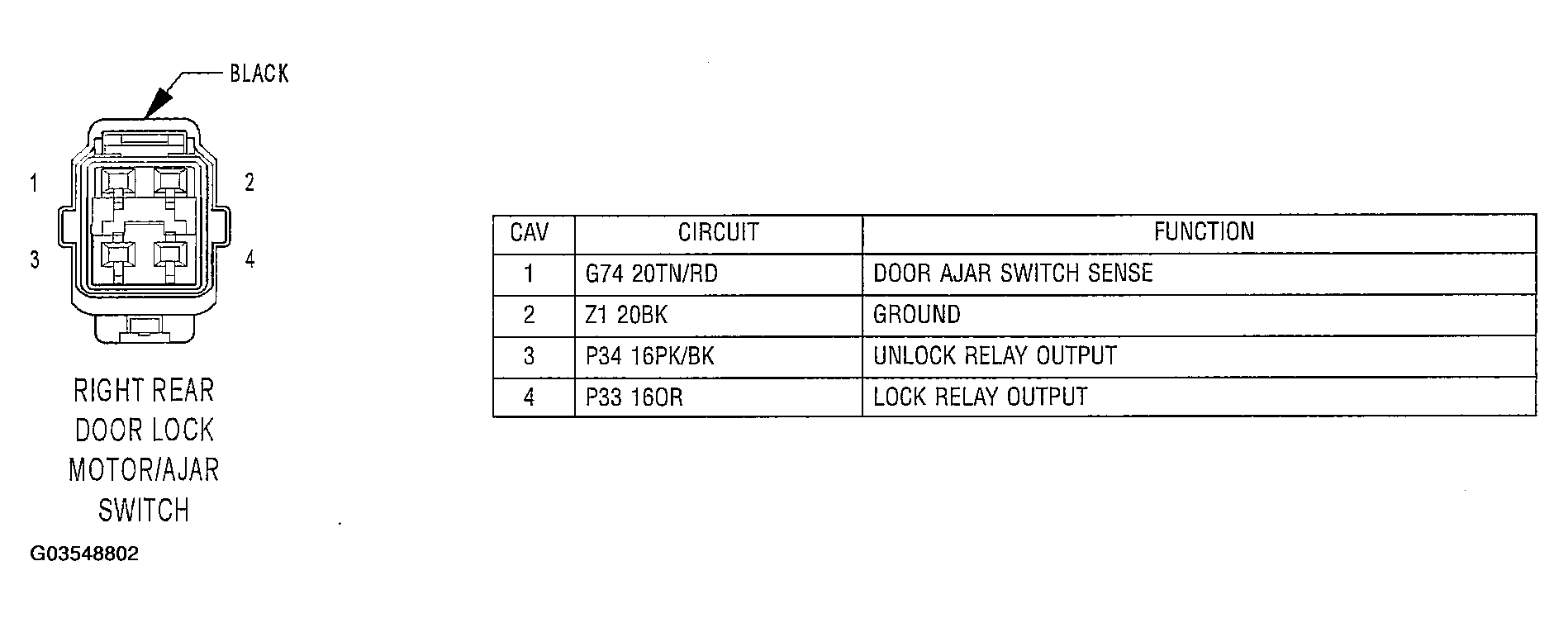

Fig 110: Identifying Right Rear Door Lock Motor/Ajar Switch - Black 4 Way Connector Pinouts

G03548802

Courtesy of DAIMLERCHRYSLER CORP.

Fig 111: Identifying Right Rear Door Speaker - Black 2 Way Connector Pinouts

G03548803

Courtesy of DAIMLERCHRYSLER CORP.

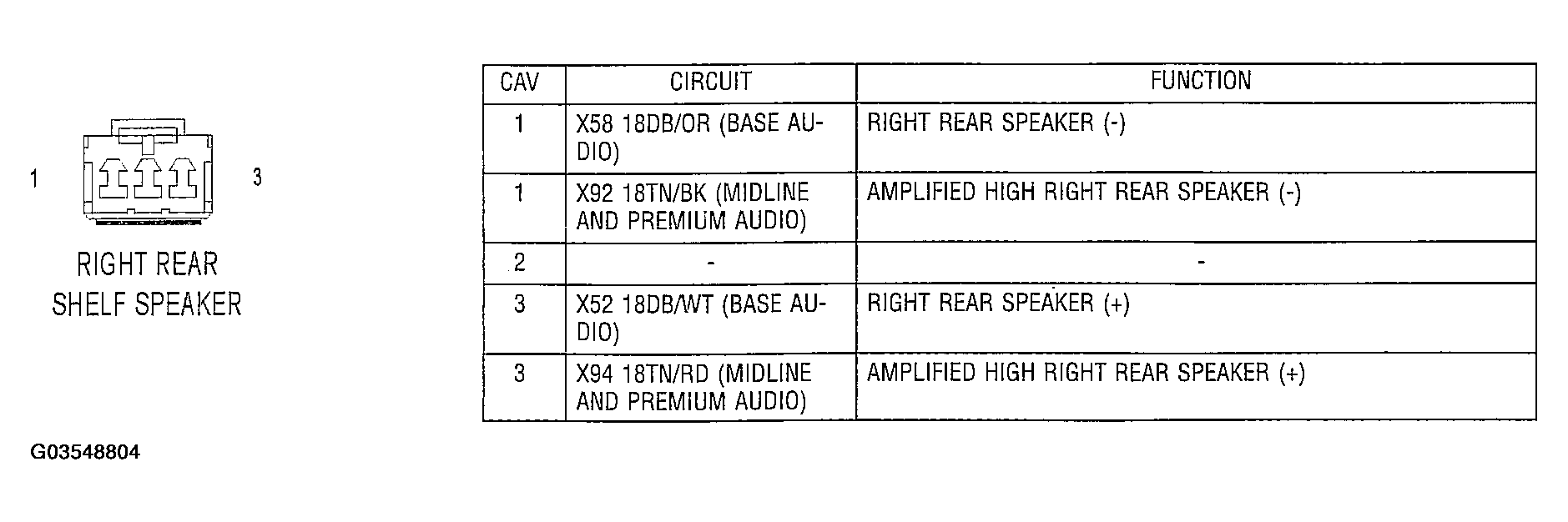

Fig 112: Identifying Right Rear Shelf Speaker - 3 Way Connector Pinouts

G03548804

Courtesy of DAIMLERCHRYSLER CORP.

Fig 113: Identifying Right Remote Radio Switch - Black 2 Way Connector Pinouts

G03548805

Courtesy of DAIMLERCHRYSLER CORP.

Fig 114: Identifying Right Seat Airbag Squib - Yellow 2 Way Connector Pinouts

G03548806

Courtesy of DAIMLERCHRYSLER CORP.

Fig 115: Identifying Right Side Impact Airbag Control Module - Yellow 6 Way Connector Pinouts

G03548807

Courtesy of DAIMLERCHRYSLER CORP.

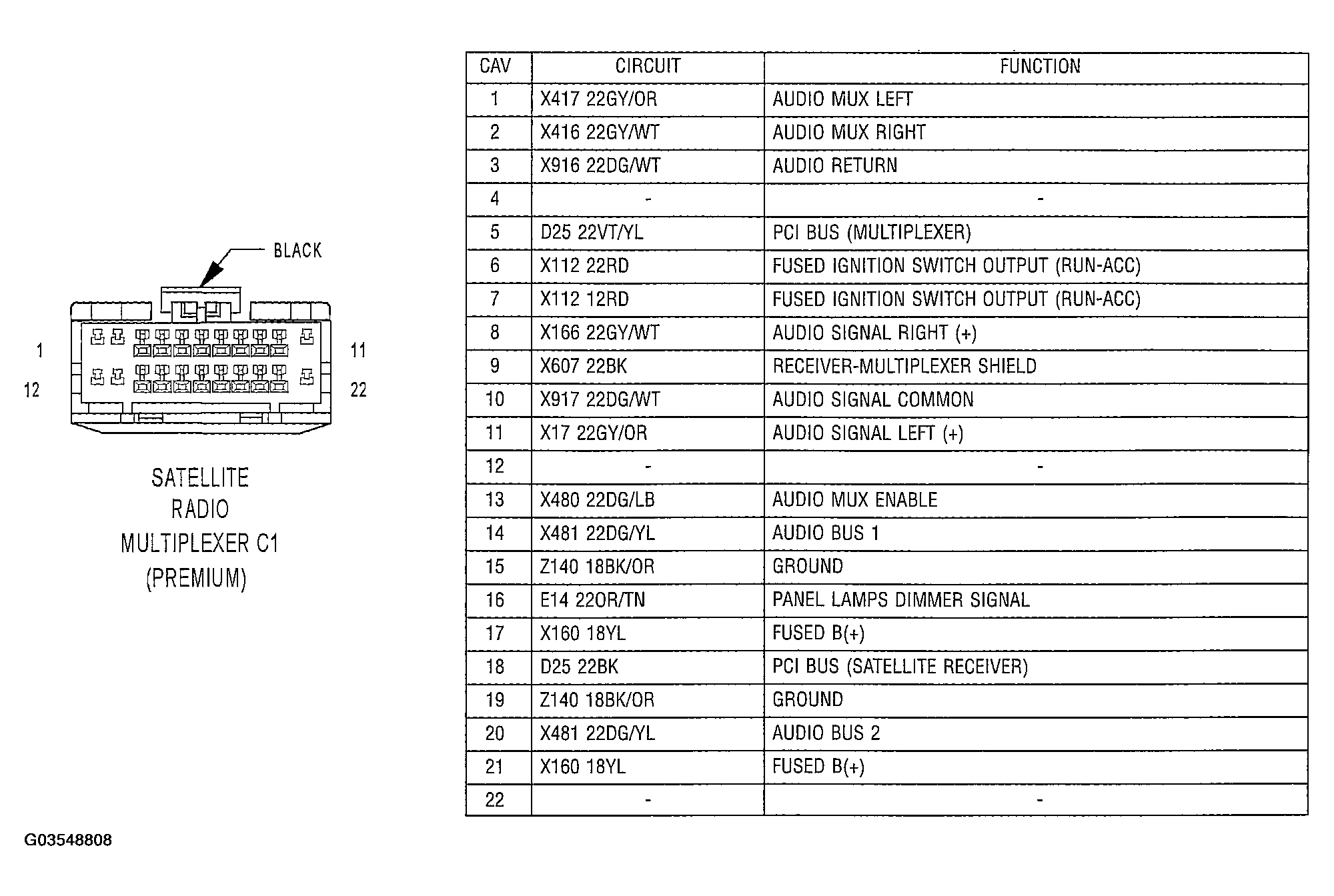

Fig 116: Identifying Satellite Radio Multiplexer C1 (Premium) - Black 22 Way Connector Pinouts

G03548808

Courtesy of DAIMLERCHRYSLER CORP.

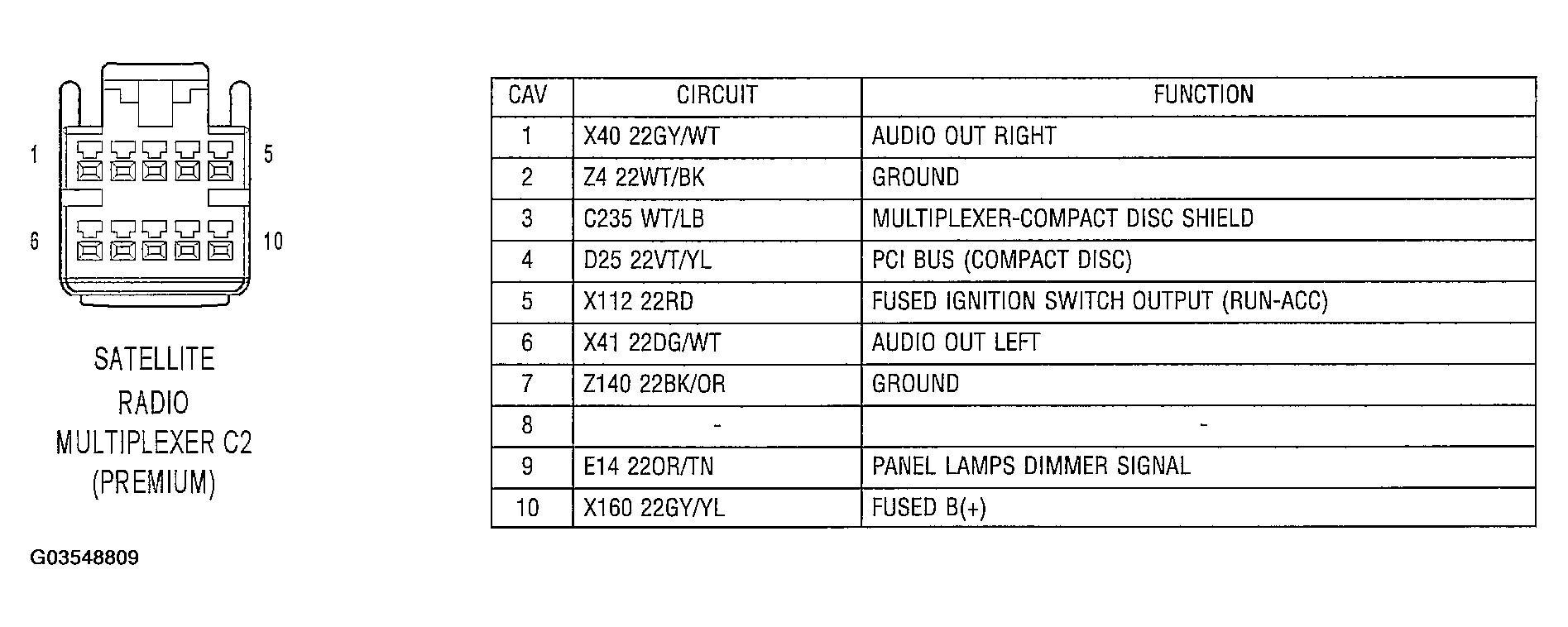

Fig 117: Identifying Satellite Radio Multiplexer C2 (Premium) - 10 Way Connector Pinouts

G03548809

Courtesy of DAIMLERCHRYSLER CORP.

Fig 118: Identifying Satellite Receiver Module C1 (Premium) - Black 12 Way Connector Pinouts

G03548810

Courtesy of DAIMLERCHRYSLER CORP.

Fig 119: Identifying Seat Belt Switch - Black 2 Way Connector Pinouts

G03548811

Courtesy of DAIMLERCHRYSLER CORP.

Fig 120: Identifying Sentry Key Immobilizer Module - Black 6 Way Connector Pinouts

G03548812

Courtesy of DAIMLERCHRYSLER CORP.

Fig 121: Identifying Sun Sensor/VTSS LED - Black 4 Way Connector Pinouts

G03548813

Courtesy of DAIMLERCHRYSLER CORP.

Fig 122: Identifying Trunk Knock Out Switch - Natural 2 Way Connector Pinouts

G03548814

Courtesy of DAIMLERCHRYSLER CORP.

Fig 123: Identifying Washer Fluid Level Sensor - Gray 2 Way Connector Pinouts

G03548815

Courtesy of DAIMLERCHRYSLER CORP.
