Compact Disc Changer Connector End View

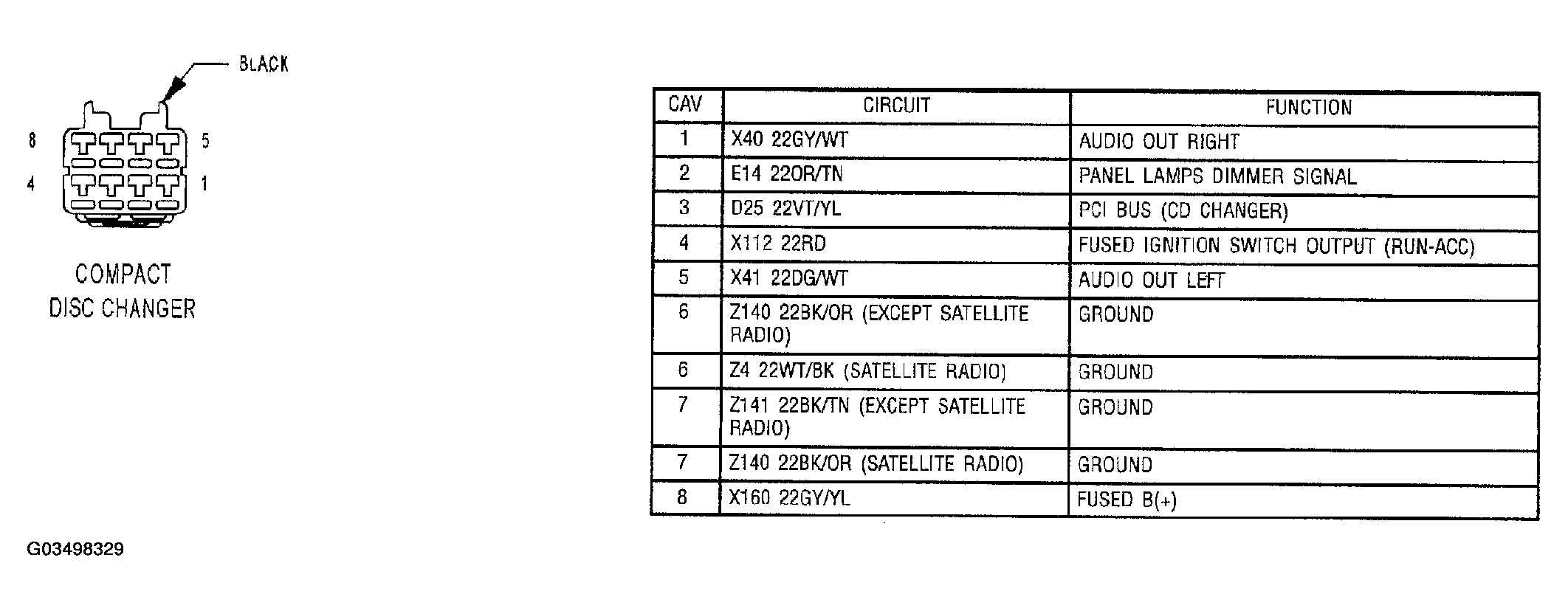

Fig 1: Compact Disc Changer Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
