DECKLID Release Solenoid/Ajar Switch Connector End View

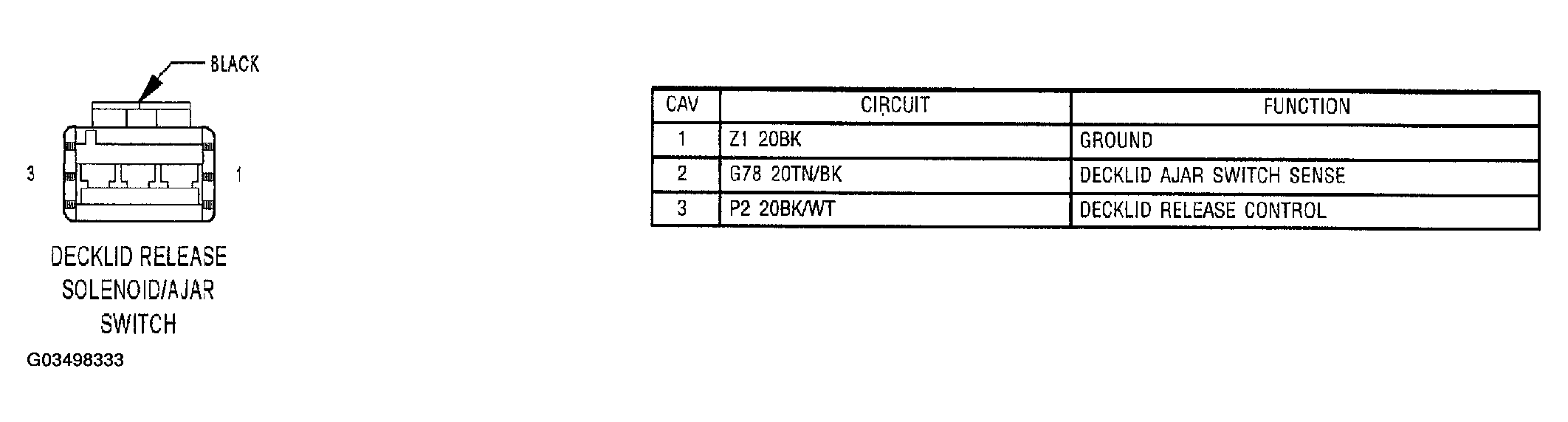

Fig 1: Decklid Release Solenoid/Ajar Switch Connector End View
G03498333Courtesy of DAIMLERCHRYSLER CORP.
