Engine Mounting: Description

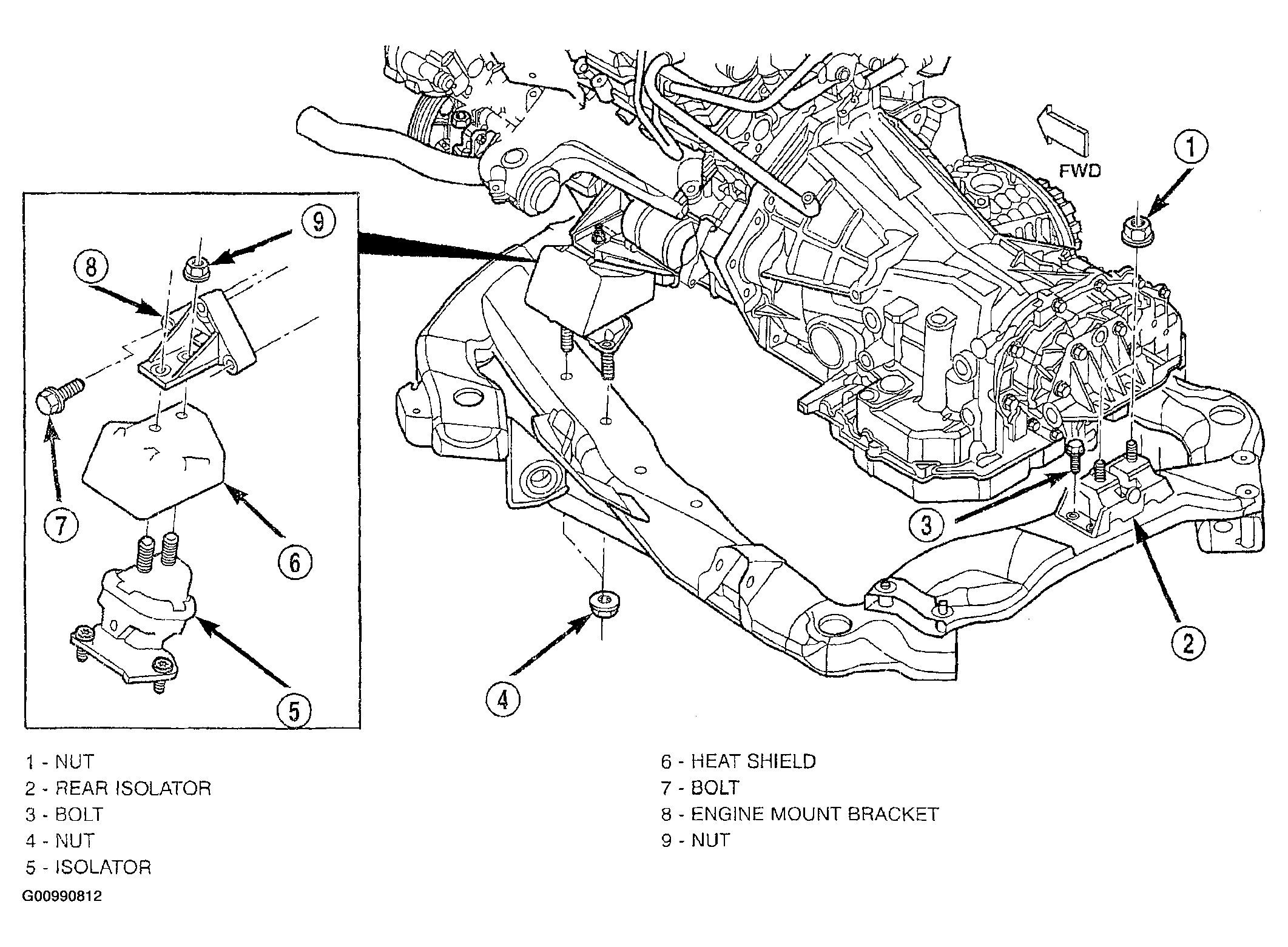

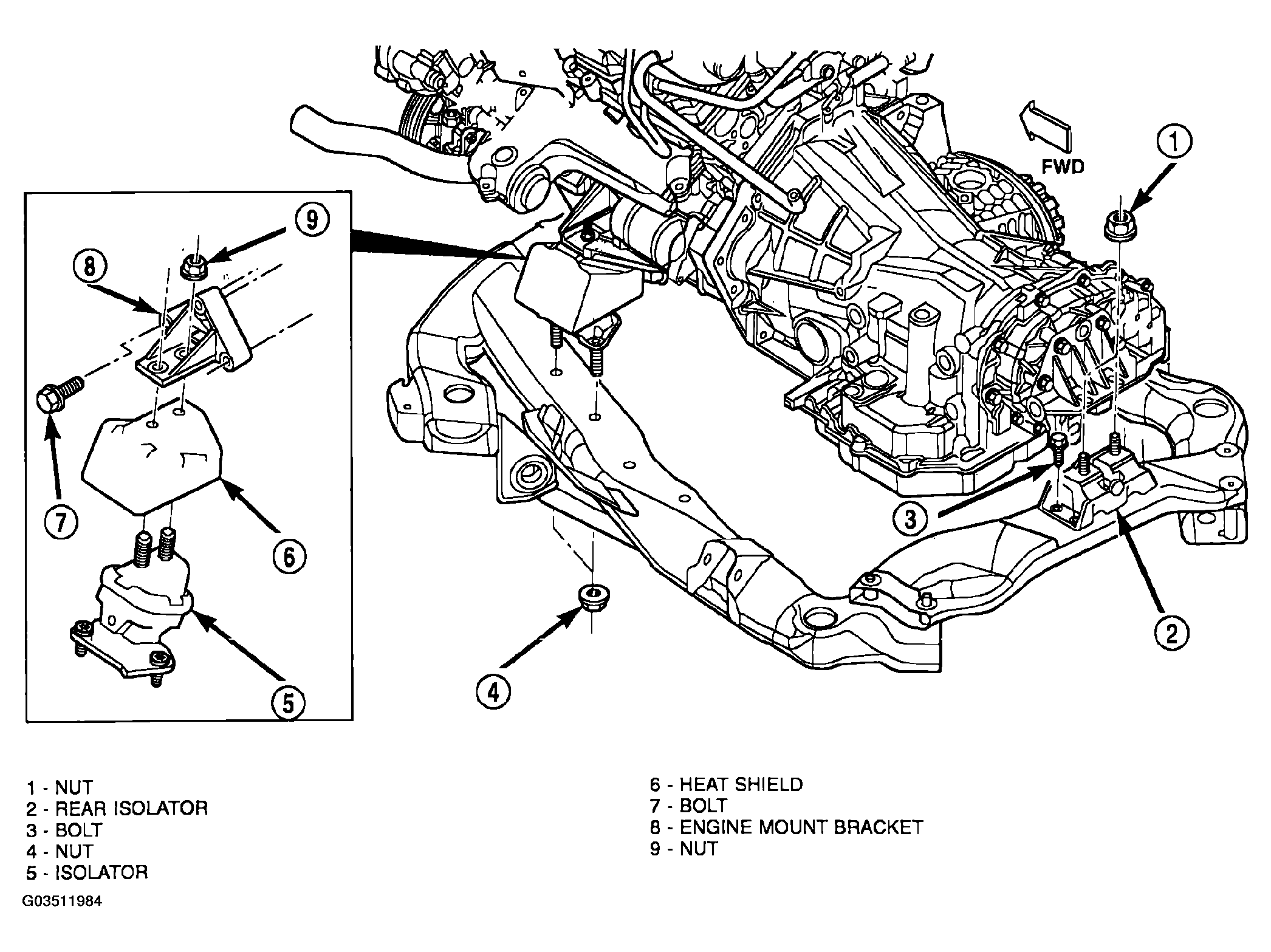

The engine mounting system consist of three mounts; two hydro-type mounts are attached to the right and left side of the engine block, and one molded rubber type rear mount is attached to the transaxle (Fig 1 ). All three mounts attach to the suspension crossmember/engine cradle.
The engine hydro-type mounts contain a liquid that is encased in a solid rubber housing.
