CLOCKSPRING C3 Connector End View

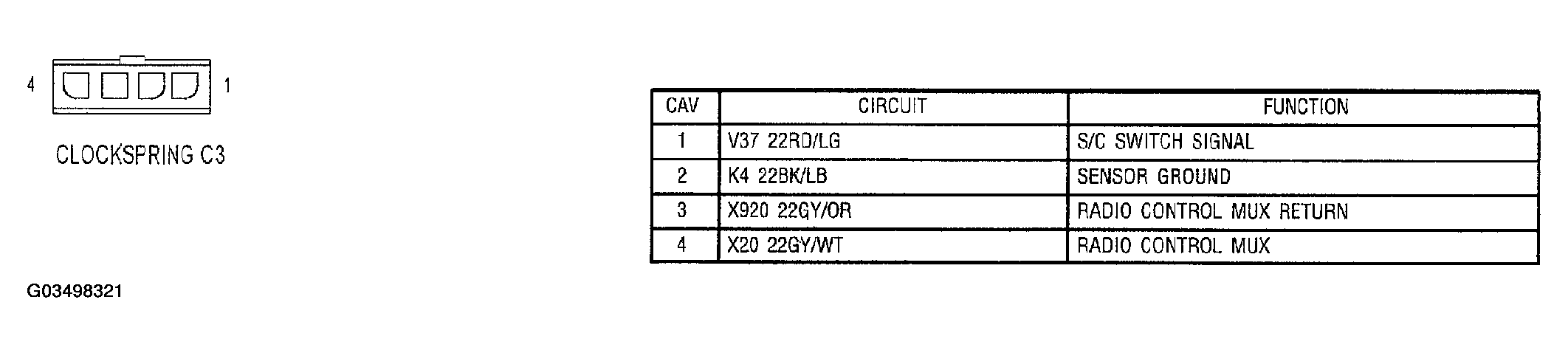

Fig 1: Clockspring Connector End View (C3)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
