AUTOSTICK Switch Connector End View

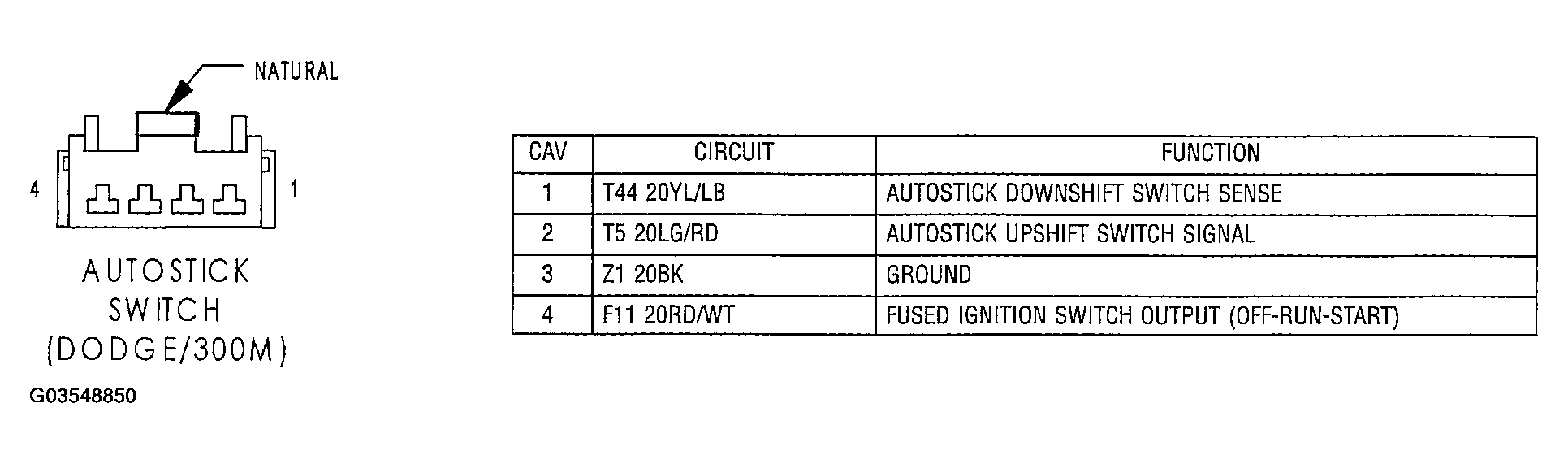

Fig 1: Identifying Autostick Switch Connector Terminals And Specification (DODGE/300M - Natural 4 Way)
G03548850Courtesy of DAIMLERCHRYSLER CORP.
