Data Link Connector Connector End View

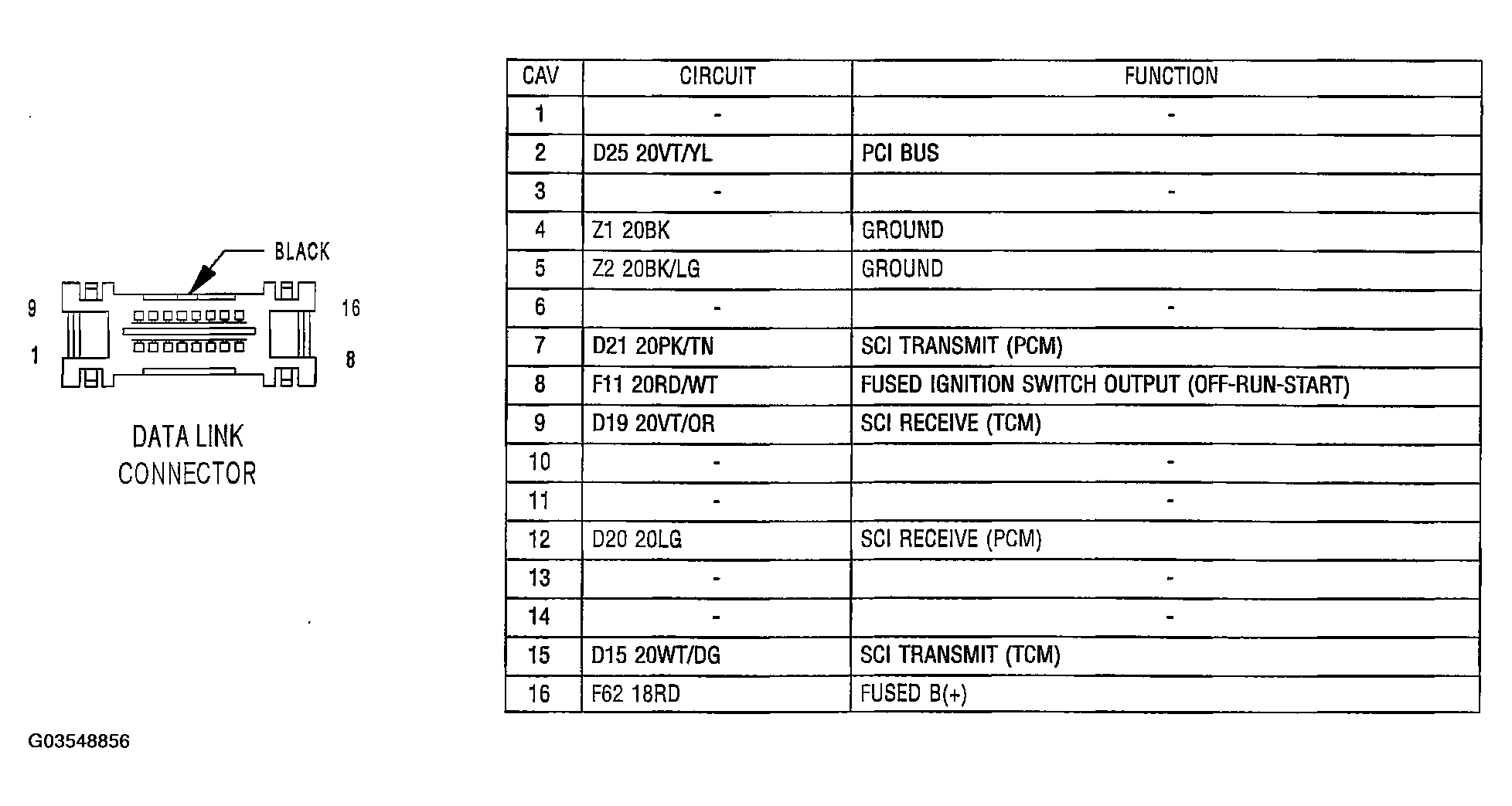

Fig 1: Identifying Data Link Connector Terminals And Specification (Black 16 Way)
G03548856Courtesy of DAIMLERCHRYSLER CORP.
