Circuit Schematic

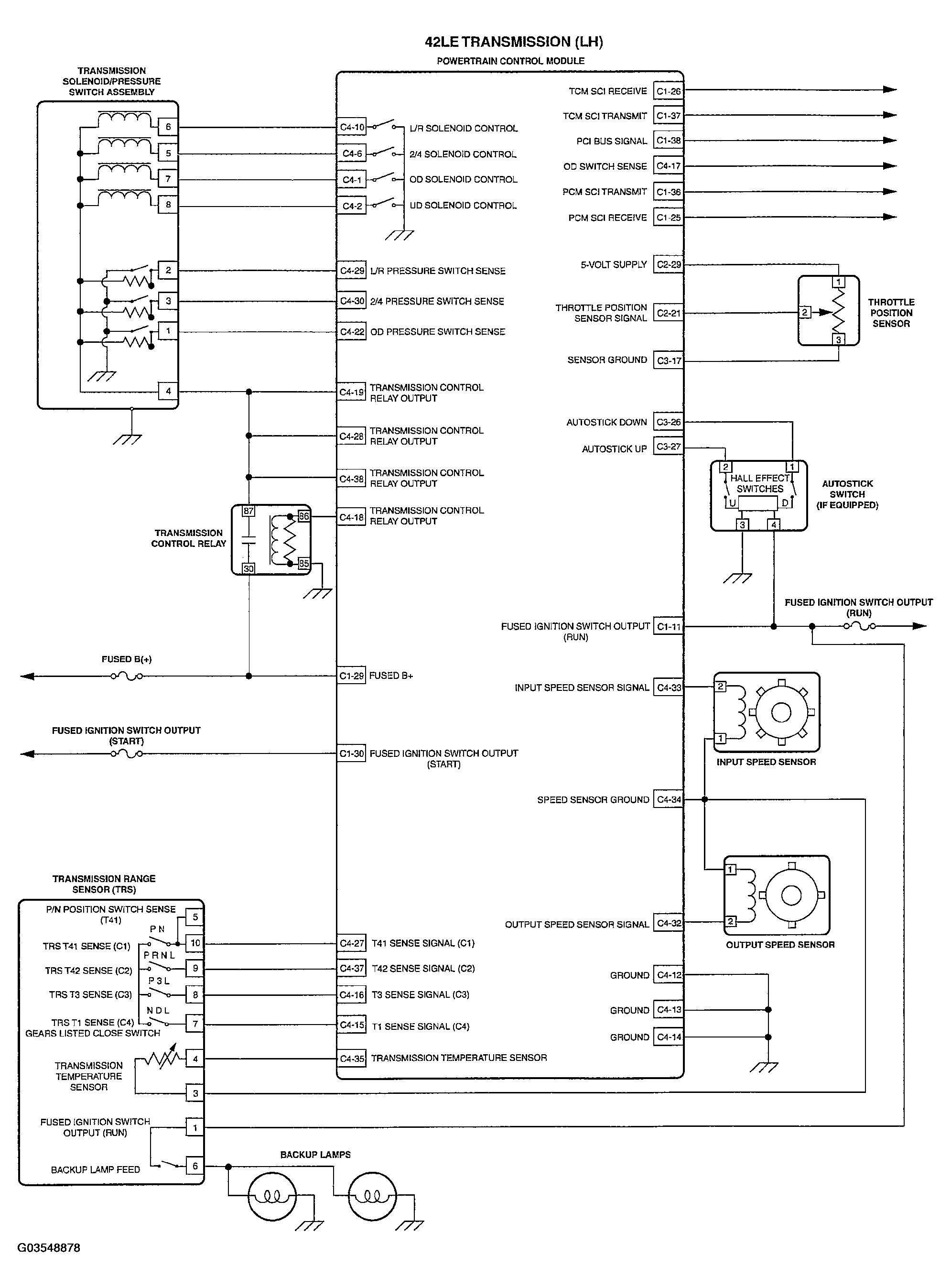

Fig 1: Transmission Schematic Diagrams

G03548878

Courtesy of DAIMLERCHRYSLER CORP.
