PT Cruiser Base, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector End Views
>>
Ignition Switch C1 Connector End View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Ignition Switch C1 Connector End View

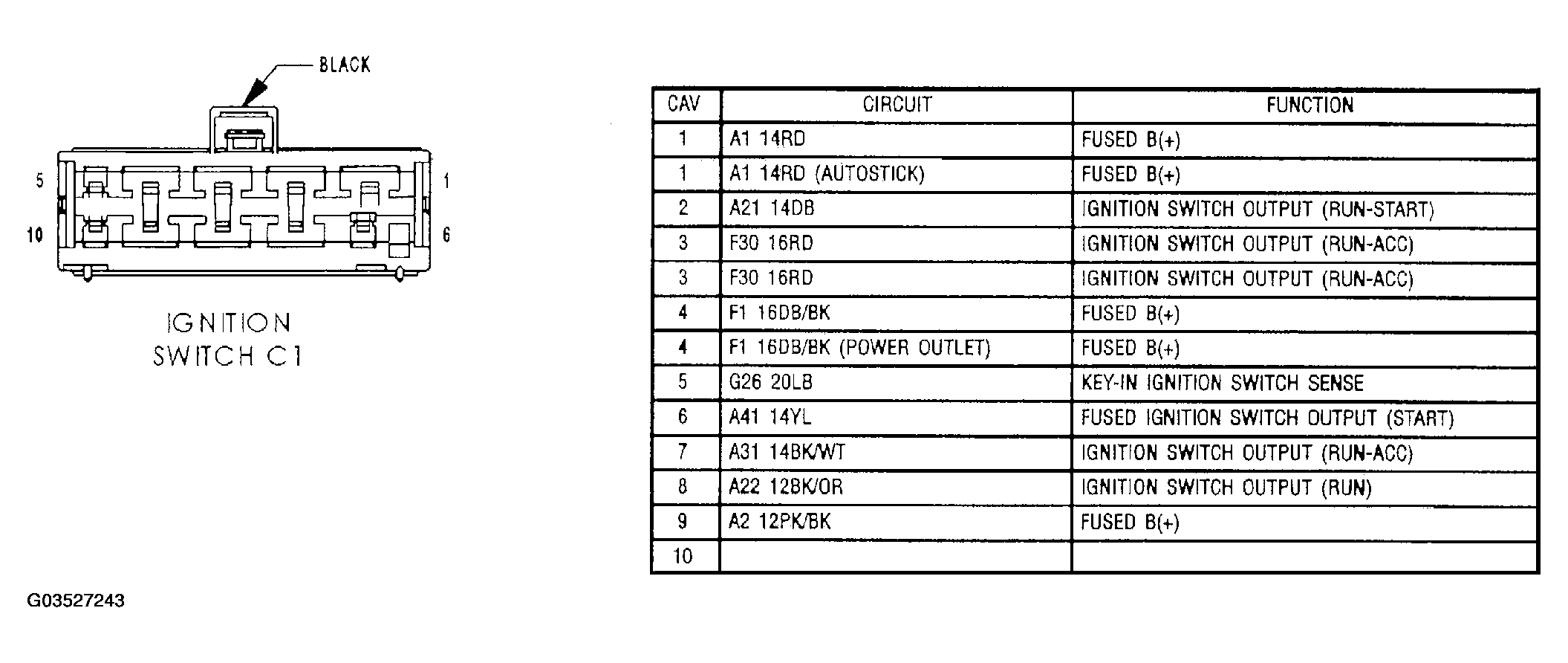

Fig 1: Ignition Switch Connector End View (C1)
Courtesy of DAIMLERCHRYSLER CORP.
