Right Side Impact Sensor 1 Connector End View

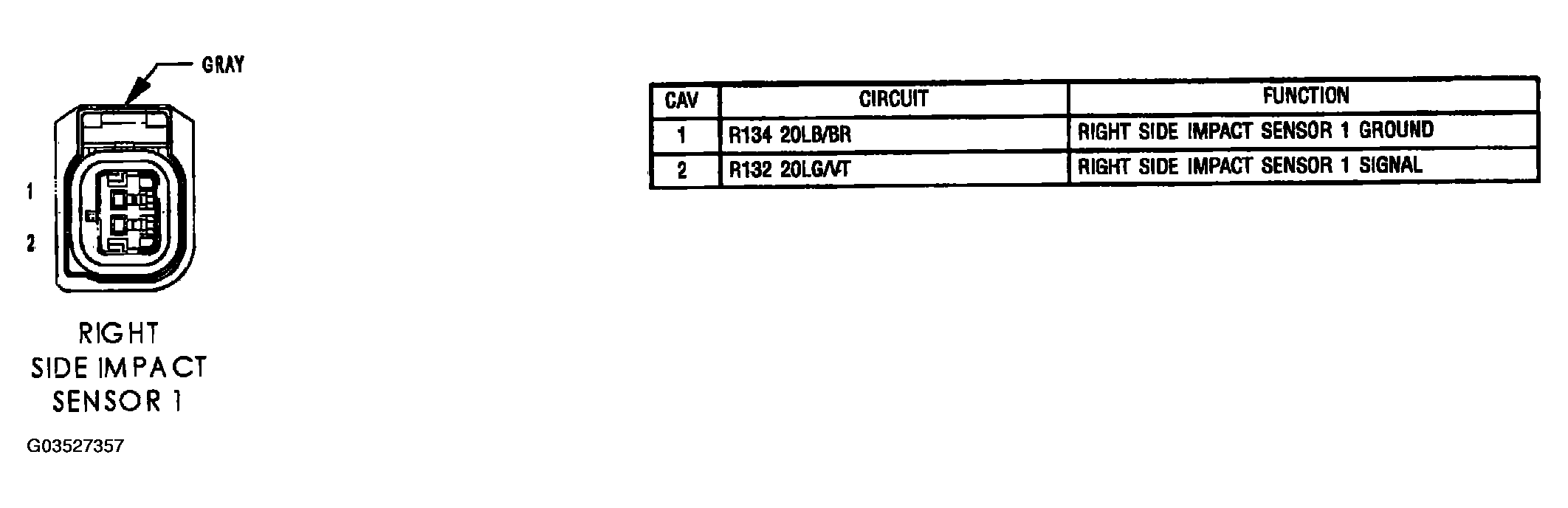

Fig 1: Right Side Impact Sensor Connector End View (1)
G03527357Courtesy of DAIMLERCHRYSLER CORP.
