Left Headlamp Leveling Module (Export) Connector End View

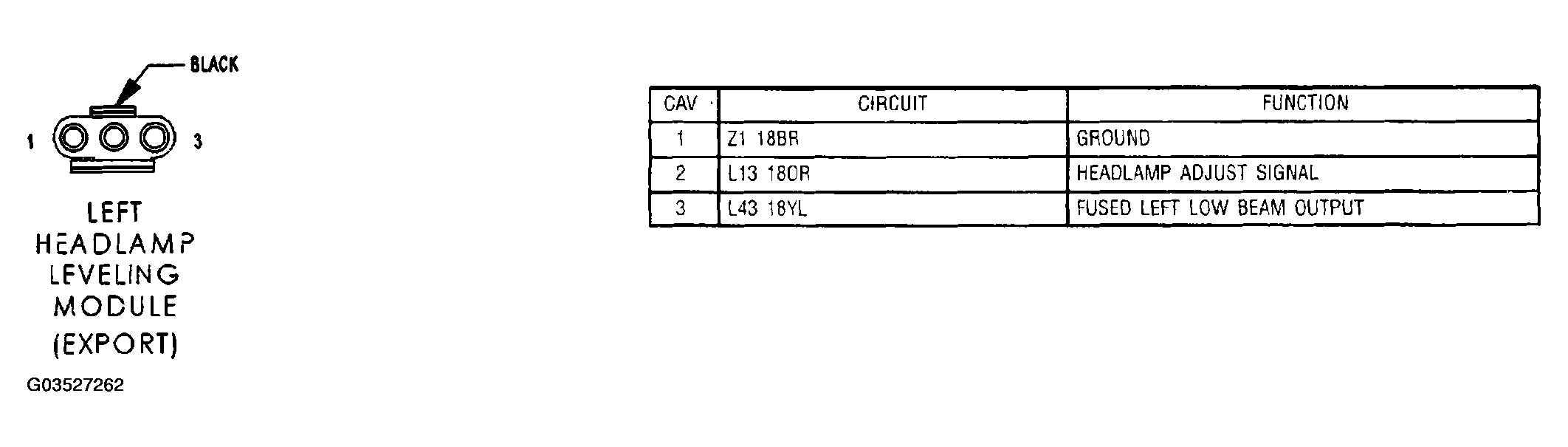

Fig 1: Left Headlamp Leveling Module (Export) Connector End View
G03527262Courtesy of DAIMLERCHRYSLER CORP.
