REMOVAL - 2.0, 2.4, and 2.4L Turbo

Disconnect the negative battery cable.
Lift vacuum line out from behind the upper support bracket.

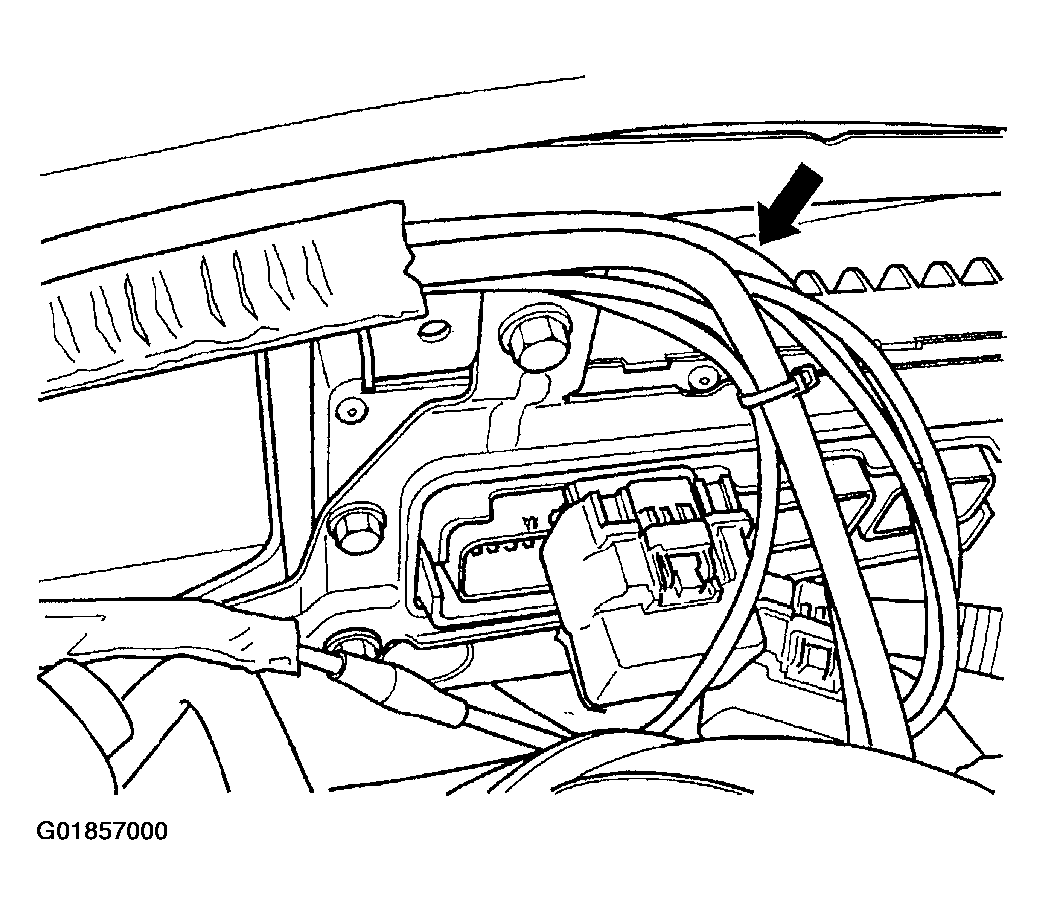

Fig 1: Locating Vacuum Lines (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

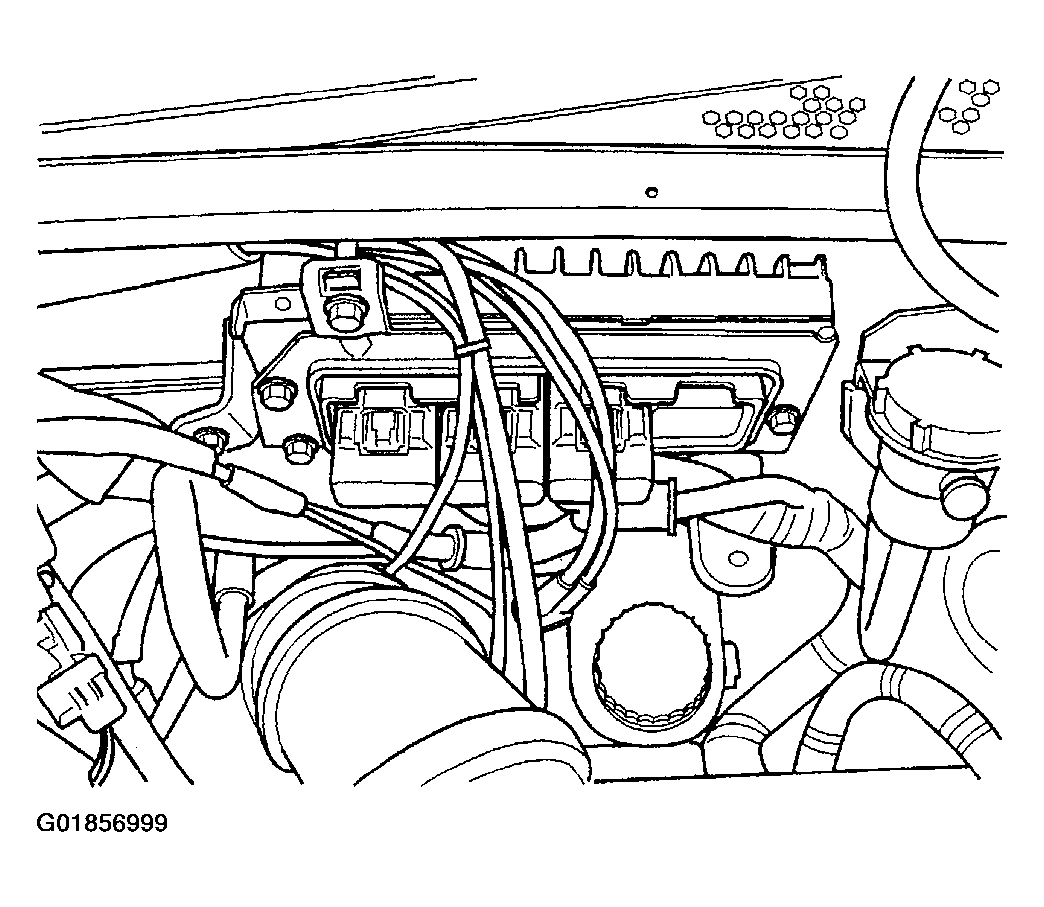

Fig 2: Locating Vacuum Lines (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
Unlock and disconnect the 3 or 4 electrical connectors from the Powertrain Control Module (PCM).

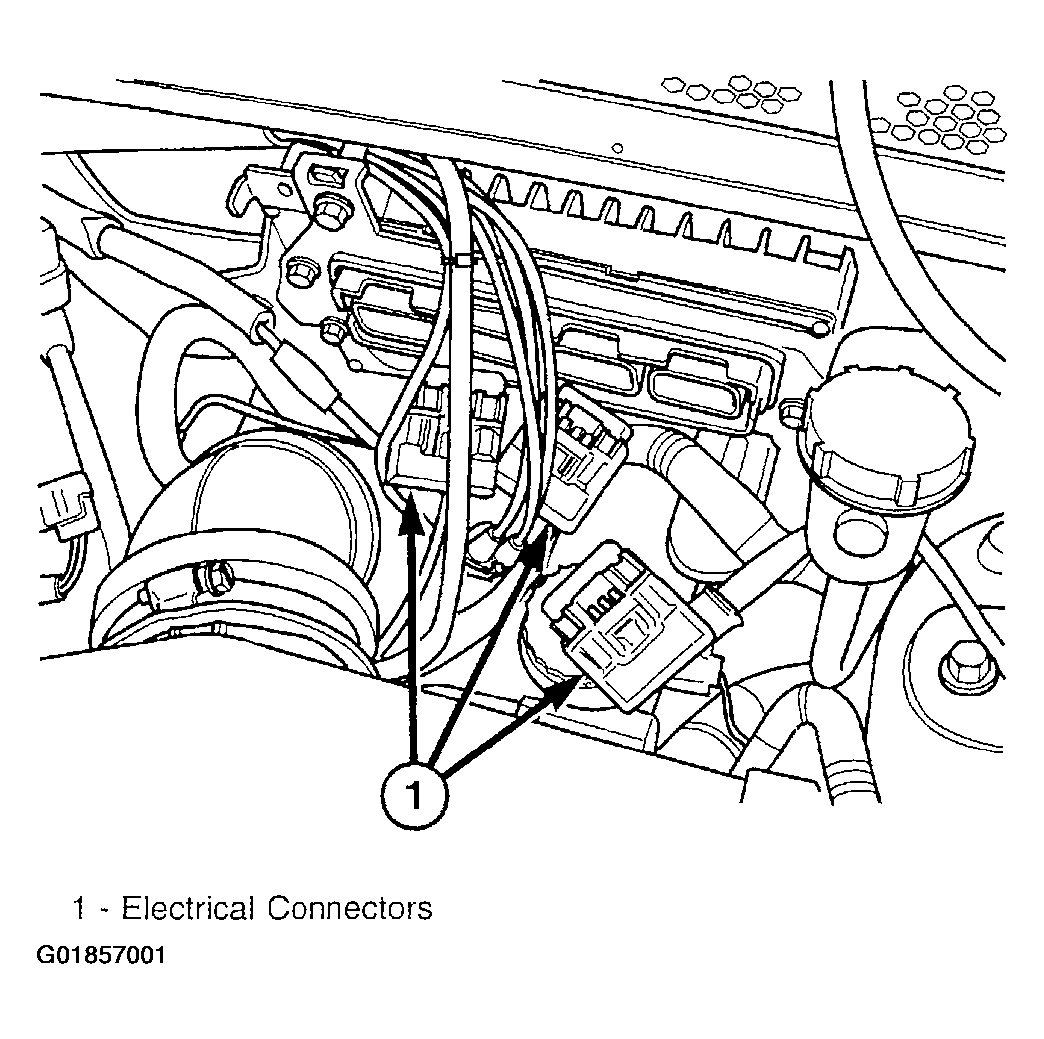

Fig 3: Disconnecting Electrical Connectors
Courtesy of DAIMLERCHRYSLER CORP.
Remove the clutch reservoir and relocate.

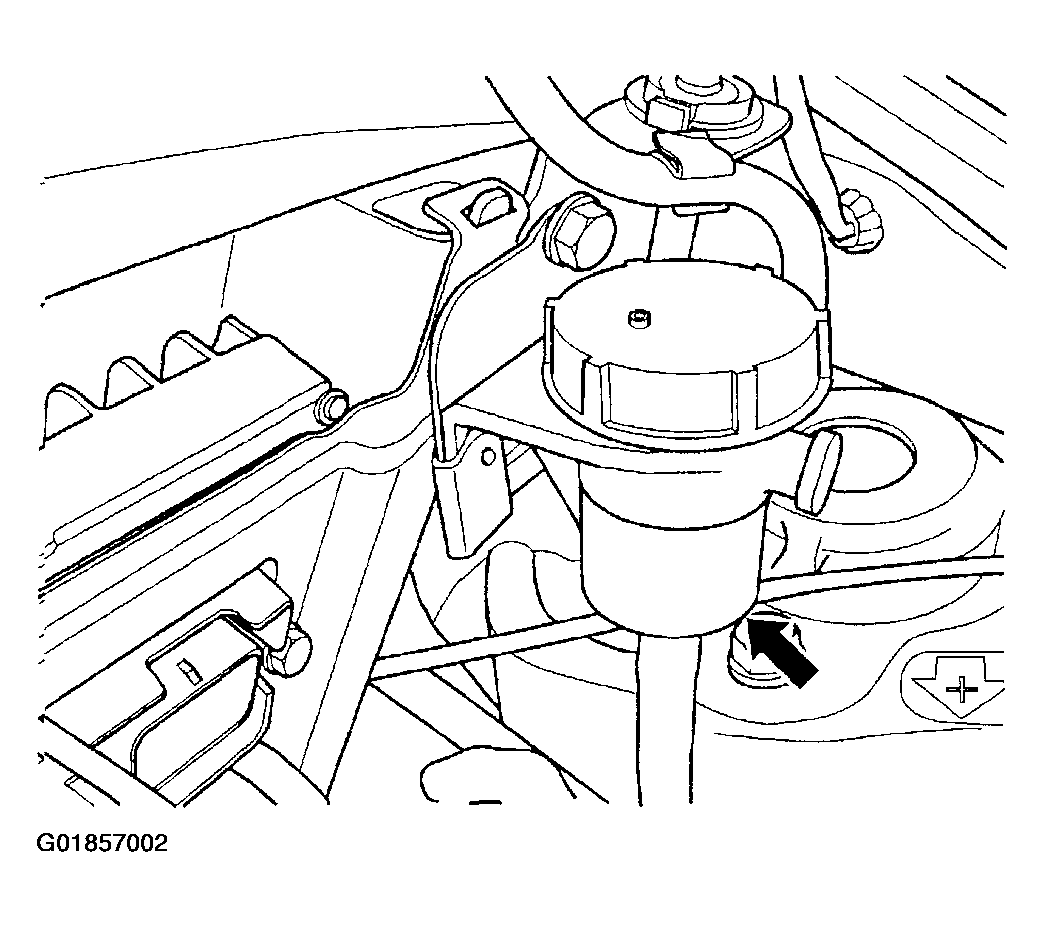

Fig 4: Removing Clutch Reservoir
Courtesy of DAIMLERCHRYSLER CORP.
Remove the 3 mounting screws from the PCM mounting bracket and remove PCM and bracket assembly.

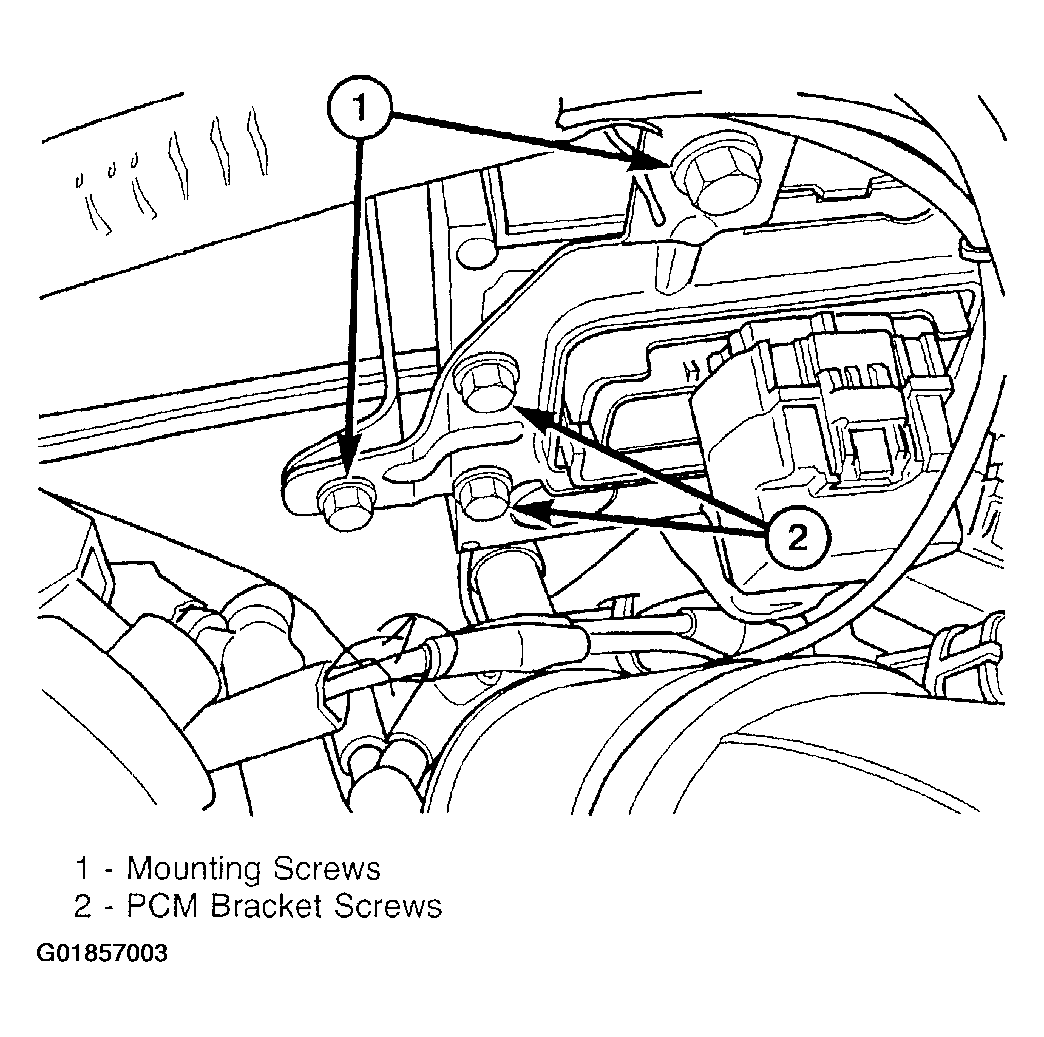

Fig 5: Removing PCM Mounting Screws
Courtesy of DAIMLERCHRYSLER CORP.

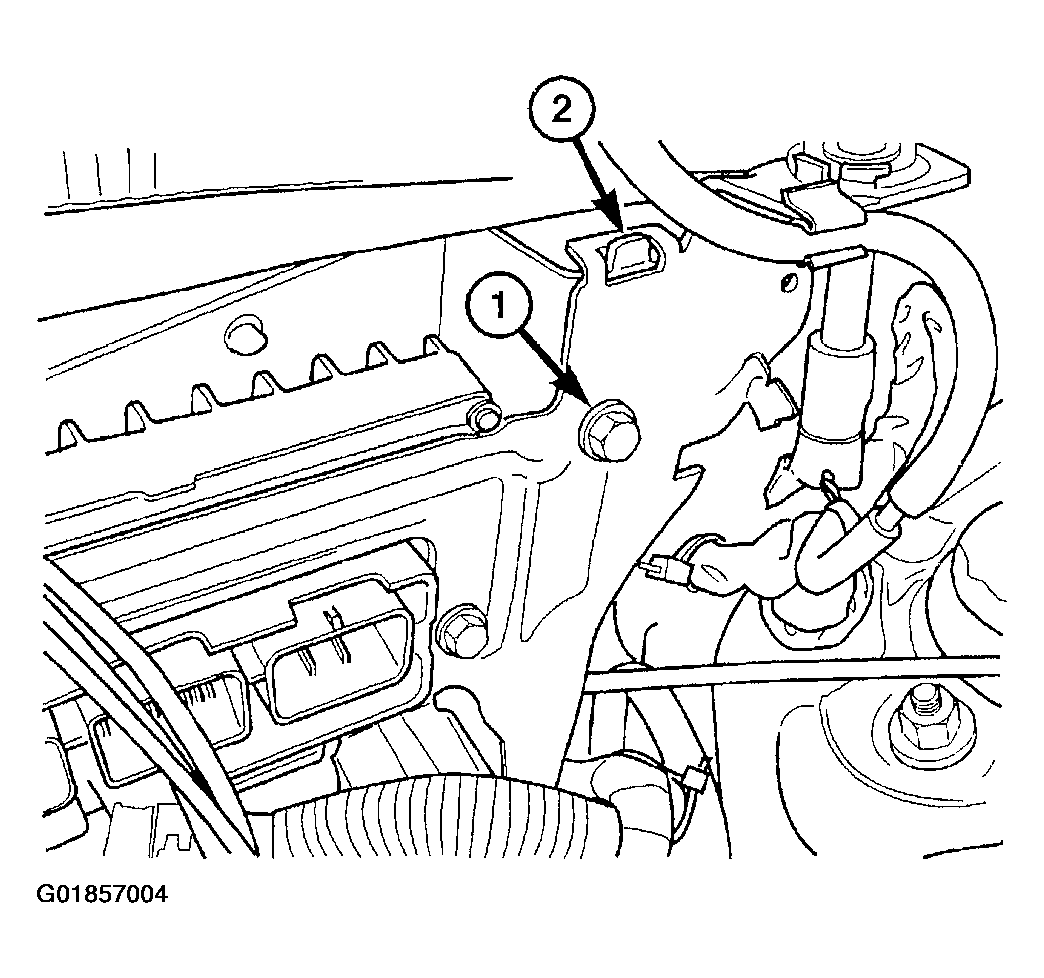

Fig 6: Removing PCM Mounting Screw & Locating Tab
Courtesy of DAIMLERCHRYSLER CORP.

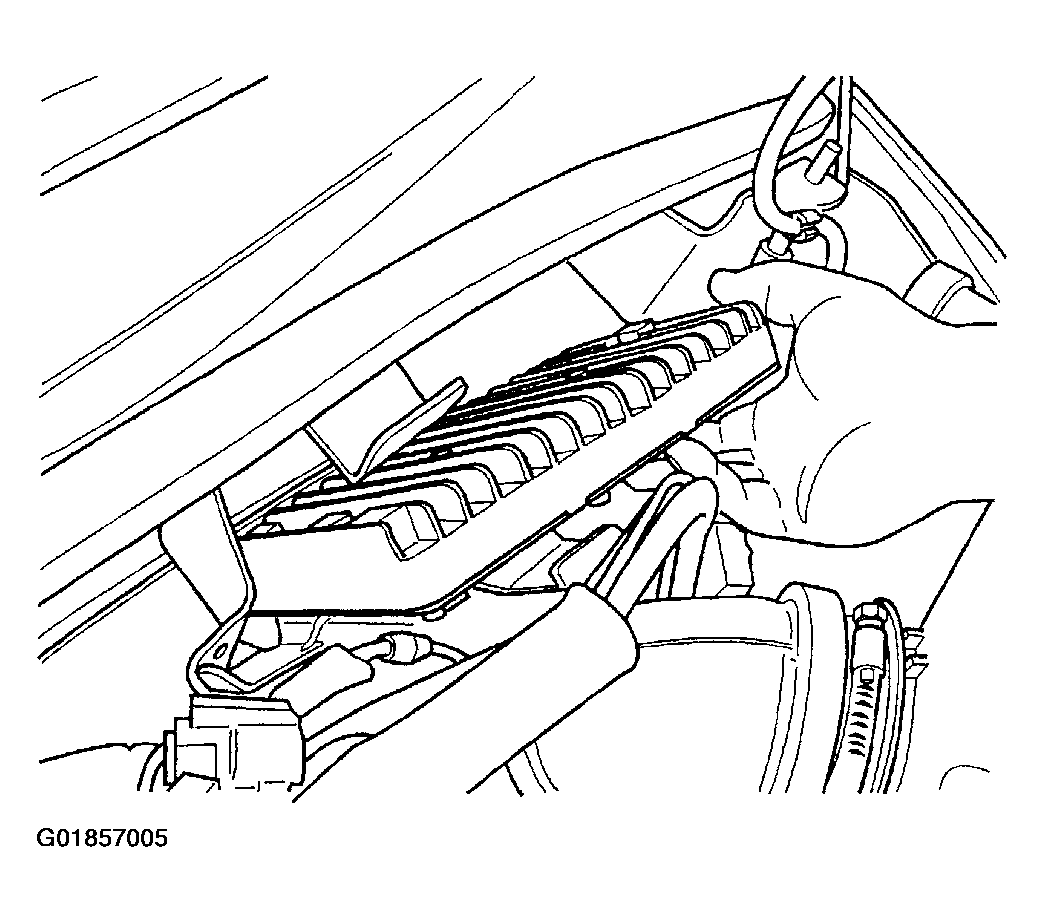

Fig 7: Removing & Installing PCM
Courtesy of DAIMLERCHRYSLER CORP.
Remove the 3 screws from the PCM bracket to PCM.

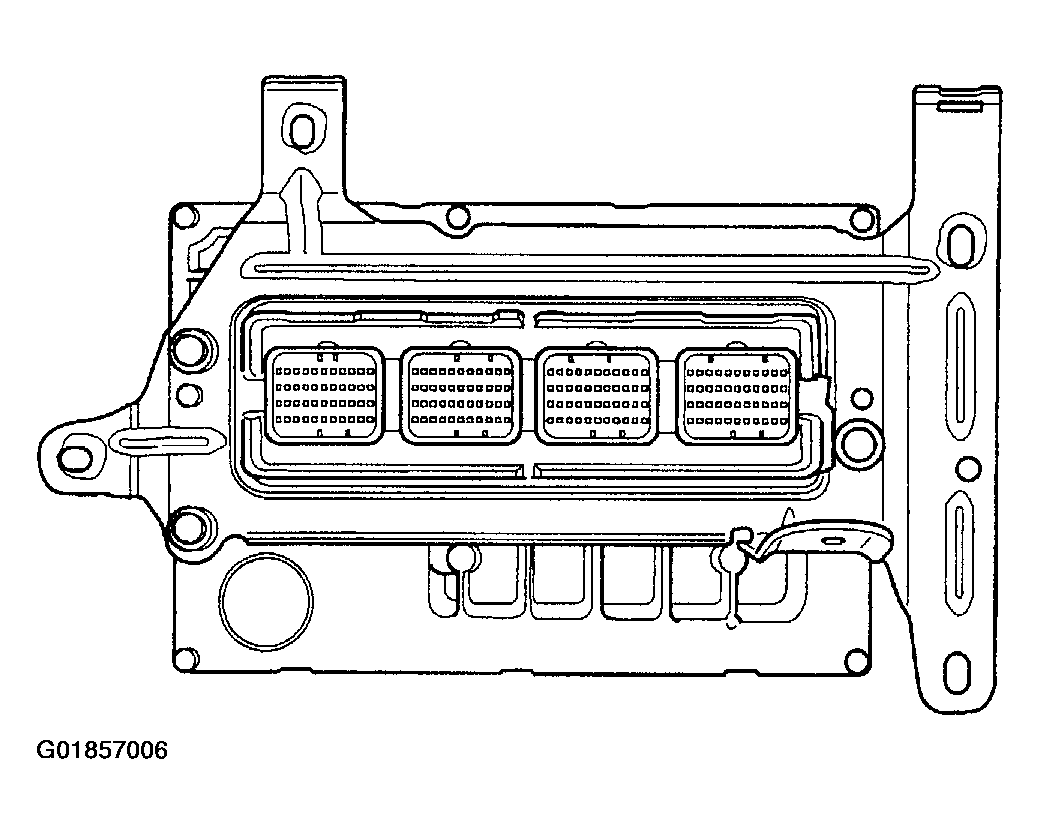

Fig 8: Identifying PCM & Mounting Bracket
Courtesy of DAIMLERCHRYSLER CORP.
