Speed Control: Description

The speed control system is electronically controlled and vacuum operated. The electronic control is integrated into the Powertrain Control Module, located on the left side of the engine compartment next to the air cleaner. The controls are located on the steering wheel and consist of a single switch. The ON, OFF, RESUME, ACCEL, SET, COAST, and CANCEL, lever is located on the right of the steering wheel. For identification and location of the major components (Fig. 2).

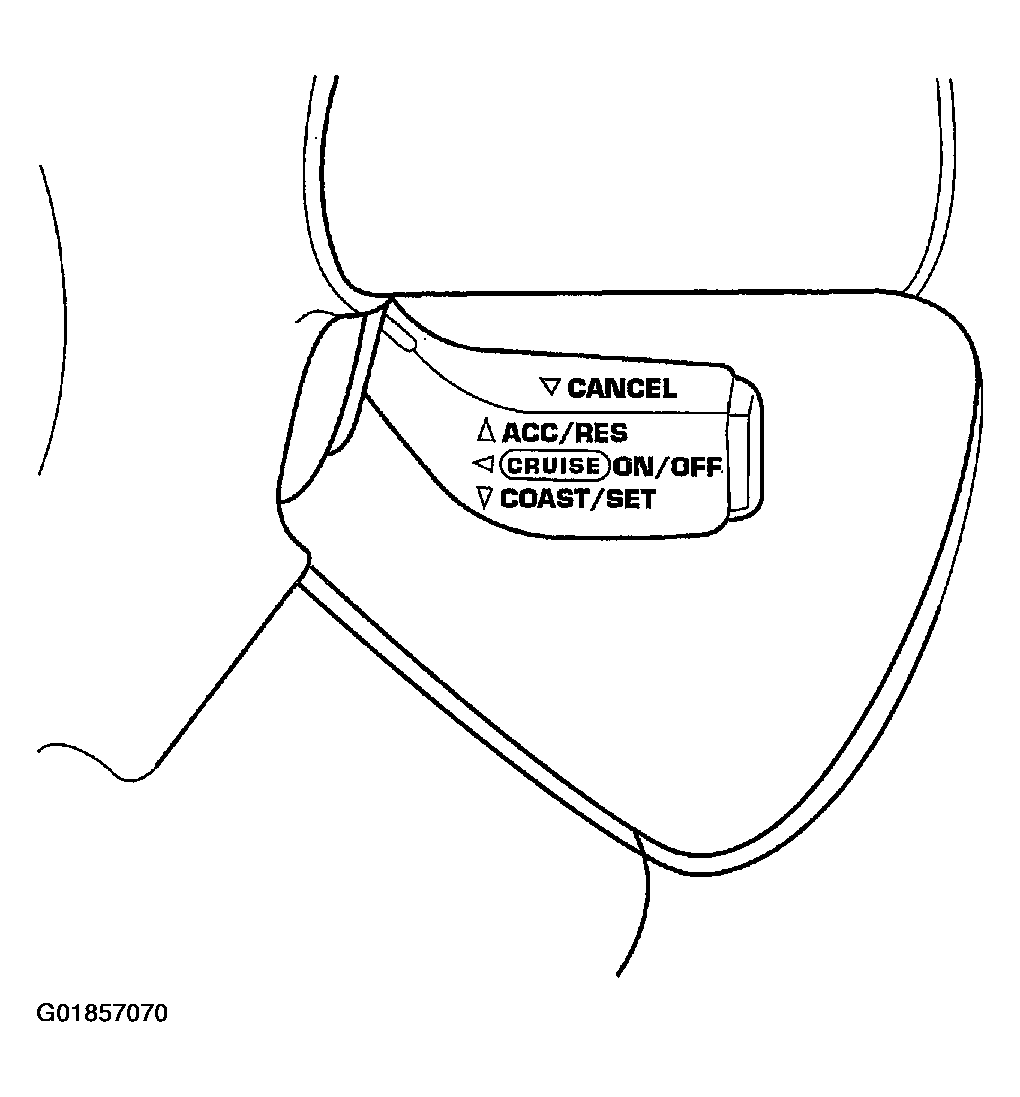

Fig 1: Identifying Speed Control Switch

Courtesy of DAIMLERCHRYSLER CORP.

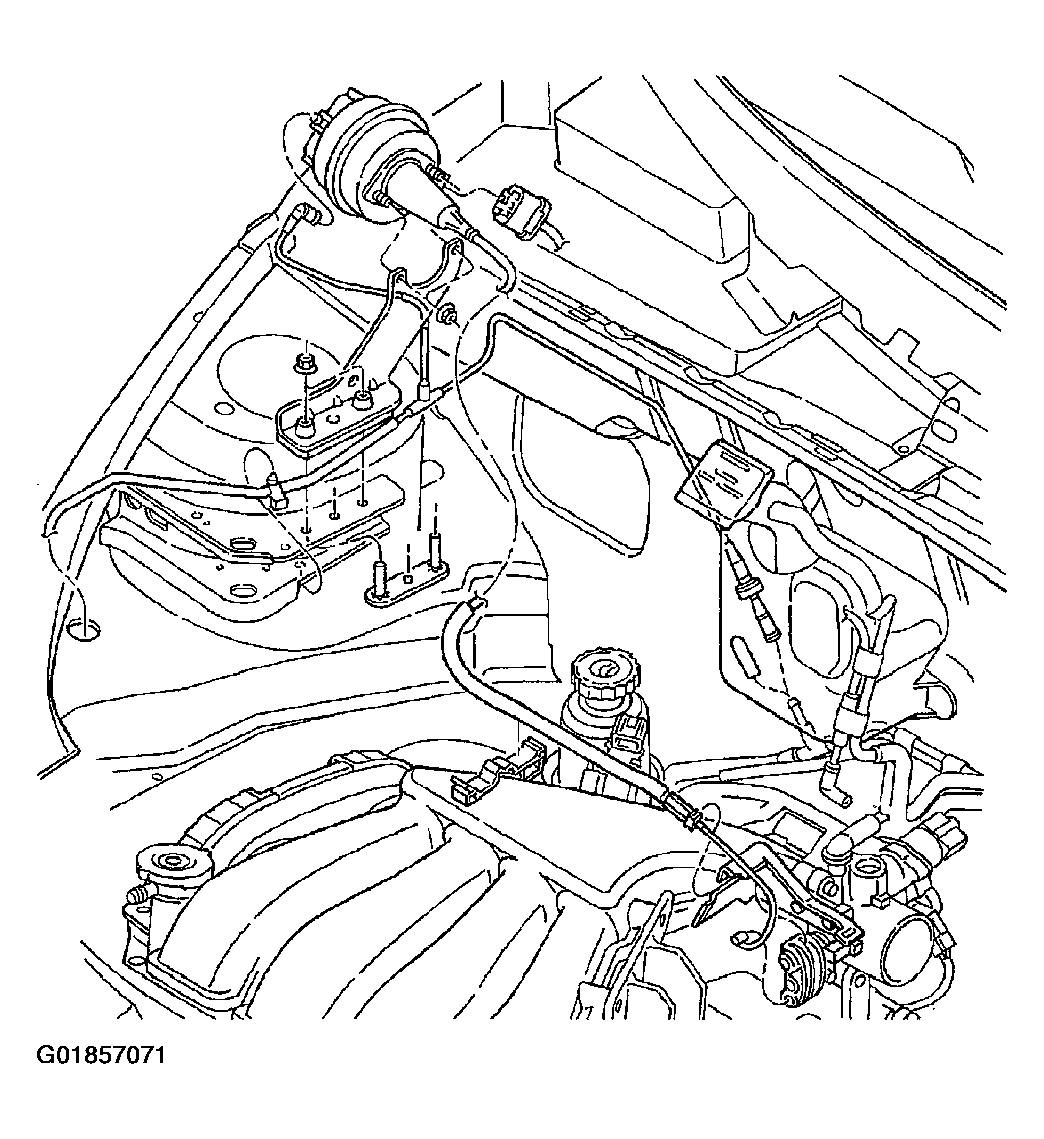

Fig 2: Identifying Speed Control System

Courtesy of DAIMLERCHRYSLER CORP.

The system is designed to operate at speeds above 25 mph (40 km/h).
