Remote Keyless Entry Module: Removal
- Disconnect and isolate the battery negative cable.
- Remove the instrument panel top cover.

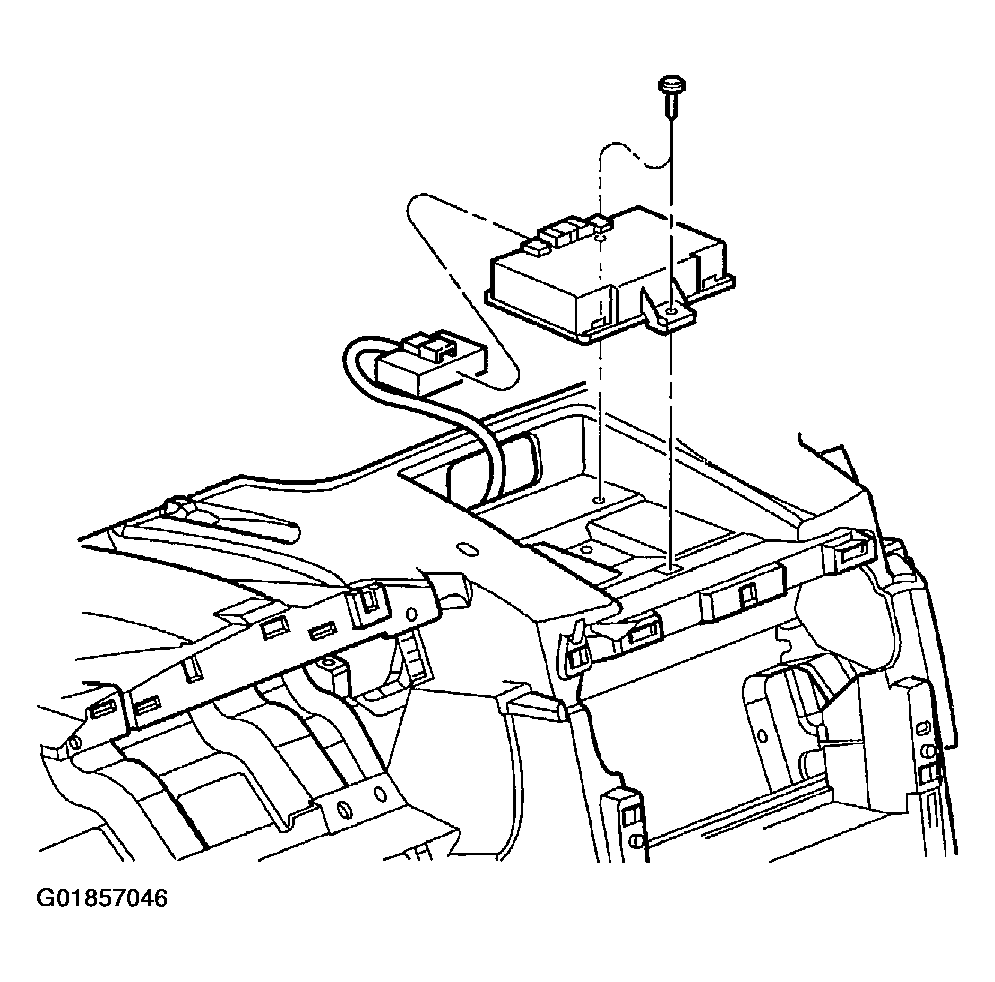

- Remove the two screws holding the RKE module to the instrument panel assembly.
- Slide locking tab of the wiring connector sideways to unlock tab, and remove connector from RKE module.
- Remove RKE module from vehicle.
NOTE:
When replacing a faulty RKE Module, the replacement module must be configured with the DRB lll(R) scan tool for proper operation. Refer to Vehicle Theft/Security Systems, Configuring a New Module under Service Procedures. Additionally, all transmitters must be reprogrammed to the new RKE module.
