Battery Temperature Sensor (Diesel) Connector End View

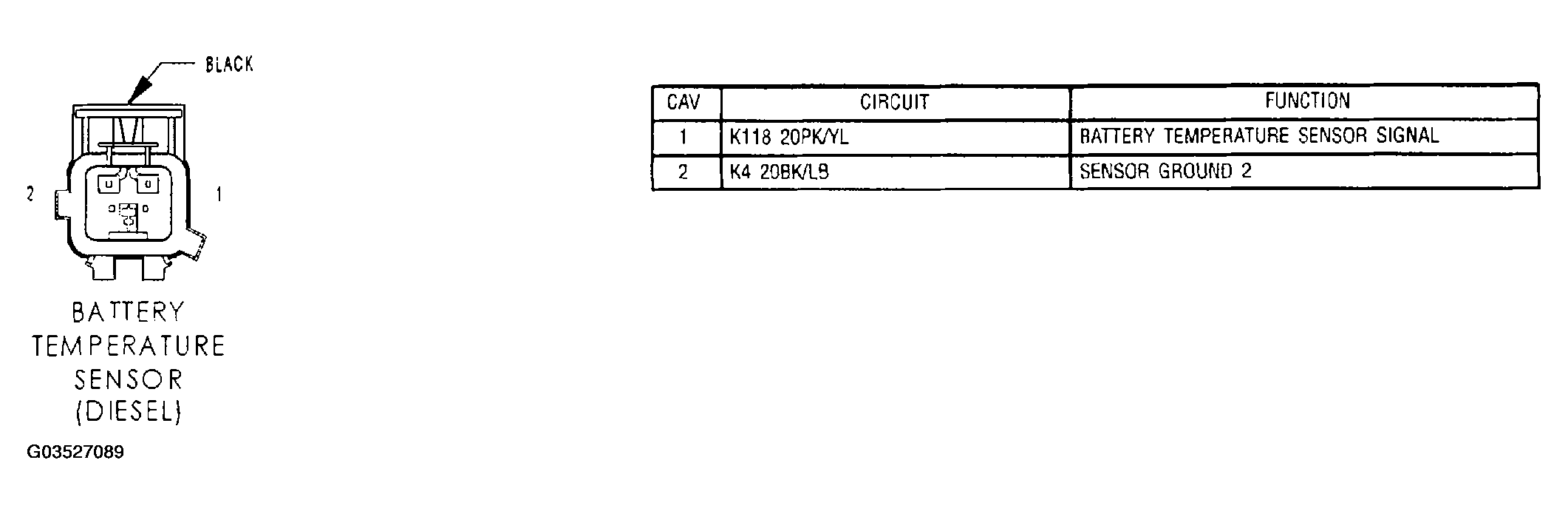

Fig 1: Battery Temperature Sensor (Diesel) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
