C204 Connector End View

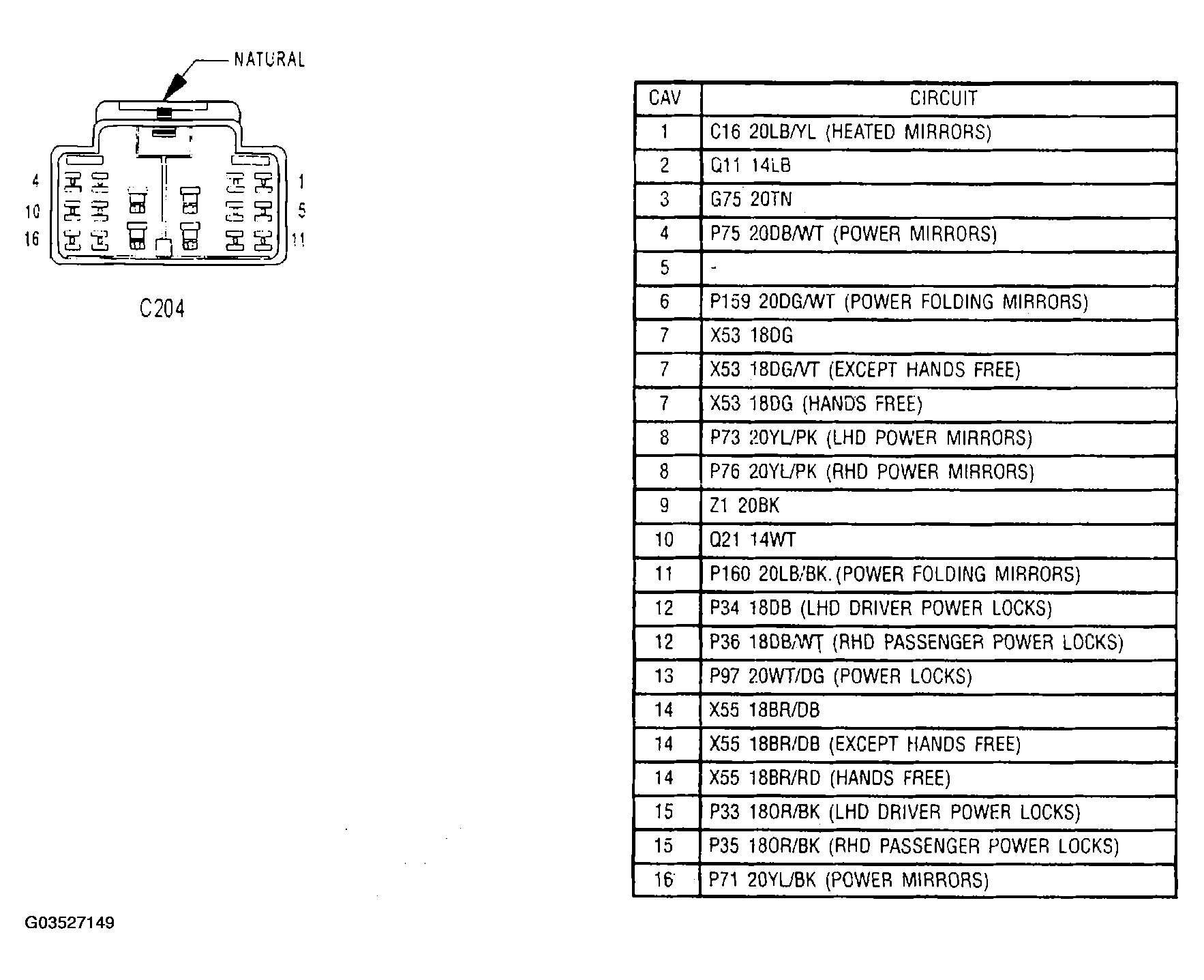

Fig 1: Instrument Panel Side Inline Connector End View (C204)
G03527149Courtesy of DAIMLERCHRYSLER CORP.

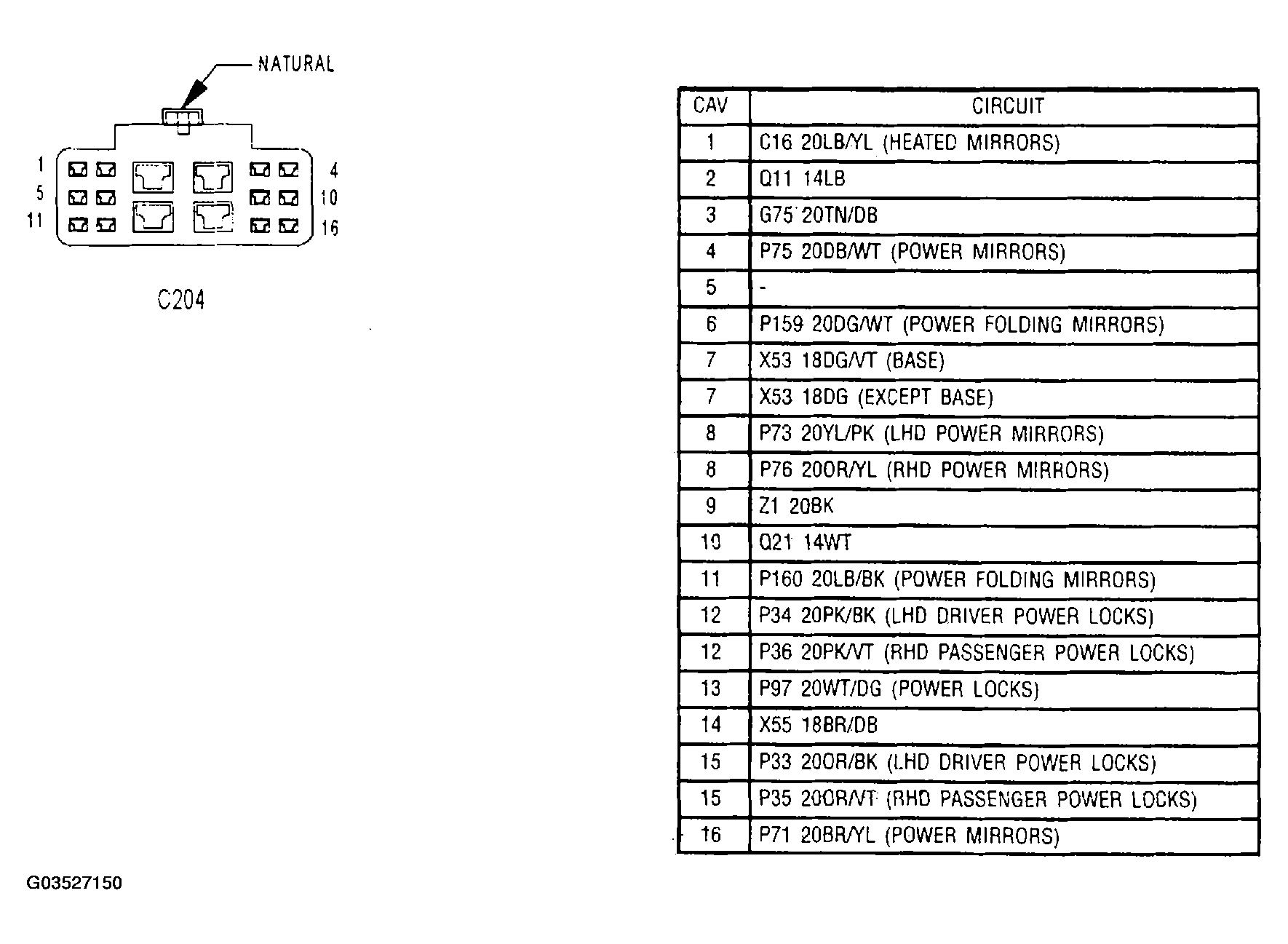

Fig 1: Left Front Door Side Inline Connector End View (C204)
G03527150Courtesy of DAIMLERCHRYSLER CORP.
