Dome Lamp/Intrusion Sensor (Export) Connector End View

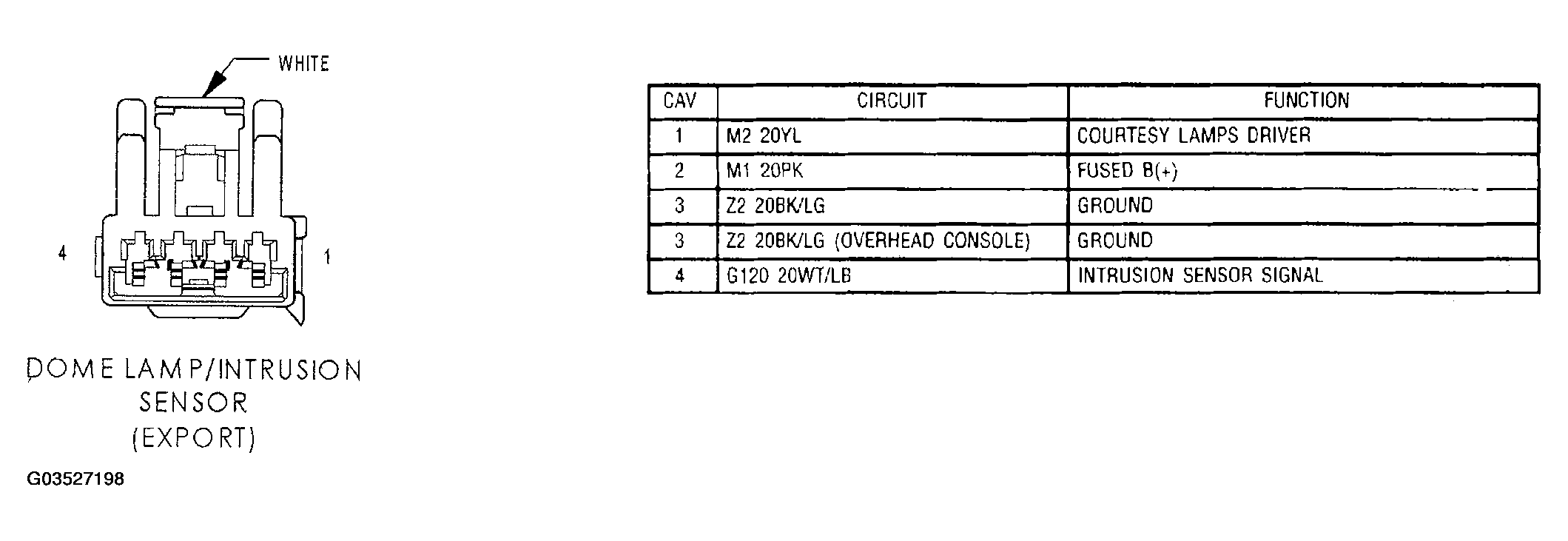

Fig 1: Dome Lamp/Intrusion Sensor (Export) Connector End View
G03527198Courtesy of DAIMLERCHRYSLER CORP.
