Left Side Impact Sensor 1 Connector End View

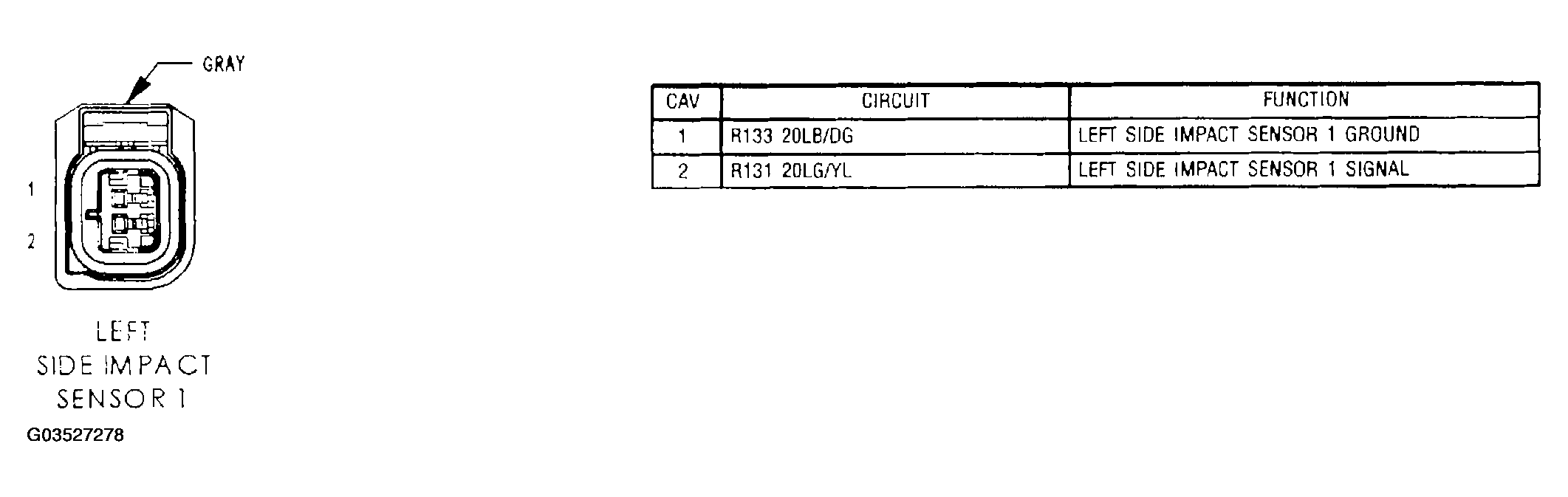

Fig 1: Left Side Impact Sensor Connector End View (1)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
