Temperature Display Inoperative or Wrong

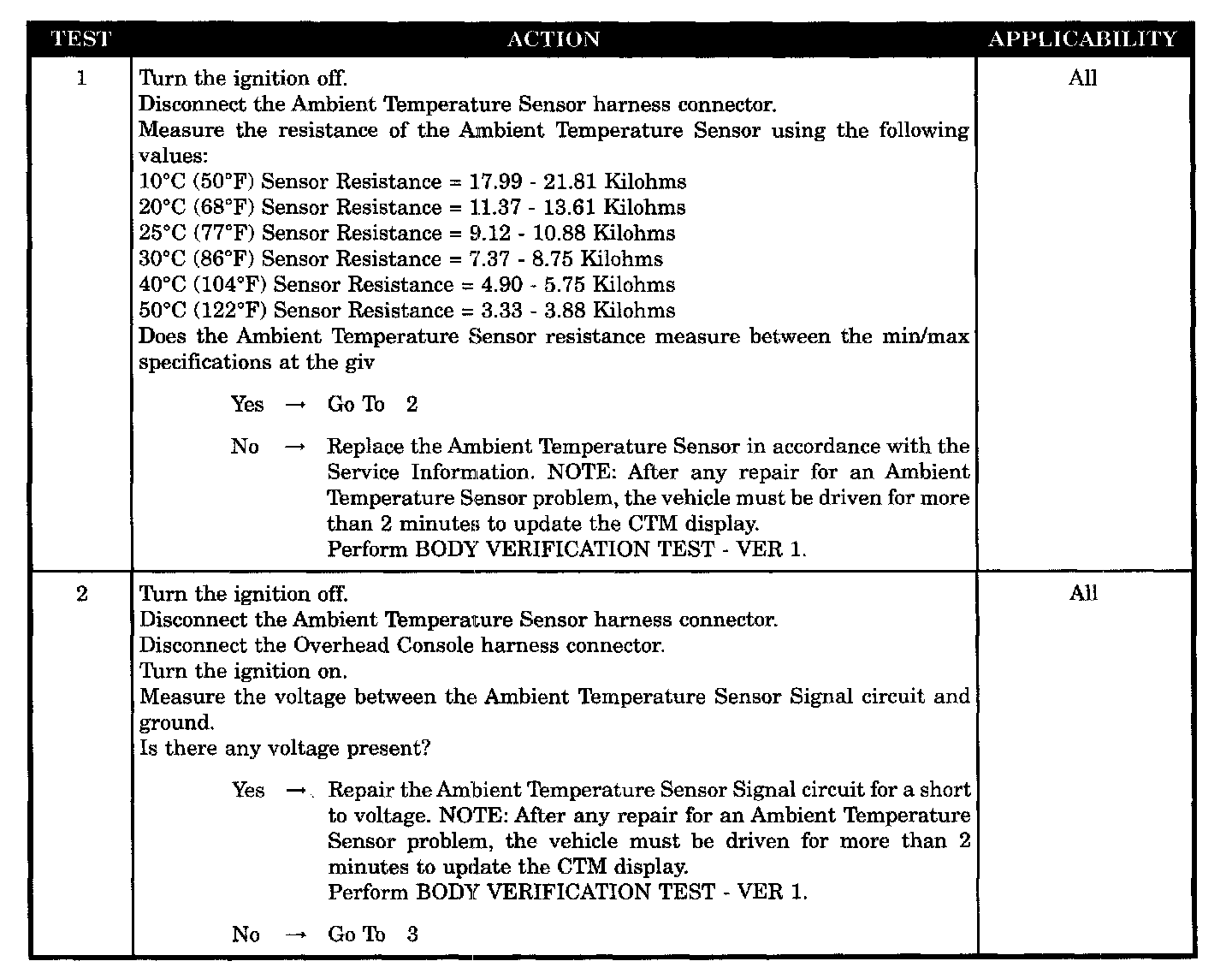

Test 1 - 2:

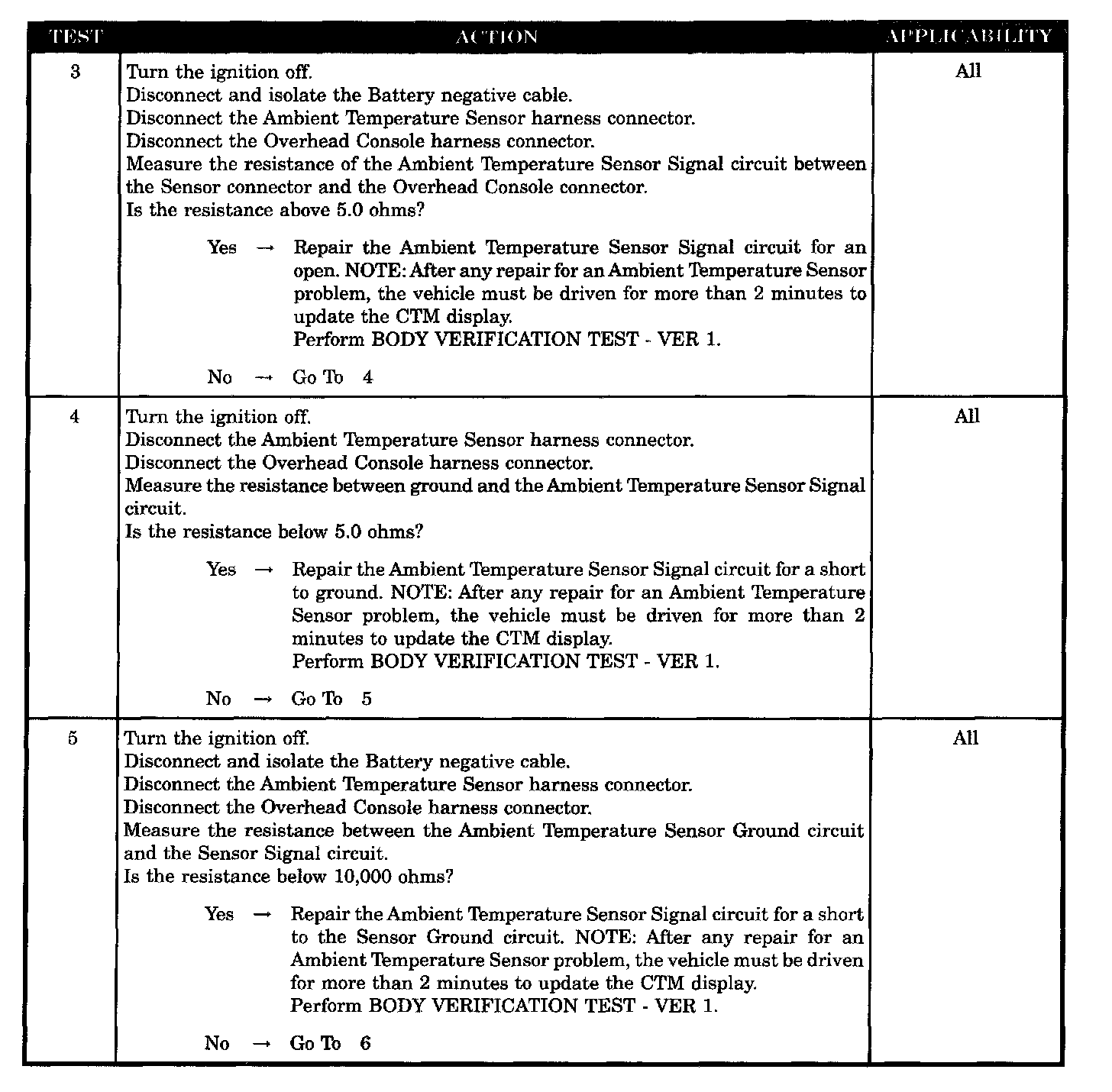

Test 3 - 5:

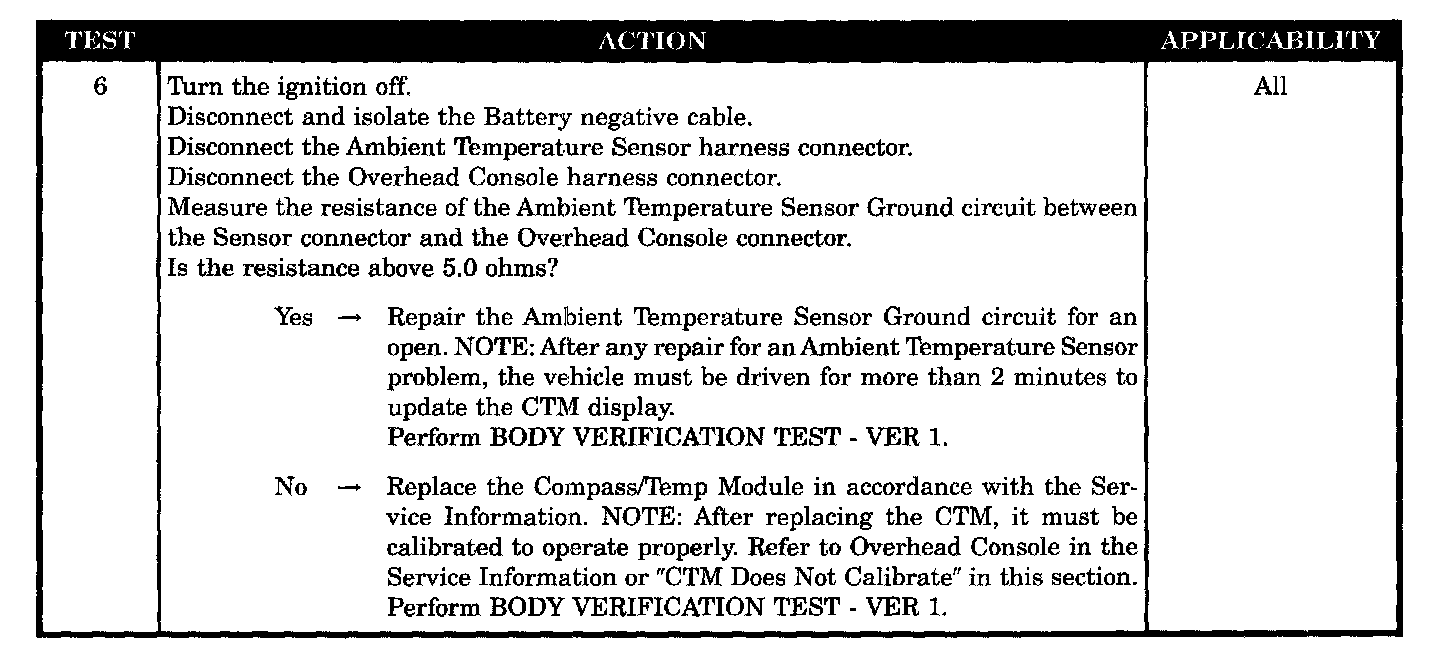

Test 6:

SYMPTOM
TEMPERATURE DISPLAY INOPERATIVE OR WRONG

POSSIBLE CAUSES
- Ambient temperature sensor
- Ambient temperature sensor signal circuit short to voltage
- Ambient temperature sensor signal circuit open
- Ambient temperature sensor signal circuit short to ground
- Ambient temperature sensor signal circuit short to sensor ground circuit
- Ambient temperature sensor ground circuit open
- Compass/temperature module
