Cruise Control Servo: Service and Repair
REMOVAL1. Disconnect the negative battery cable.

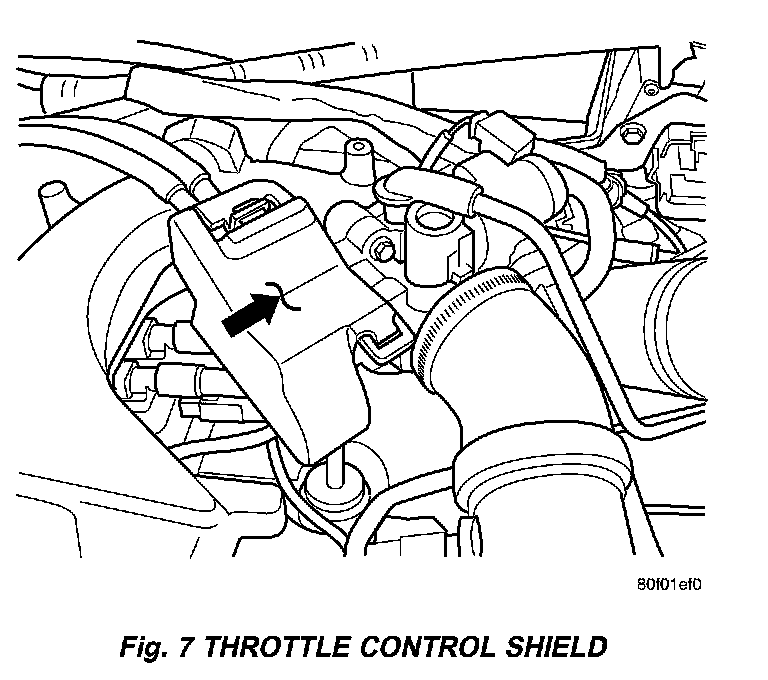

Fig. 7 Throttle Control Shield:
2. Remove the throttle control shield.
3. Remove the speed control cable from the throttle body lever.

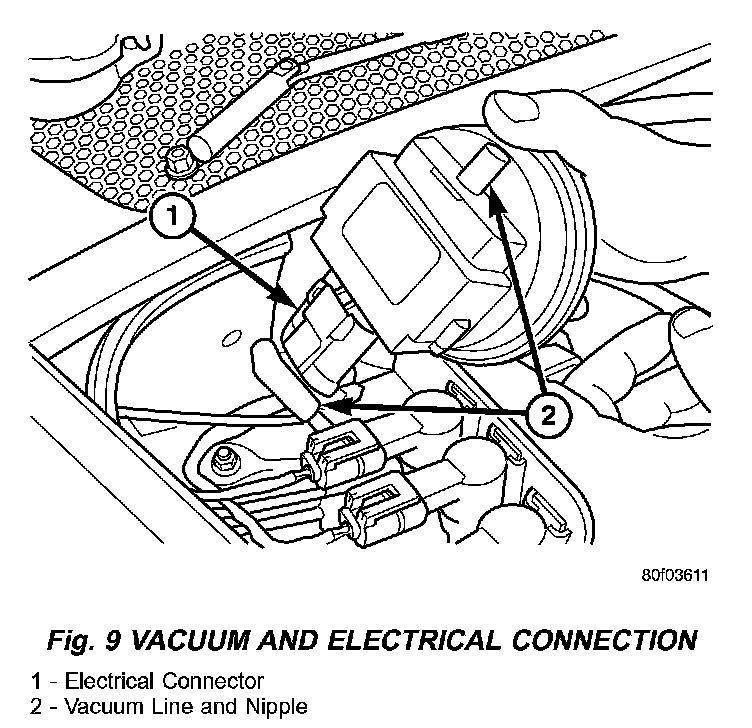

Fig. 9 Vacuum And Electrical Connection:
4. Remove the vacuum line from the speed control servo.

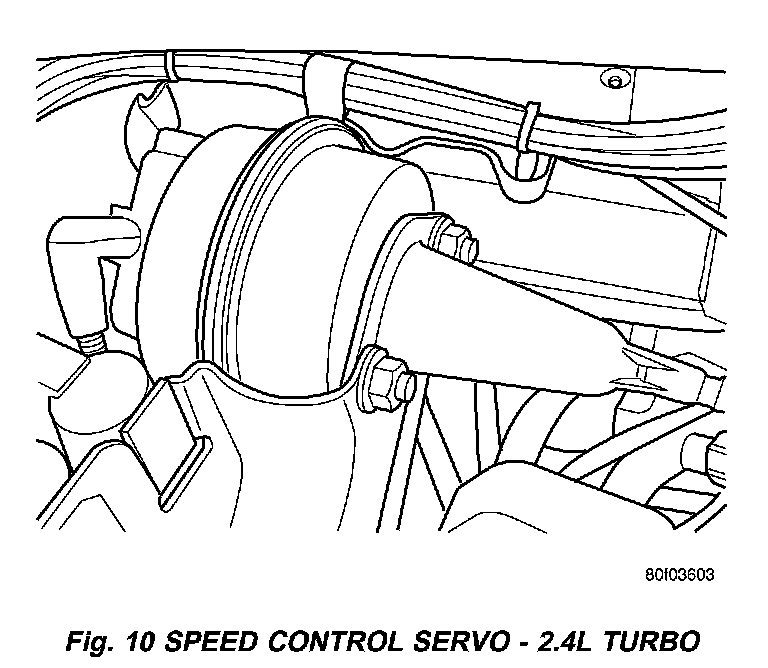

Fig. 10 Speed Control Servo - 2.4L Turbo:
5. Remove the 2 nuts from the speed control servo studs.
6. Push and pull up the speed control servo from the mounting bracket.
7. Unlock and disconnect the electrical connector from the speed control servo.
8. Remove the 2 push clips and discard.
Fig. 11 Cable Clip:
9. Remove the retaining clip holding cable to servo.
INSTALLATION
1. Install the retaining clip holding cable to servo.
2. Connect and lock the electrical connector to the speed control servo.
3. Install the speed control servo to the mounting bracket.
4. Install the 2 nuts from the speed control servo studs.
5. Install the vacuum line to the speed control servo.
6. Install the speed control cable to the throttle body lever
7. Install the throttle control shield.
8. Connect the negative battery cable.
