All Gauges Inoperative

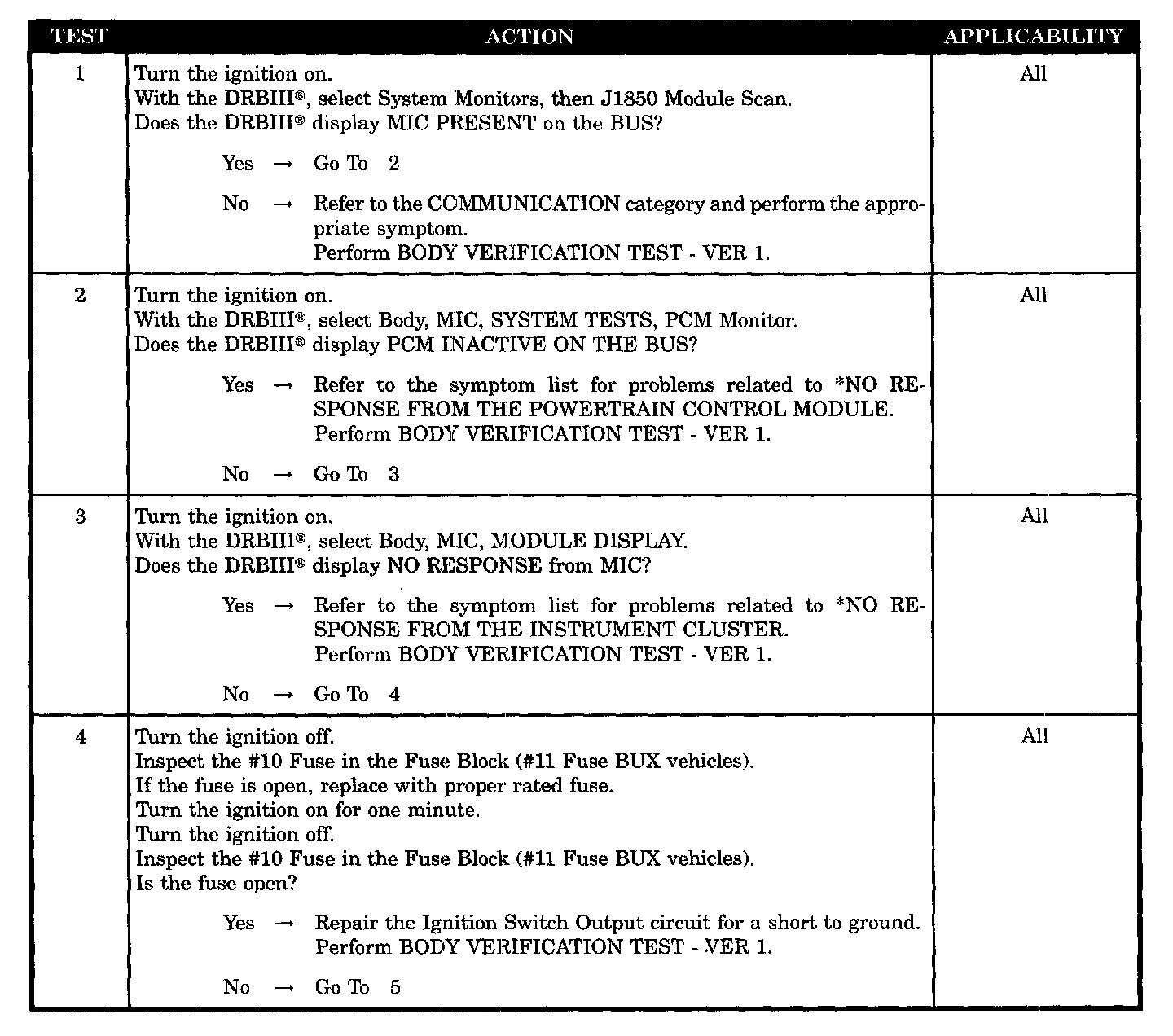

Test 1 - 4:

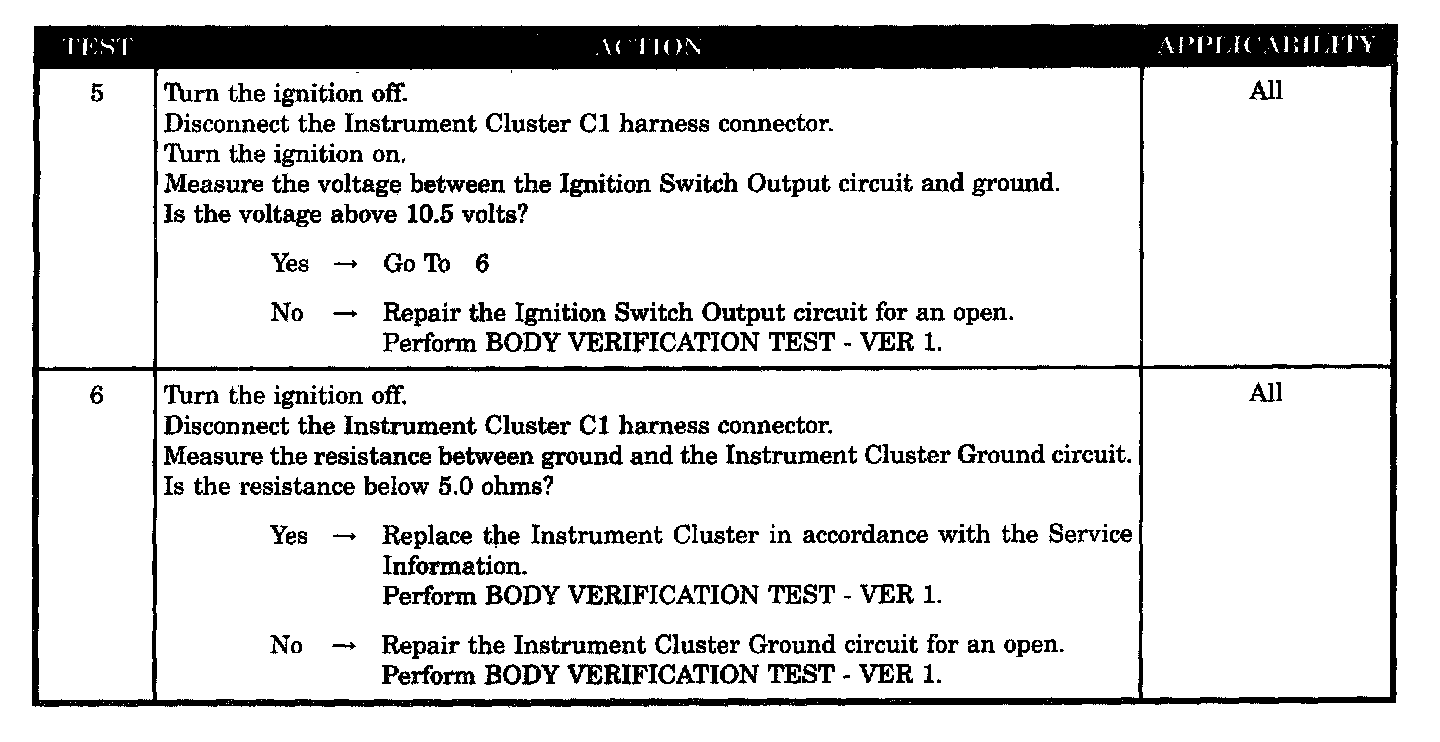

Test 5 - 6:






SYMPTOM
ALL GAUGES INOPERATIVE

POSSIBLE CAUSES
- No response - PCI BUS
- No response - PCI BUS - powertrain control module
- No response - PCI BUS - instrument cluster
- Ignition switch output circuit short to ground
- Ignition switch output circuit open
- Instrument cluster ground circuit open
- Instrument cluster
