Courtesy Lamps on At All Times

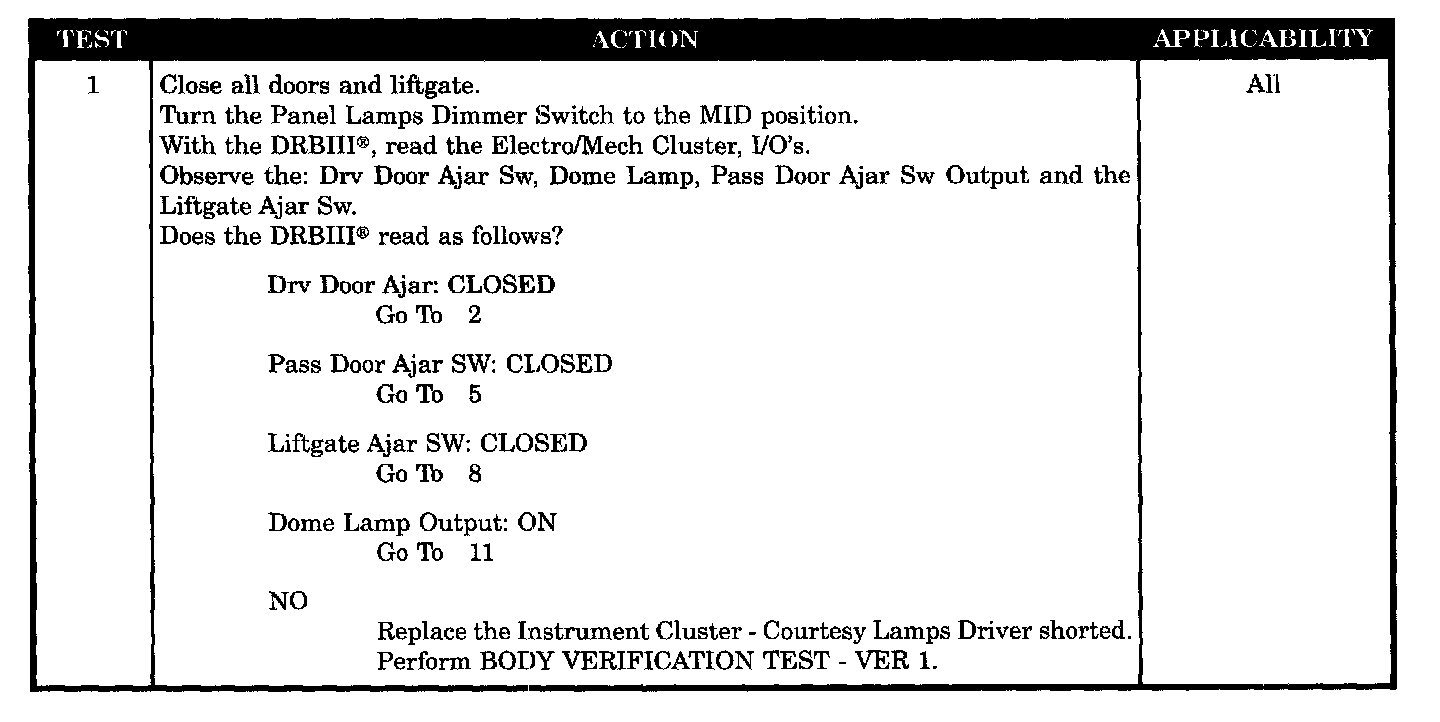

Test 1:

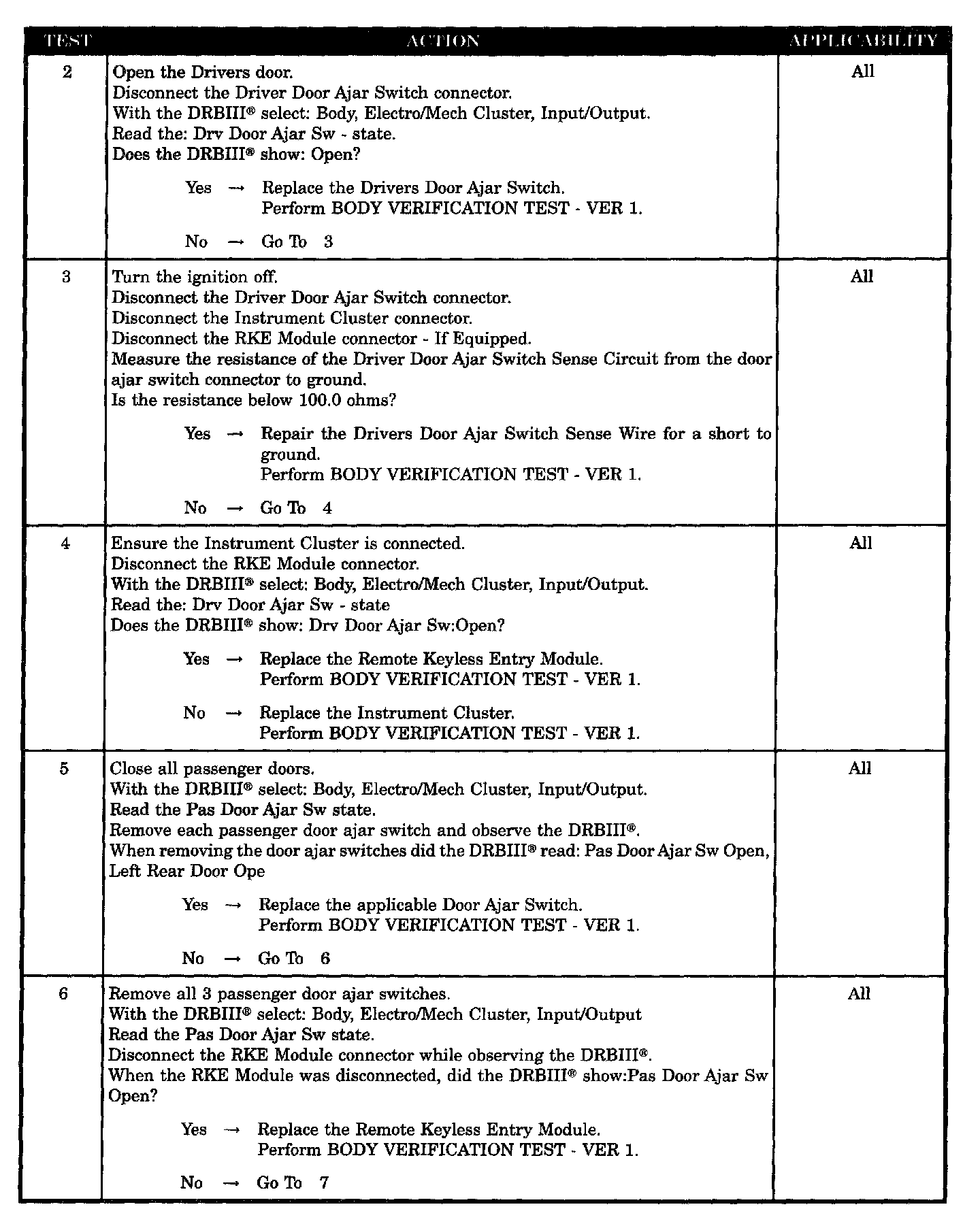

Test 2 - 6:

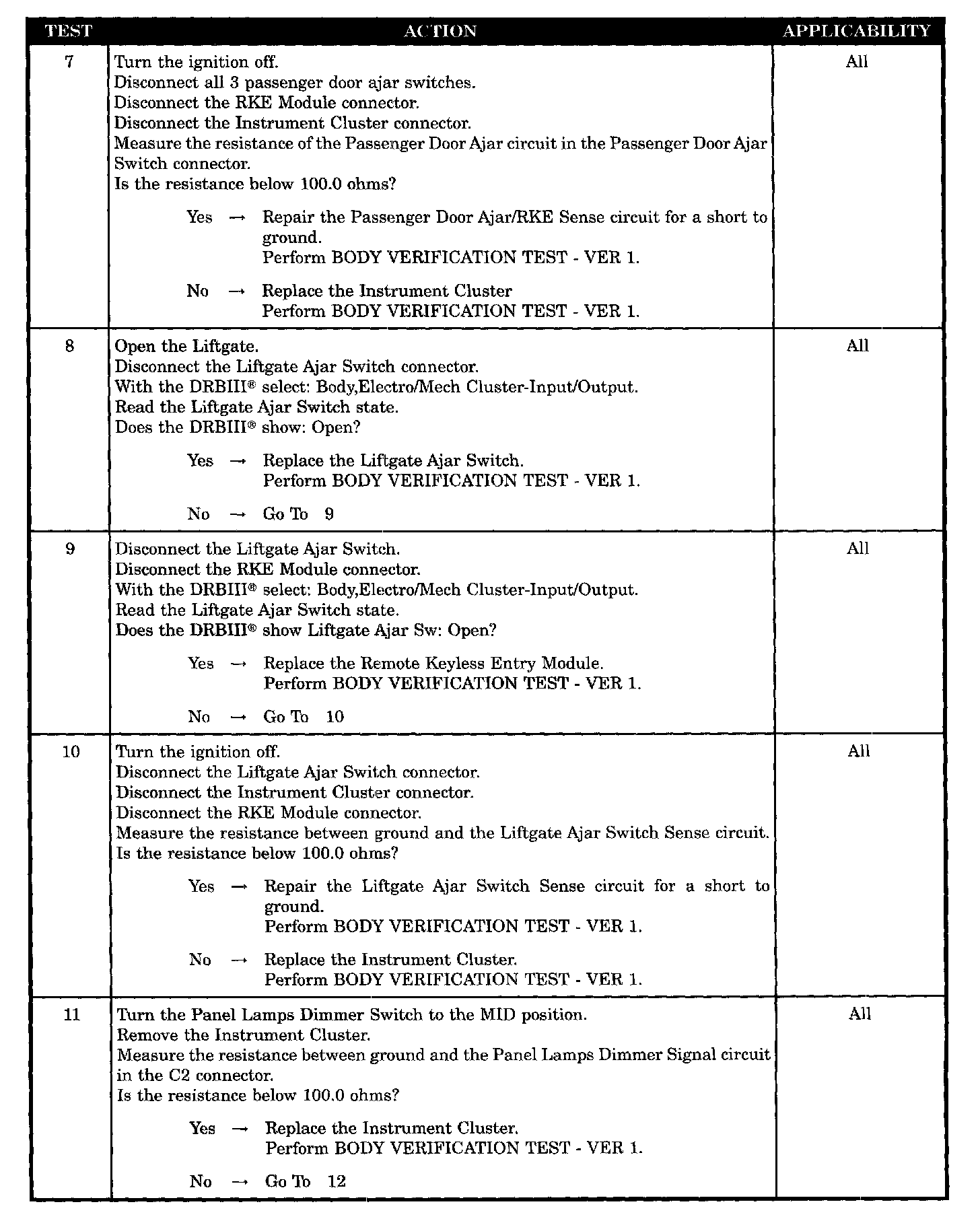

Test 7 - 11:

Test 12:

SYMPTOM
COURTESY LAMPS ON AT ALL TIMES

POSSIBLE CAUSES
- Courtesy lamp driver shorted
- Drivers door ajar switch
- Drivers door ajar switch sense wire short to ground
- Remote keyless entry module - if equipped
- Instrument cluster
- Door ajar switches
- Remote keyless entry module
- Passenger door ajar/RKE sense circuit short to ground
- Instrument cluster
- Liftgate ajar switch
- Remote keyless entry module
- Liftgate ajar switch sense circuit short to ground
- Instrument cluster
- Instrument cluster
- Panel lamps dimmer signal circuit short to ground
- Multifunction switch
