Low Oil Pressure Indicator Inoperative

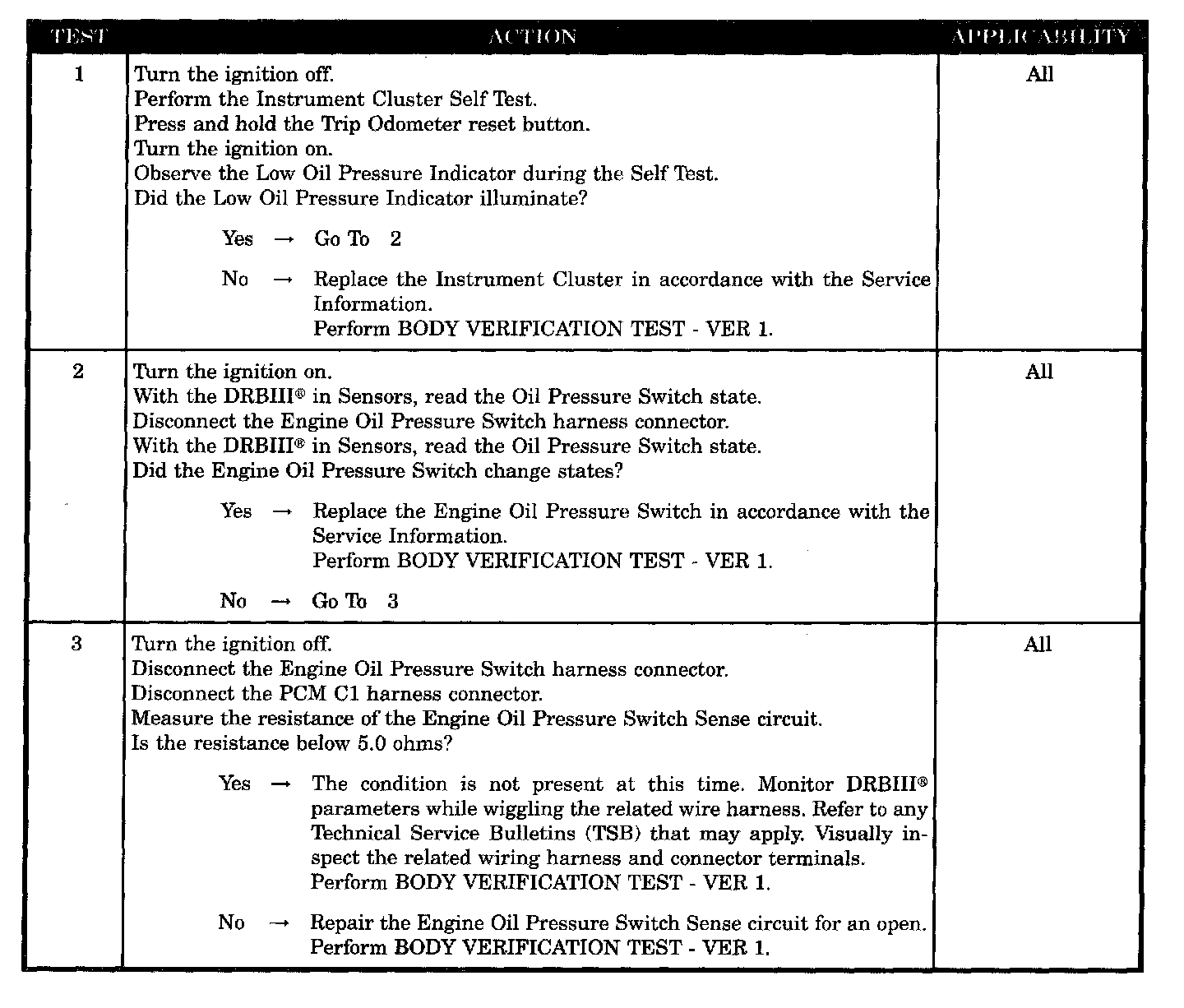

Test 1 - 3:






SYMPTOM
LOW OIL PRESSURE INDICATOR INOPERATIVE

POSSIBLE CAUSES
- Engine oil pressure switch
- Engine oil pressure switch sense circuit open
- Intermittent condition
- Instrument cluster
