Open Driver Door Fails to Trip Alarm

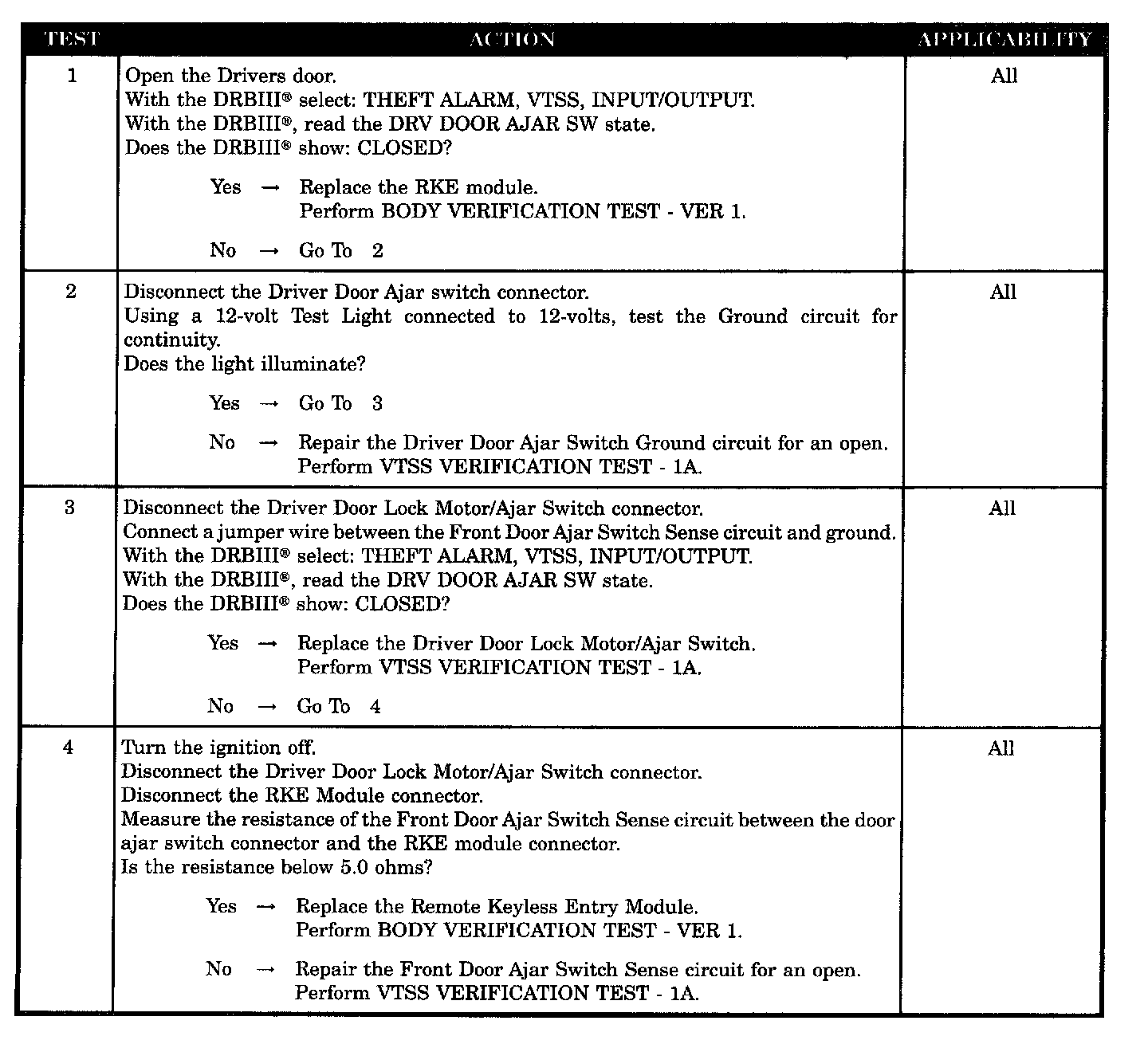

Test 1 - 4:






SYMPTOM
OPEN DRIVER DOOR FAILS TO TRIP ALARM

POSSIBLE CAUSES
- Driver door ajar switch
- Driver door ajar switch ground circuit open
- Driver door ajar switch status
- Front door ajar switch sense circuit open
- Remote keyless entry module
