Power Window Switch: Service and Repair

REMOVAL
Front
1. Disconnect and isolate the battery negative cable.

Window Switch Removal (Rear Shown - Front Similar):

2. Using a trim stick (special tool #C-4755) or equivalent, gently pry at the top of the switch.

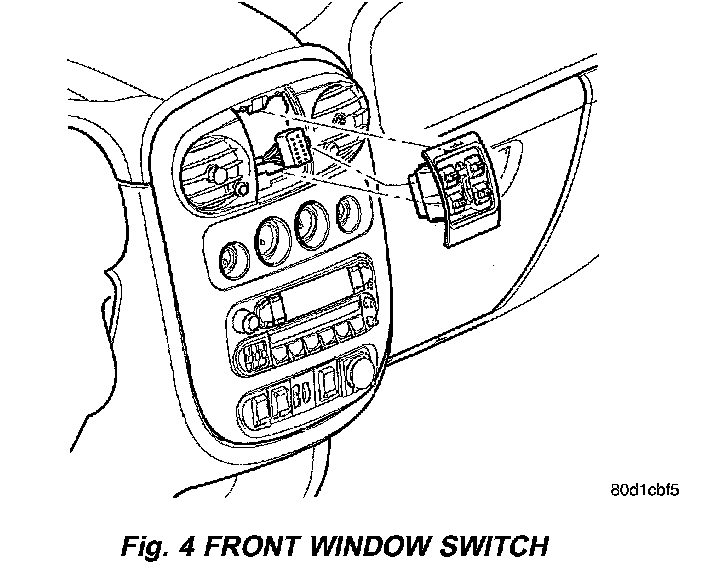

Front Window Switch:

3. Remove switch and disconnect electrical harness connector.

Rear
1. Disconnect and isolate the battery negative cable.
2. Using a trim stick (special tool #C-4755) or equivalent, gently pry at the top of the switch.

Rear Window Switch:

3. Remove switch and disconnect electrical harness connectors.

INSTALLATION
Front
1. Connect electrical harness connector to switch.
2. Align switch and press into position.
3. Connect battery negative cable.

Rear
1. Connect electrical harness connector to switch.
2. Align switch and press into position.
3. Connect battery negative cable.
