Integrated Power Module

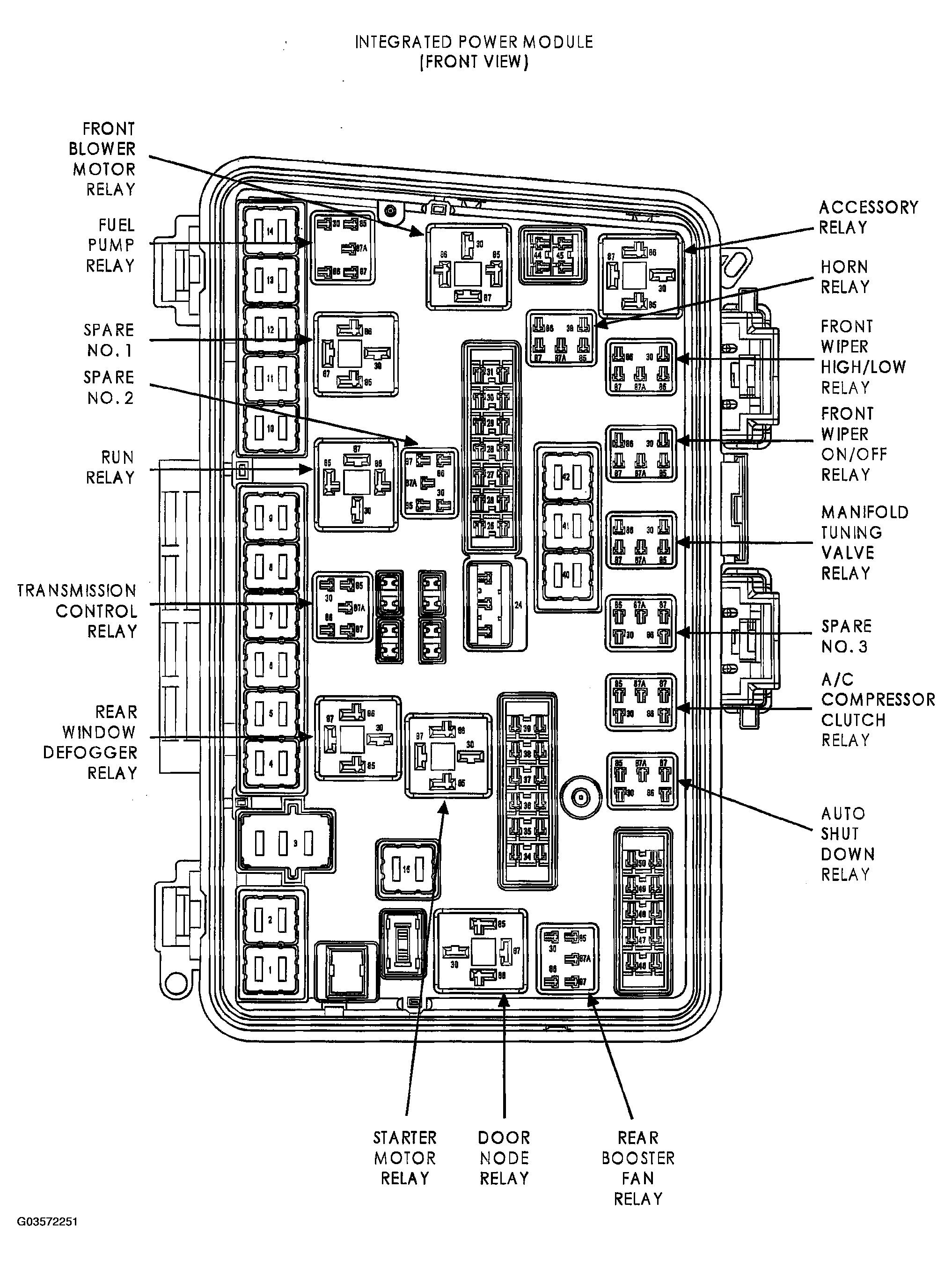

Fig 1: Front View Of Integrated Power Module
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
