Automatic Temperature Control System

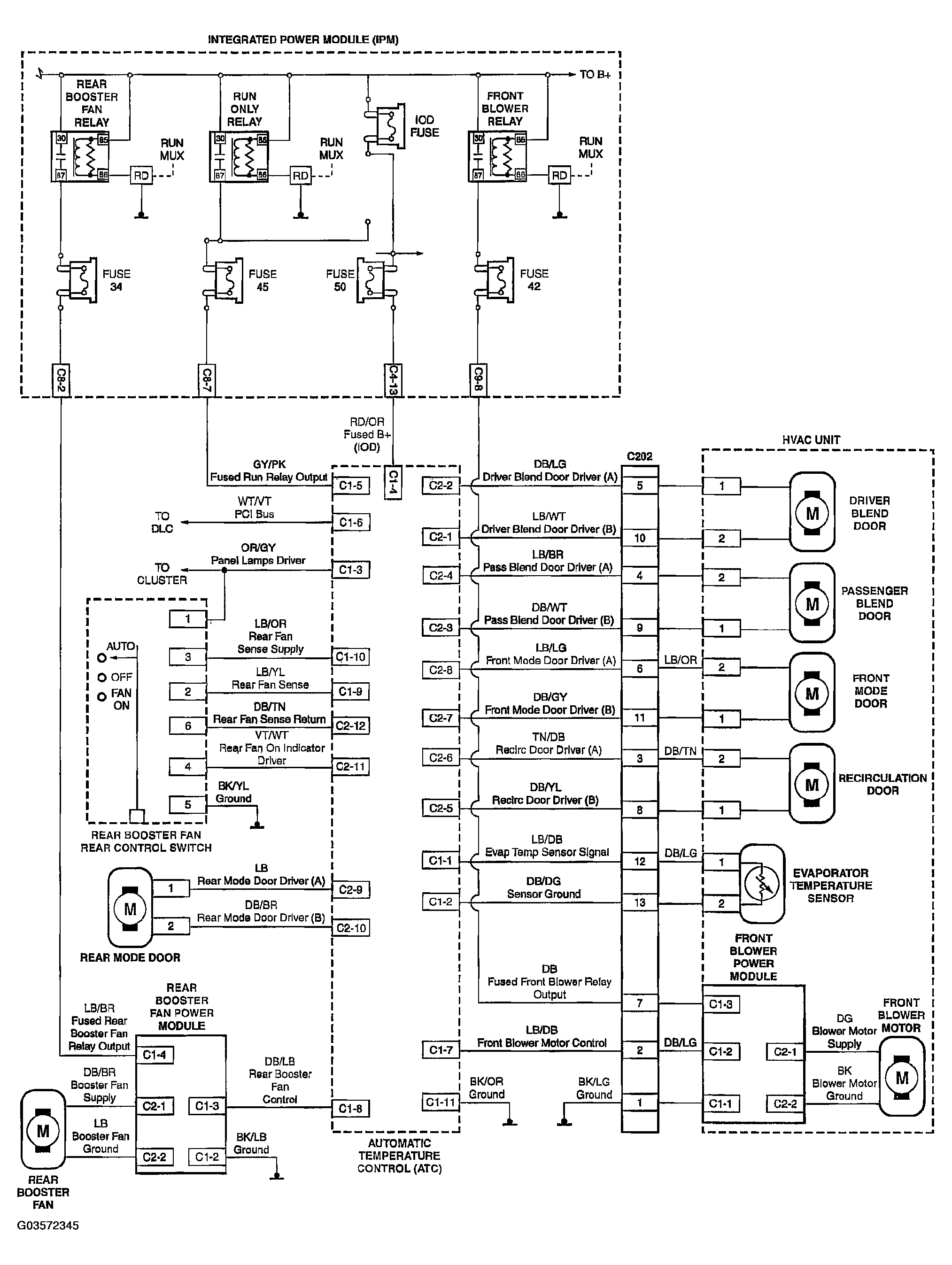

Fig 1: Automatic Temperature Control System - Schematic Diagram
G03572345Courtesy of DAIMLERCHRYSLER CORP.
