Repair and Diagnosis
>>
Body & Frame
>>
Body, Cab Control Systems
>>
Body Diagnostic Procedures - Component Locations
>>
Schematic Diagrams
>>
Navigation System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Navigation System

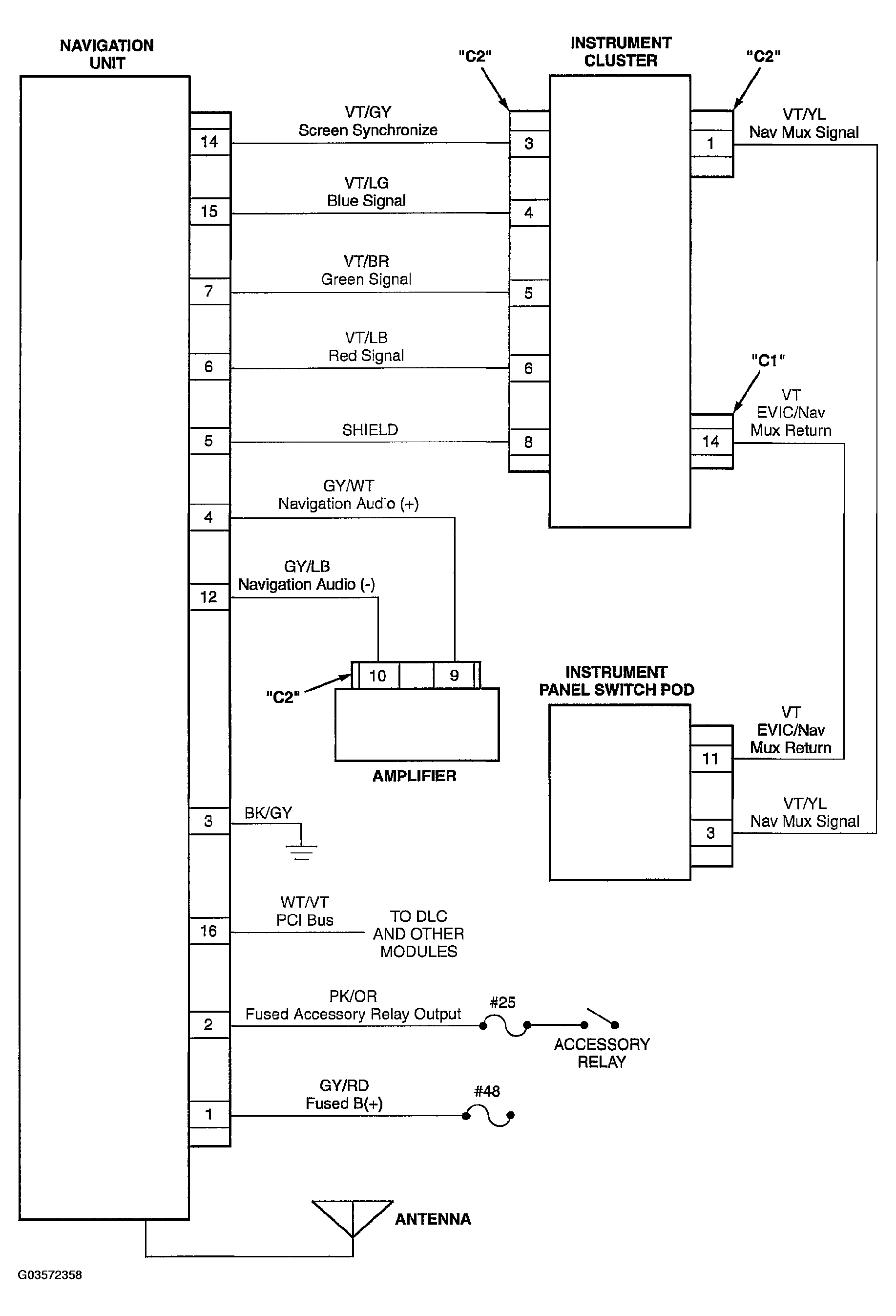

Fig 1: Navigation System - Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
