Power Liftgate System: Liftgate

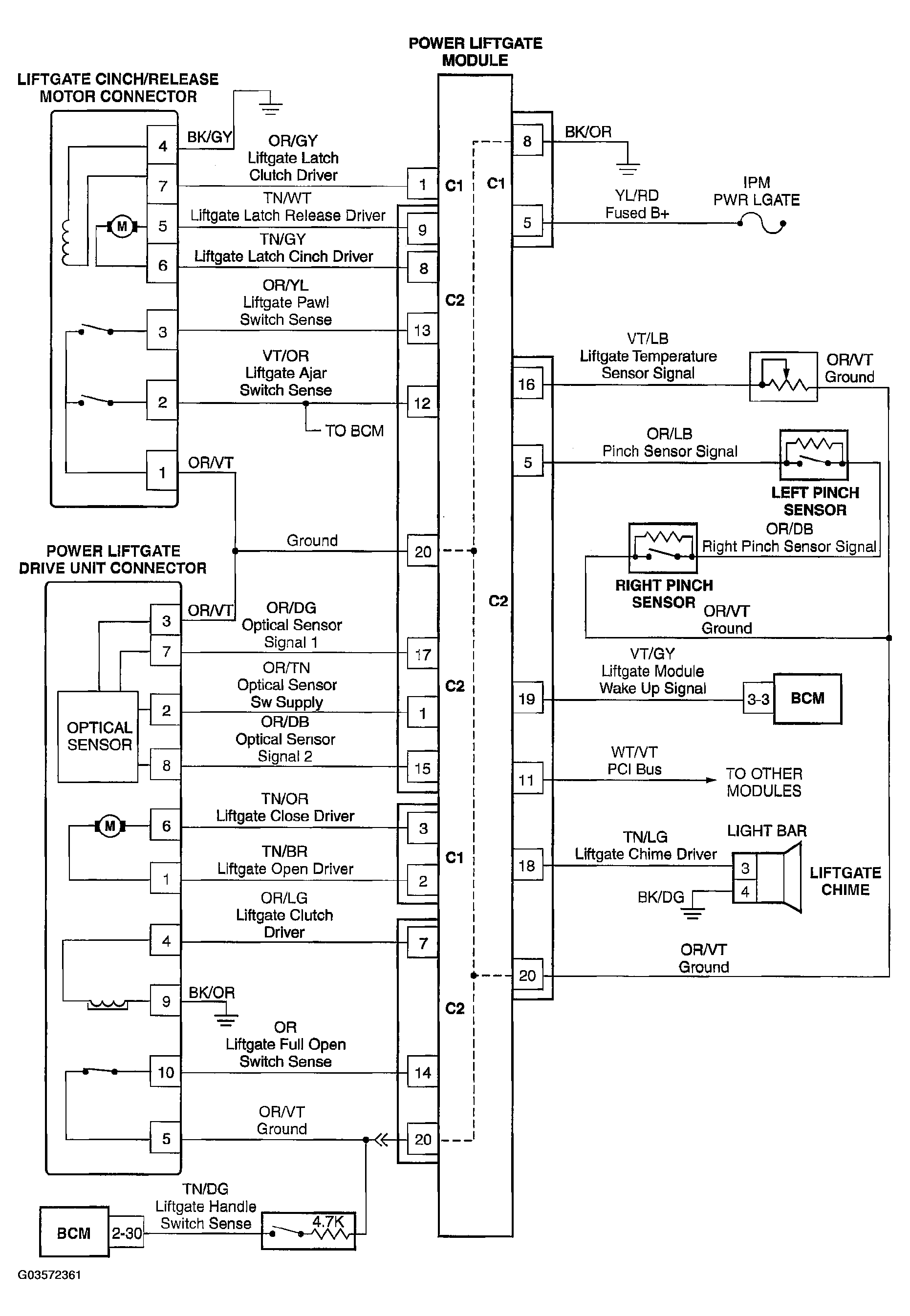

Fig 1: Liftgate - Schematic Diagram

G03572361

Courtesy of DAIMLERCHRYSLER CORP.
