Frame Closeout Molding: Installation
- Lower door window glass.

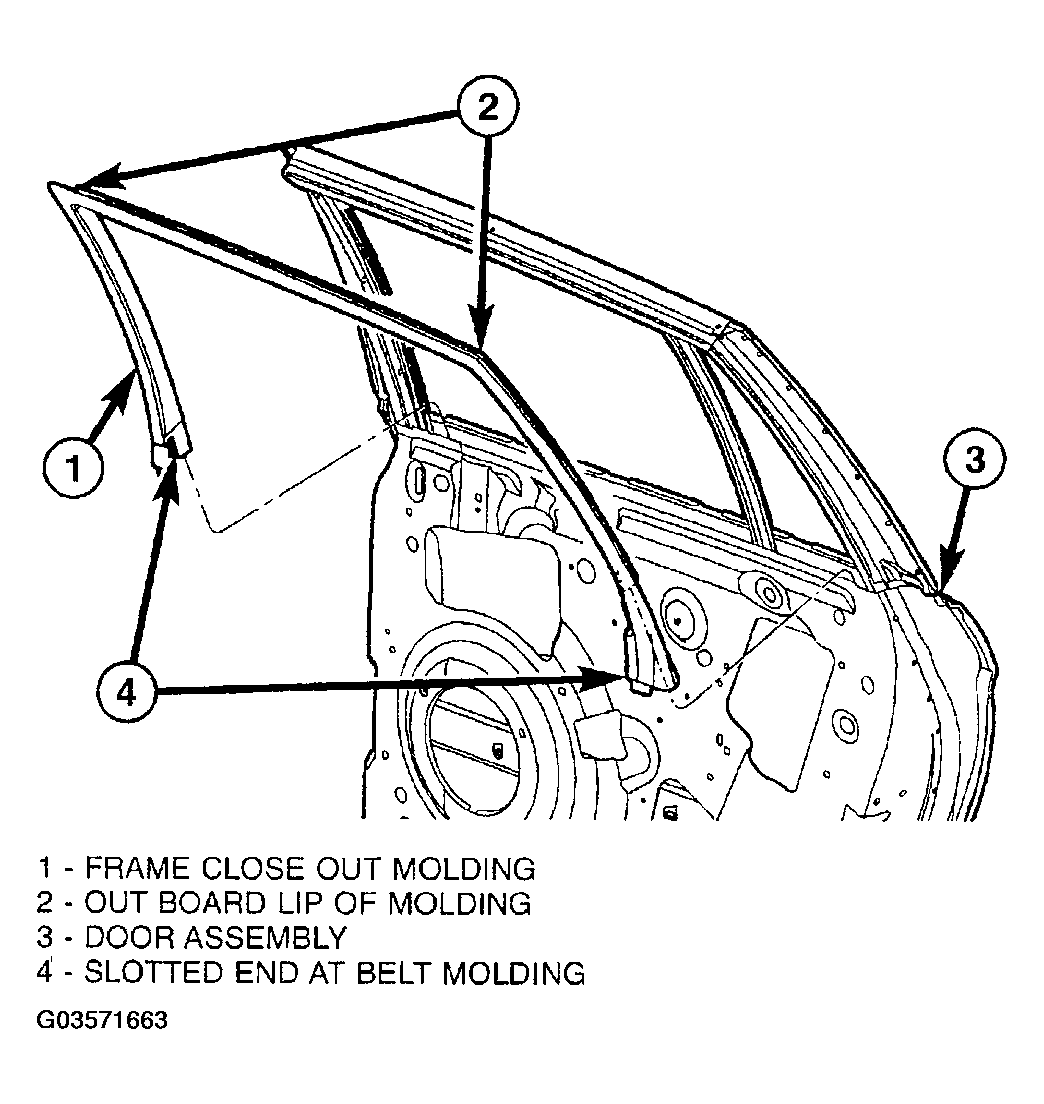

- Place door frame close out molding into position (Fig 1).
- Starting at C-pillar to corner and work along header to B-pillar belt line. Snapping molding into place, using hand pressure.
- Finish inserting molding along C-pillar side of door.
- Raise door window glass.
Courtesy of DAIMLERCHRYSLER CORP.
- Install door fixed glass run channel. (Refer to INSTALLATION ).
- Install rear door inner belt molding weatherstrip. (Refer to REAR DOOR INNER BELT MOLDING WEATHERSTRIP
).
- Install rear door trim panel. (Refer to INSTALLATION ).
