Short Runner Valve Solenoid Connector End View

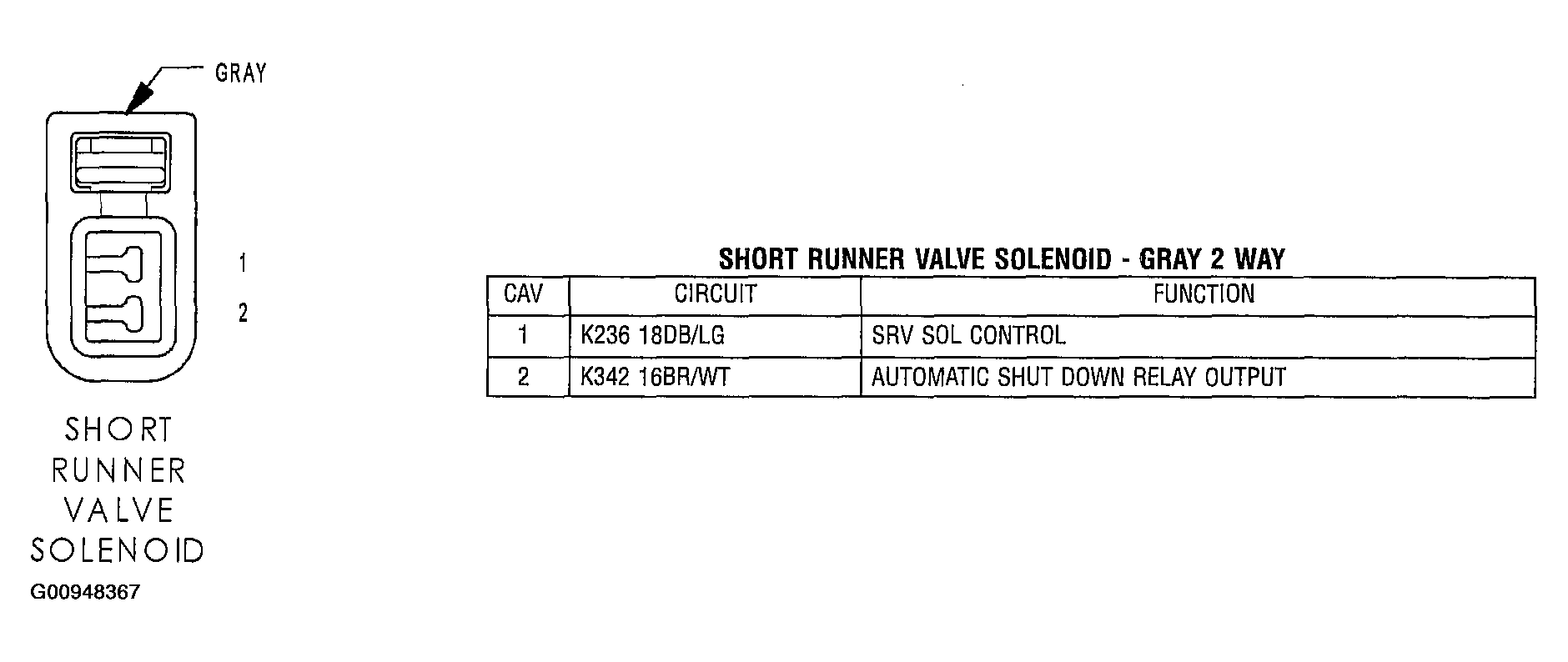

Fig 1: Identifying Short Runner Valve Solenoid - Gray 2 Way Connector
G00948367Courtesy of DAIMLERCHRYSLER CORP.
