Possible Causes

  1. CHECKING DTCS
  2. CHECKING SKIM DTCS
  3. FUEL PRESSURE OUT OF SPECS
  4. TP SENSOR SWEEP
  5. TP SENSOR VOLTAGE GREATER THAN 0.92 VOLTS WITH THROTTLE CLOSED
  6. ECT SENSOR OPERATION
  7. OTHER POSSIBLE CAUSES FOR START & STALL
  8. RESTRICTED FUEL SUPPLY LINE
  9. FUEL PUMP INLET STRAINER PLUGGED
  10. FUEL PUMP MODULE

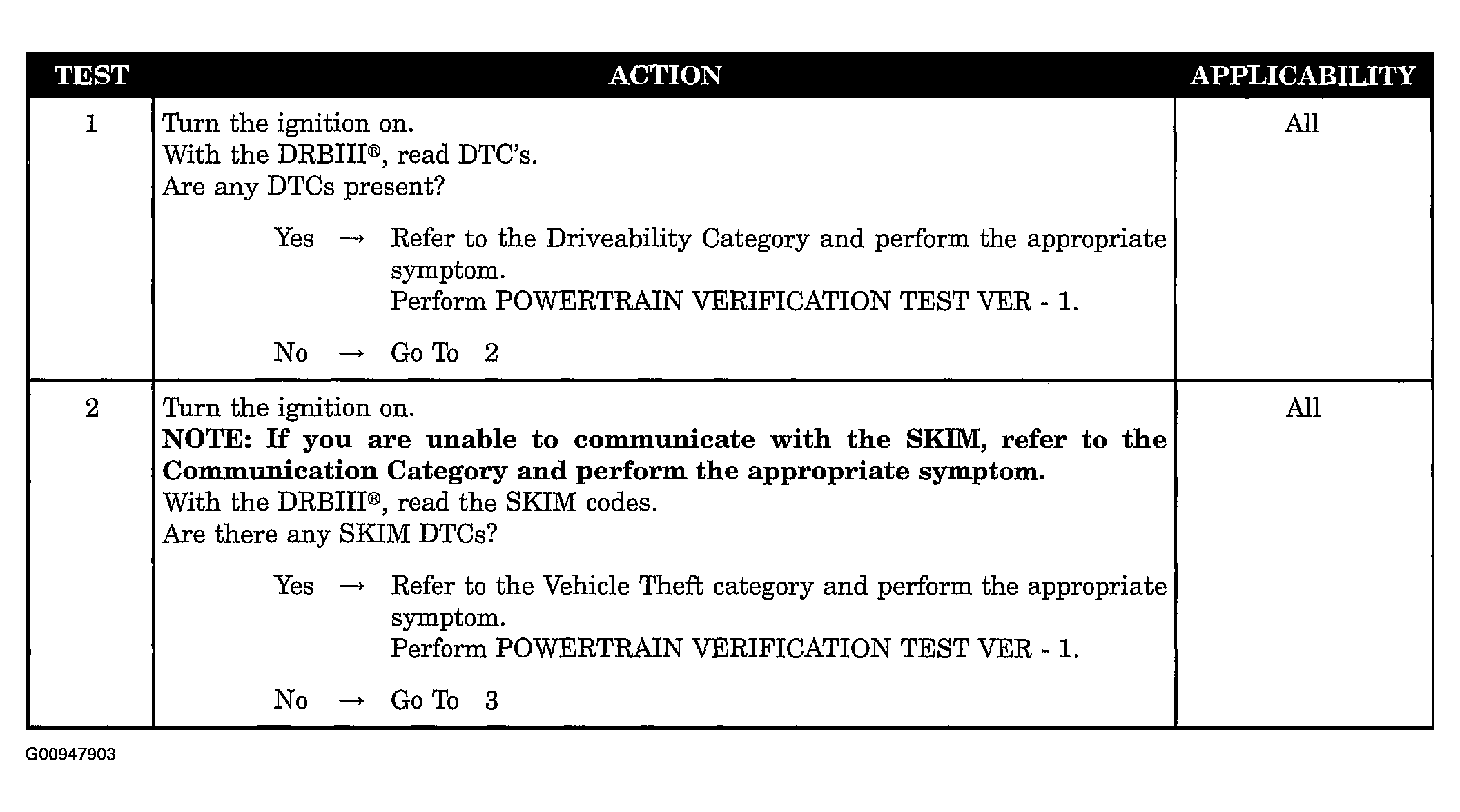

    Fig 1: Diagnostic Chart - Start And Stall Condition (1 Of 3)
    G00947903Courtesy of DAIMLERCHRYSLER CORP.

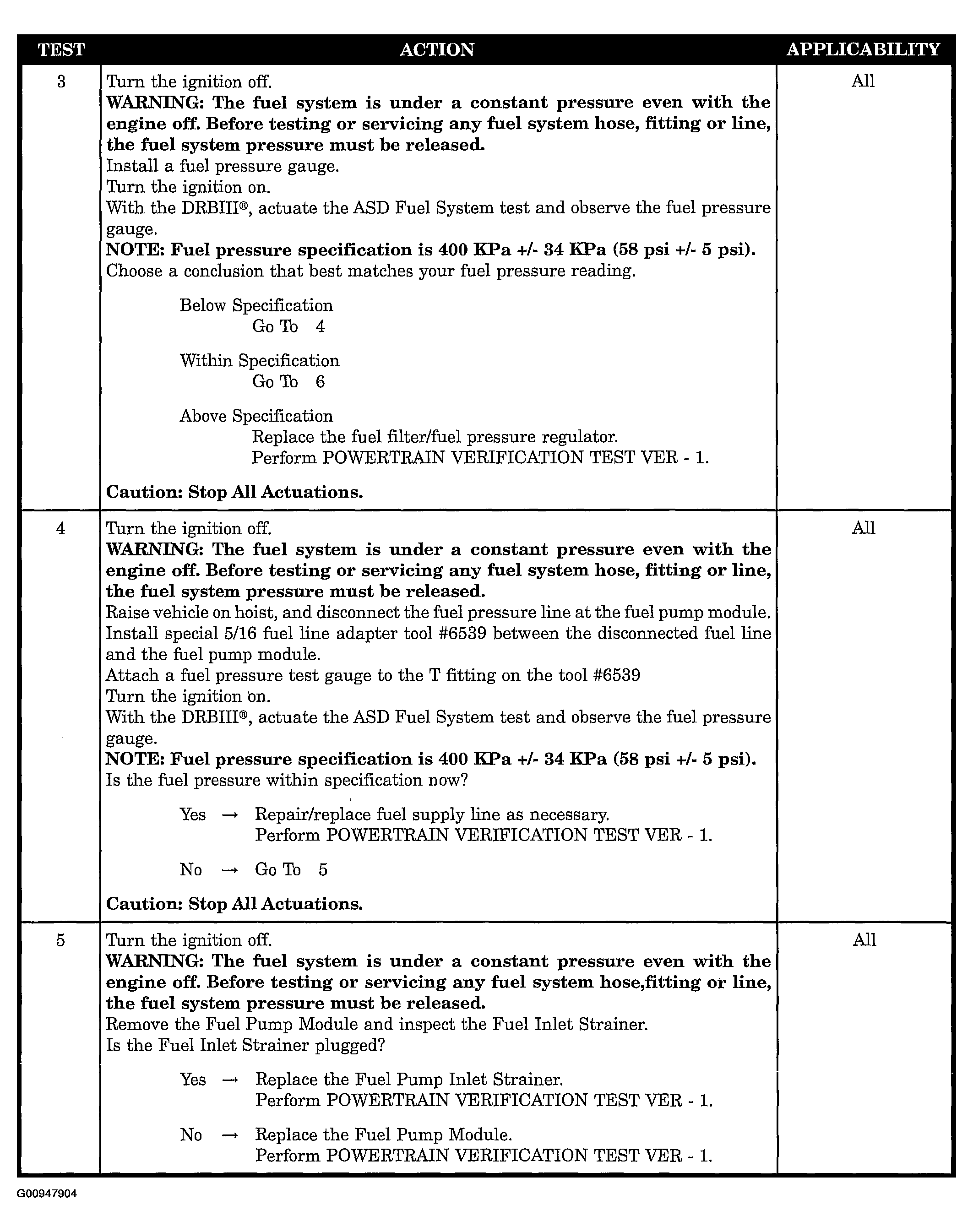

    Fig 2: Diagnostic Chart - Start And Stall Condition (2 Of 3)
    G00947904Courtesy of DAIMLERCHRYSLER CORP.

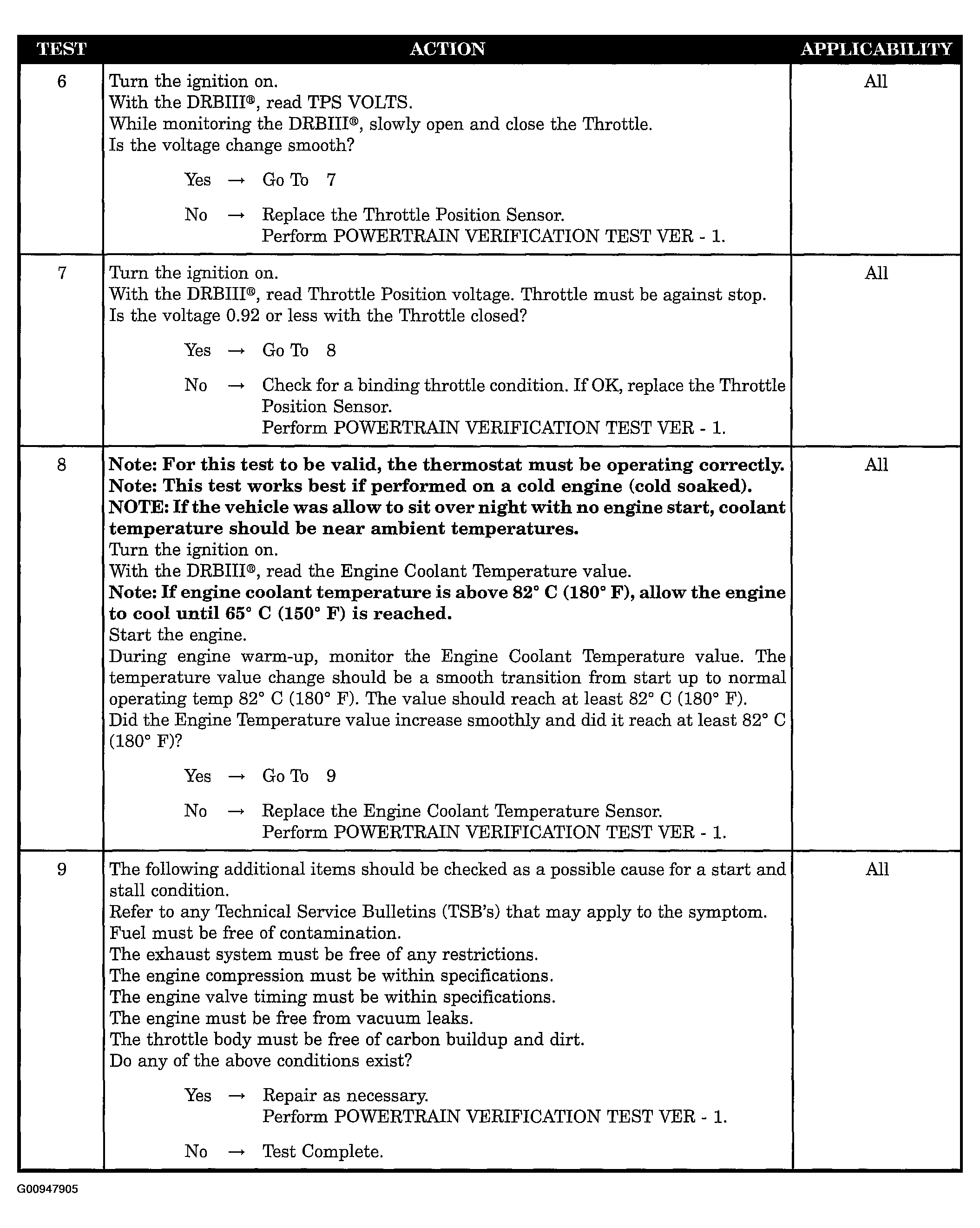

    Fig 3: Diagnostic Chart - Start And Stall Condition (3 Of 3)
    G00947905Courtesy of DAIMLERCHRYSLER CORP.
