Output Speed Sensor: Removal

Disconnect battery negative cable.
Raise vehicle on hoist.
Disconnect output speed sensor connector. See Figure .
Unscrew and remove output speed sensor. See Fig 1 .
Inspect speed sensor O-ring and replace if necessary. See Fig 2 .

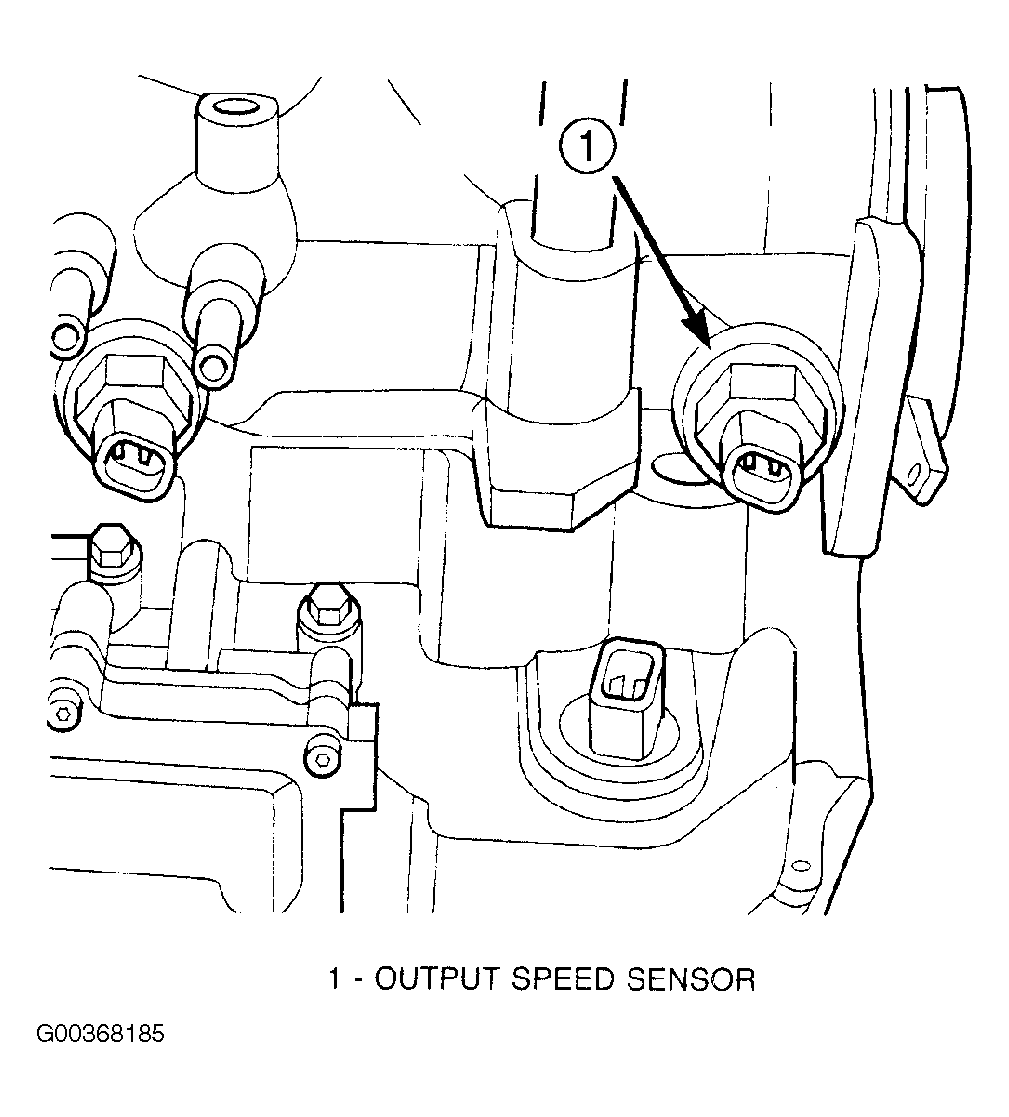

Fig 1: Removing Output Speed Sensor

G00368185

Courtesy of CHRYSLER CORP.

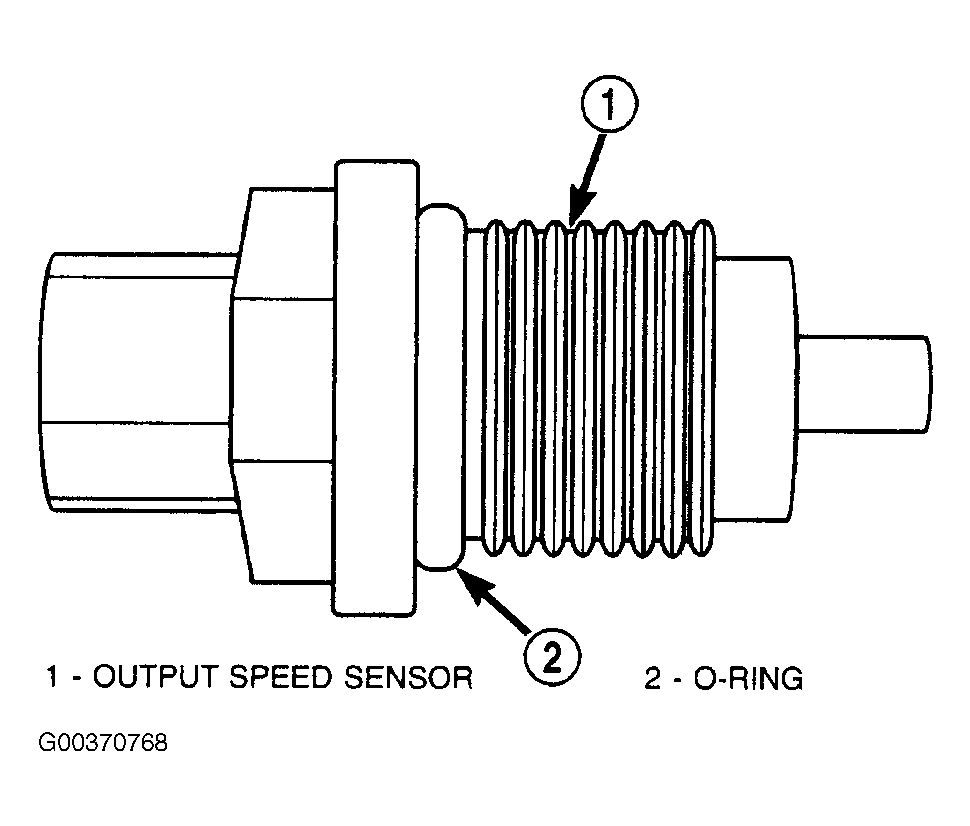

Fig 2: Inspecting Output Speed Sensor O-Ring

G00370768

Courtesy of CHRYSLER CORP.
