Transmission Range Sensor: Installation

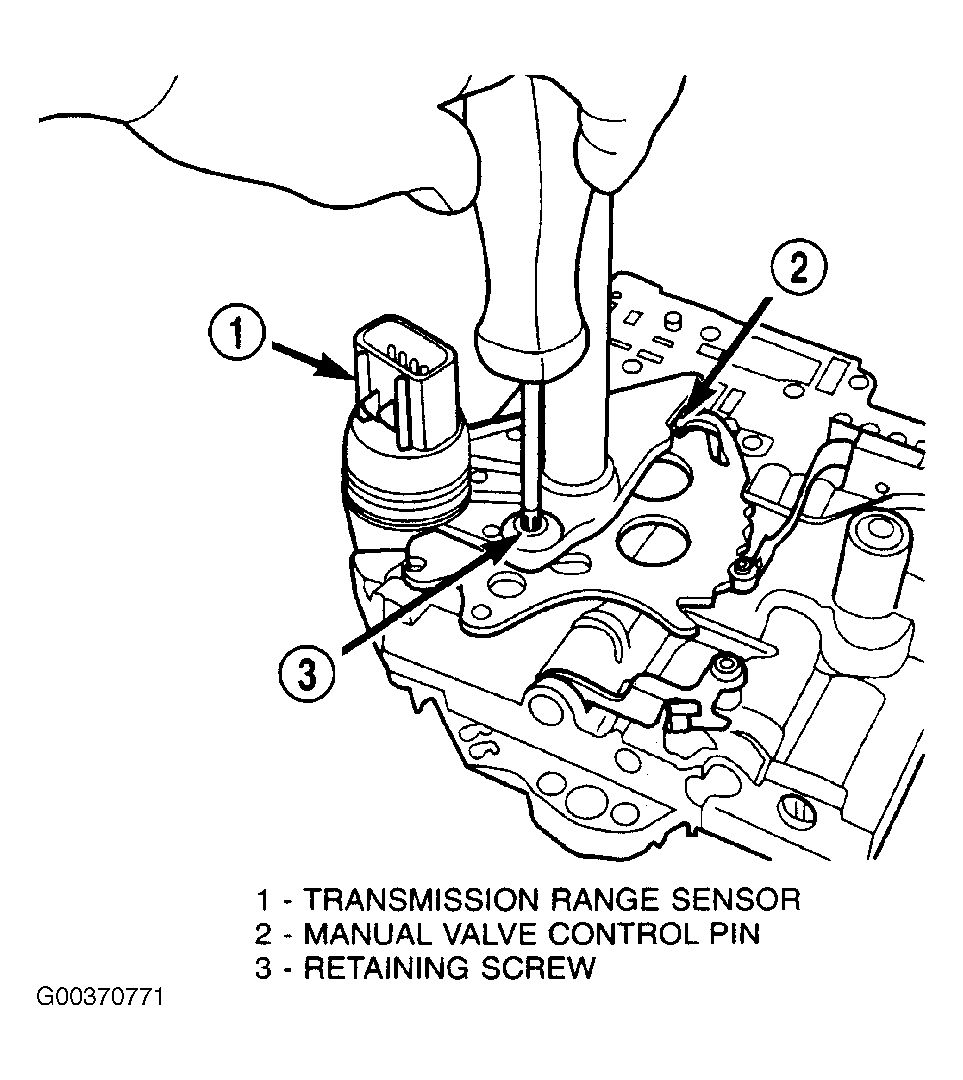

  1. Install Transmission Range Sensor (TRS) to the valve body and torque retaining screw to 45 INCH Lbs. (5 N.m). See Figure .
  2. Install valve body to transaxle. See VALVE BODY  .
