EGR Solenoid Connector End View

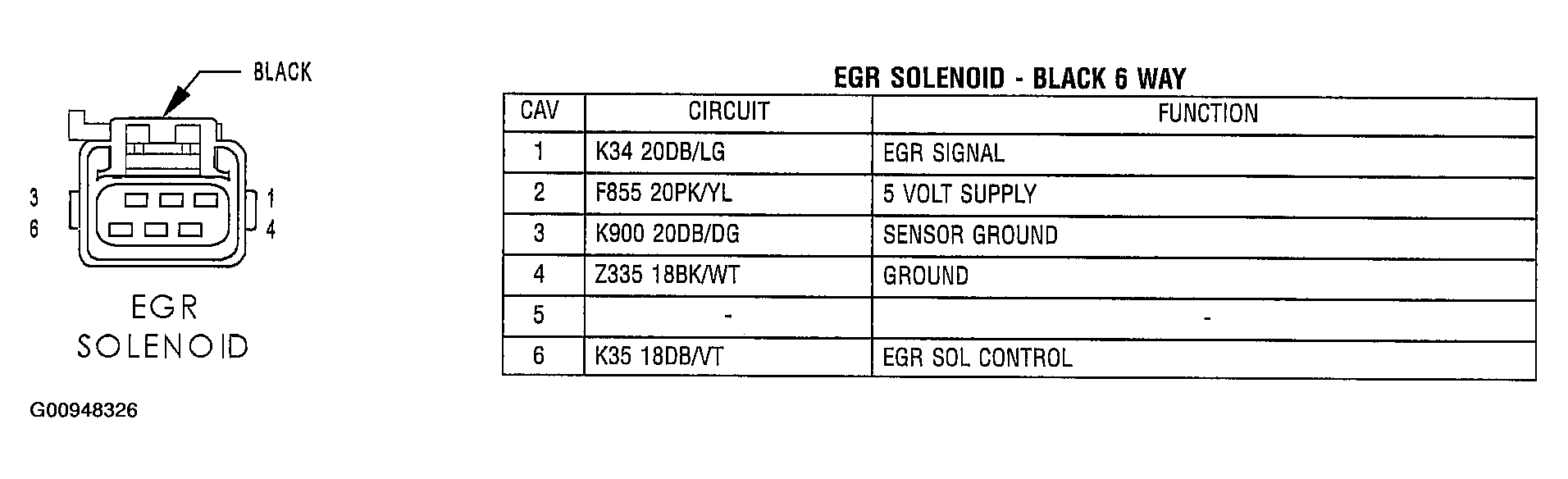

Fig 1: Identifying EGR Solenoid - Black 6 Way Connector
G00948326Courtesy of DAIMLERCHRYSLER CORP.
