Liftgate Ajar Circuit Open

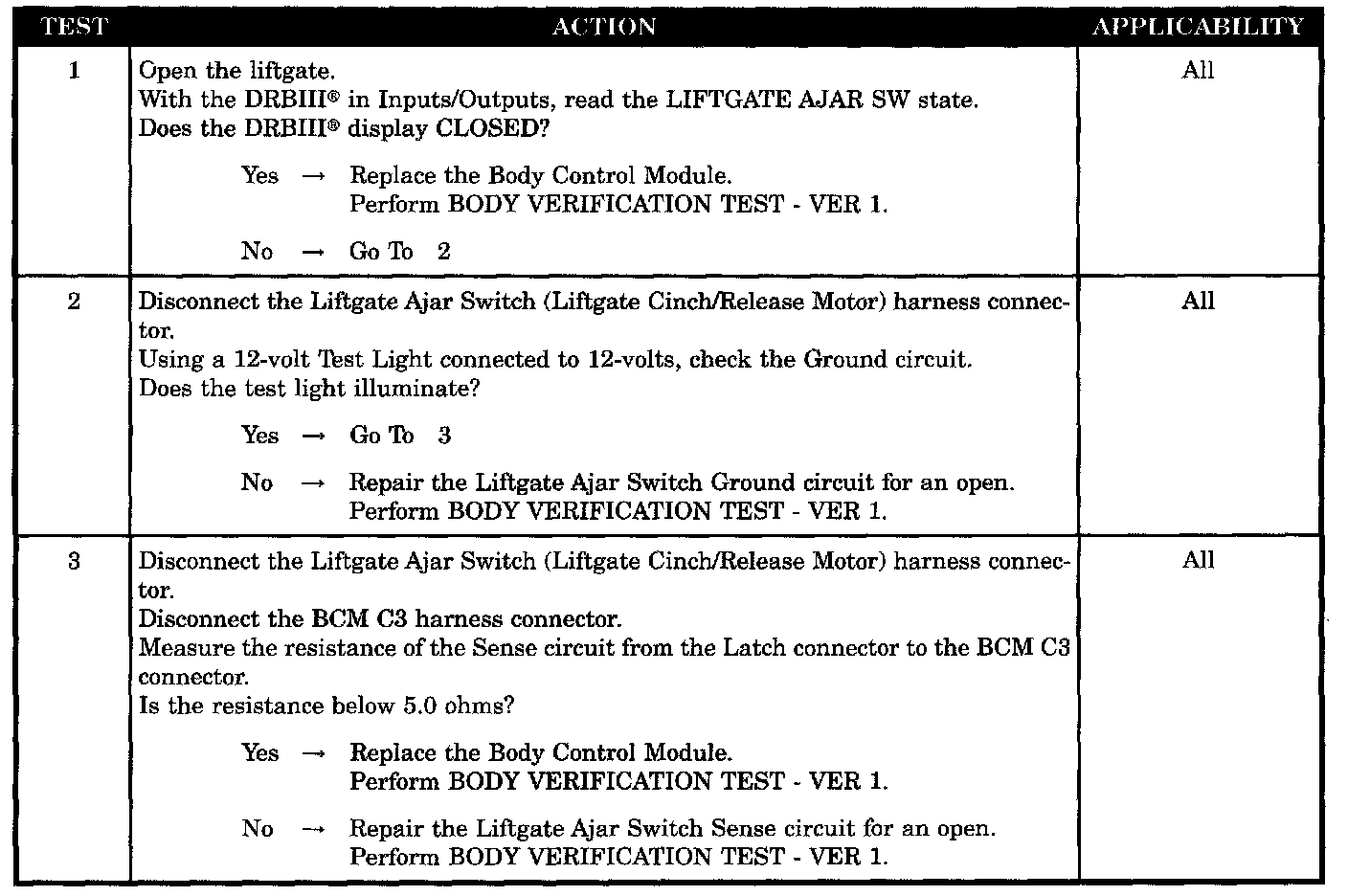

Test 1 - 3:






SYMPTOM
LIFTGATE AJAR CIRCUIT OPEN

POSSIBLE CAUSES
- BCM not responding to input
- Ground circuit open
- Liftgate ajar switch sense circuit open
- Body control module
